Name: 304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh
Brand: FUHANG
Price: 1 USD

Home > Other Wire Mesh >

304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh

Categories	Stainless Steel Wire Mesh
Brand Name:	FUHANG
Model Number:	321 Stainless Steel Wire Mesh
Certification:	ISO9001
Place of Origin:	China
MOQ:	1 square meter
Price:	USD $0.5-$5 Square Meter
Payment Terms:	L/C, T/T
Supply Ability:	10000 Square Meter Per Month
Delivery Time:	5-8 days
Packaging Details:	paper tube inside+ wodden box +plastic bag
Product name:	Stainless Steel Square Wire Mesh
Application:	Filters
Weave style:	Plain/Twill Weave
Type:	Weave Wire Mesh
Technique:	Woven
Material:	Stainless Steel Wire
Wire diameter:	0.02-2mm
Width:	0.5m-3m or customized
Usage:	oil,space flight,filter,chmical industry
Length:	30m/roll 50m/roll or as required
Feature:	Acid-resisting,corrosion resistent etc.,Anti-corrosion,alkali-resisting etc
Color:	steel
Hole shape:	Square Hole
Mesh:	1-635mesh
Advantage:	Superior wire,standard mesh,factory direct sale,competitive price
Mesh count:	1-400mesh
Sample:	free
Packing:	paper tube inside+ wodden box +plastic bag +

Contact Now

Add to Cart

Company Info.

Anping County Fuhang Wire Mesh Products Co., Limited

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

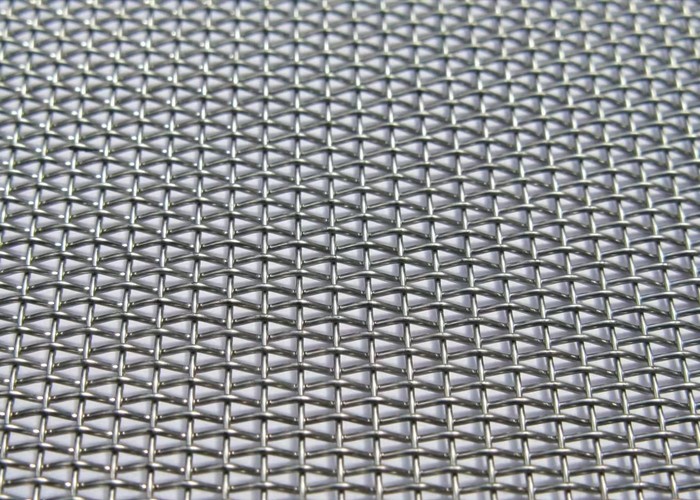

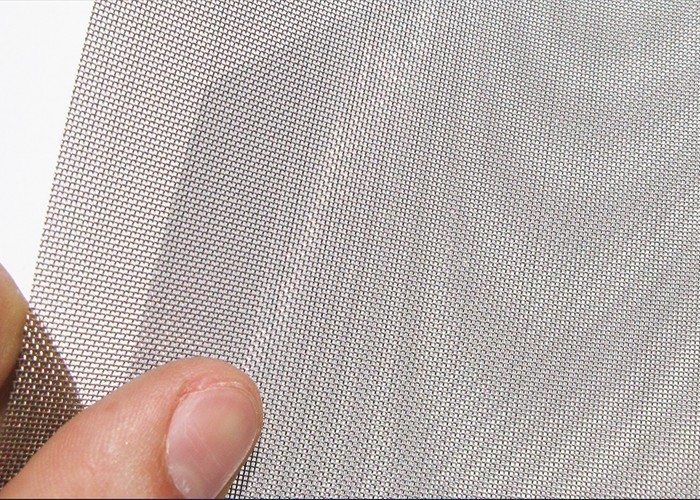

304 316 Square Anticorrosion Stainless Steel Woven Wire Mesh

304 Stainless Steel Woven Wire Mesh 316 Stainless Steel Square Wire Mesh

Stainless Steel Woven Wire Mesh, also name stainless steel square wire mesh, is manufactured by weaving longitudinal and transverse wires together. Commercial / Industrial grade mesh also known as wire cloth and gauze is extensively used for:

Industry for filtration, screening / sieving and food pressing/ drying

Industry for Hollander Mesh & Bolting Cloth

Architecture for function and appearance both internally and externally

Bushfire Mesh part of your solution to bushfire protection

Window & Door Mesh part of your solution for stopping insects, intruders & embers

Stainless steel square wire mesh is a commonly used stainless steel wire mesh products, the main characteristic is the mesh count in width and length are at the same, and hole shape is square shape. Stainless steel square wire mesh is made of high quality stainless steel wire and woven by wire mesh weaving machine in different weaving ways. For the low mesh count, normally produced by plain woven, and for high mesh count normally by twilled woven.We usually call the stainless steel wire mesh over 200 mesh count as fine stainless steel mesh.

Stainless steel square wire mesh is uniform and flat surface, and has good resistance to acid, alkali and high temperature, also with good strength and wear resistance. This make it to be an important material to filter the gas, liquid or other media separation. It is widely used in petroleum, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, mining, medicine, food and other industries.

The Main Parameters and Common Specifications of Stainless Steel Square Wire Mesh

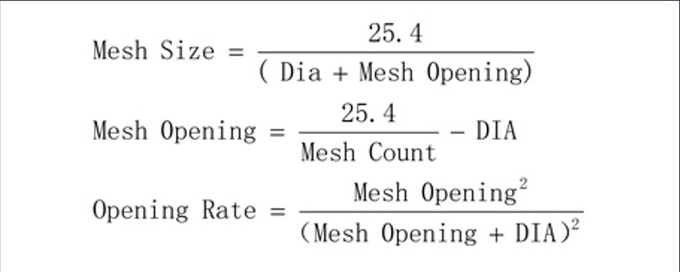

Stainless steel square wire mesh normally has 3 basic parameter which are wire diameter, mesh opening size and mesh count(mesh holes numbers per inch), the third parameter will be curtained once the other two parameters are decided.

The main woven type of stainless steel square wire mesh are plain woven and twilled woven.

Plain Woven Twilled Woven

The main material of stainless steel wire mesh is SS304,304L,316 and 316L, the material can follow the standard of ASTM, GB/T, DN or JIS. And the ASTM standard is commonly used if there’s no other special requirement.

Except the stainless steel material, Fuhang Wire Mesh can also produce the mesh in iron, aluminum, brass, copper, nickel or other material according to the requirements.

Following is the common specifications of stainless steel plain weave square wire mesh & stainless steel twill weave square wire mesh.

Common Specifcations for Stainless Steel Square Mesh ( Plain Weave )
Mesh/Inch	Wire Diameter(mm)	Opening Size(mm)	Open Area(%)	Weight(kg/m2)
1	2.03	23.37	84.65	2.06
2	1.6	11.1	76.39	2.56
3	1.37	7.09	70.23	2.82
4	1.6	4.75	55.96	5.12
4	1.19	5.16	66.03	2.83
5	1.04	4.04	63.25	2.70
6	0.89	3.35	62.42	2.38
8	0.71	2.46	60.22	2.02
10	0.64	1.91	56.10	2.05
10	0.51	2.03	63.87	1.30
12	0.58	1.52	52.39	2.02
12	0.51	1.6	57.50	1.56
14	0.58	1.22	45.94	2.35
14	0.51	1.3	51.59	1.82
16	0.46	1.13	50.51	1.69
18	0.5	0.91	41.65	2.25
20	0.4	0.87	46.93	1.60
20	0.45	0.82	41.69	2.03
24	0.35	0.71	44.86	1.47
26	0.3	0.68	48.15	1.17
28	0.3	0.61	44.93	1.26
30	0.25	0.6	49.83	0.94
40	0.2	0.44	47.27	0.80
50	0.18	0.33	41.87	0.81
60	0.16	0.26	38.32	0.77
60	0.19	0.23	29.99	1.08
70	0.12	0.24	44.44	0.50
80	0.12	0.2	39.06	0.58
80	0.13	0.19	35.25	0.68
100	0.1	0.15	36.00	0.50
100	0.11	0.14	31.36	0.61
104	0.06	0.18	56.25	0.19
120	0.09	0.12	32.65	0.49
120	0.058	0.15	52.01	0.20
120	0.08	0.13	38.32	0.38
140	0.07	0.11	37.35	0.34
145	0.045	0.13	55.18	0.15
150	0.06	0.11	41.87	0.27
150	0.05	0.12	49.83	0.19
160	0.05	0.11	47.27	0.20
160	0.04	0.12	56.25	0.13
160	0.035	0.12	59.94	0.10
180	0.05	0.09	41.33	0.23
180	0.04	0.1	51.02	0.14
200	0.05	0.08	37.87	0.25
200	0.04	0.09	47.93	0.16
220	0.05	0.07	34.03	0.28
230	0.035	0.08	48.39	0.14
230	0.03	0.08	52.89	0.10
250	0.04	0.06	36.00	0.20
250	0.035	0.07	44.44	0.15
270	0.035	0.06	39.89	0.17
270	0.03	0.06	44.44	0.12
280	0.035	0.06	39.89	0.17
300	0.03	0.05	39.06	0.14
325	0.025	0.05	44.44	0.10
325	0.028	0.05	41.09	0.13
325	0.03	0.05	39.06	0.15
350	0.022	0.05	48.23	0.08
370	0.022	0.05	48.23	0.09
400	0.022	0.04	41.62	0.10
420	0.022	0.04	41.62	0.10
450	0.02	0.04	44.44	0.09

Common Specifcations for Stainless Steel Square Mesh (Twill Weave )
Mesh/Inch	Wire Diameter(mm)	Opening Size(mm)	Open Area(%)	Weight(kg/m2)
150	0.07	0.0993	34.40	0.37
165	0.058	0.0959	38.83	0.28
180	0.058	0.0831	34.69	0.30
200	0.058	0.069	29.52	0.34
225	0.05	0.069	33.62	0.28
235	0.045	0.0631	34.07	0.24
250	0.04	0.0616	36.76	0.20
270	0.04	0.0541	33.05	0.22
280	0.04	0.0507	31.25	0.22
300	0.035	0.0497	34.43	0.18
300	0.038	0.0467	30.40	0.22
300	0.04	0.0447	27.85	0.24
315	0.035	0.0456	32.01	0.19
325	0.035	0.0432	30.52	0.20
350	0.035	0.0376	26.82	0.21
350	0.03	0.0426	34.43	0.16
363	0.03	0.04	32.65	0.16
385	0.03	0.0377	31.01	0.17
400	0.025	0.0385	36.76	0.13
400	0.028	0.0355	31.25	0.16
400	0.03	0.0335	27.83	0.18
420	0.03	0.0302	25.17	0.19
450	0.025	0.0314	31.00	0.14
500	0.025	0.0258	25.79	0.16
510	0.025	0.0248	24.80	0.16
530	0.024	0.0239	24.90	0.15
635	0.018	0.022	30.25	0.10
635	0.02	0.02	25.00	0.13
800	0.016	0.0164	25.62	0.10
