304Twilled Weave Stainless Steel Wire Mesh 316 Stainless Steel Wire Mesh Filter

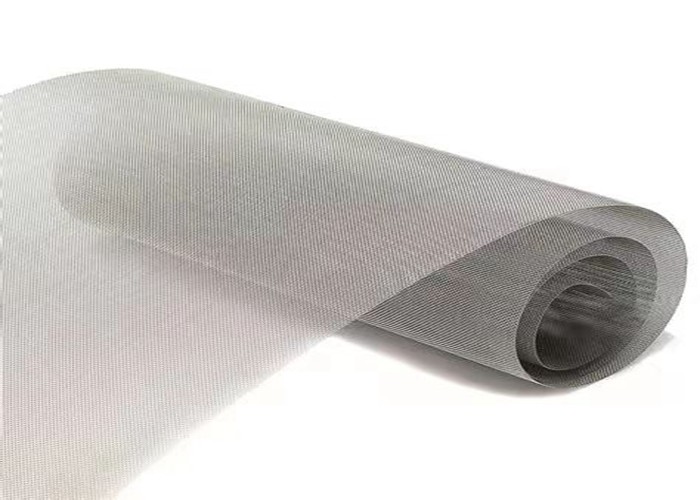

Twilled Weave Stainless Steel Wire Mesh

Twilled weave stainless steel wire mesh/cloth is producing square openings, it can be made from larger diameter wire than plain weave wire mesh. Twilled weave is the most commonly wire mesh used in the filtration and separation industries. Square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .

For twilled weave,wire diameters of warp and weft are the same size, and each warp wire passes alternately over two and then under two weft wire, and each weft wire passes over/under two warp wire.Twilled weave means Wire Cloth in which each warp wire and each shute wire passes successively over and under the two adjacent wires -- in both the warp and shute directions. This over and under movement is shifted one wire with each pass of the shuttle. This pattern permits the weaving of heavier wires in varying mesh.

Fuhang Company can offer twilled weave wire mesh in standard specifications, apertures range from 0.025 mm to 0.49 mm, while wire diameters range from 0.015 mm to 0.3 mm, and manufacture width is up to 2 m. The wire mesh standard materials are grade 304 and grade 316 stainless steel.

Twilled weave stainless steel wire mesh materials

Twilled weave wire mesh is available in three different series of wire materials:

Stainless steel 200 series : Grade 201, Grade 202

Stainless steel T 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321

Stainless steel 400 series : Grade 410, Grade 420, Grade 430

Benefits

Square hole or rectangular hole

High screening precision

Small opening size > 0.025 mm

Flexible, strength, and durability

Good corrosion-resistance

Low hardness and easy to clean

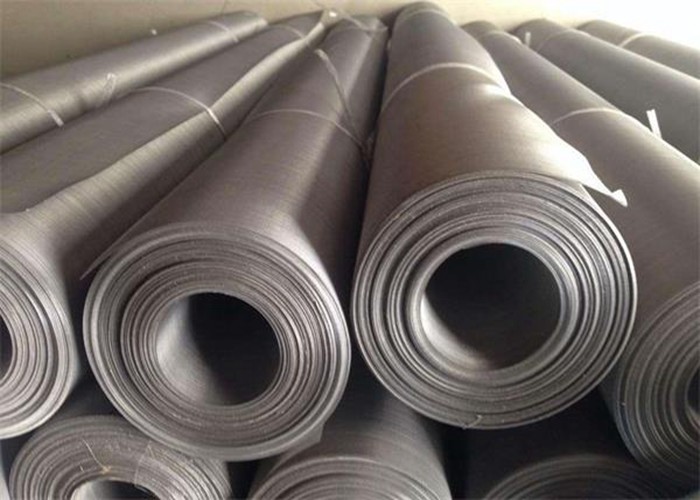

Twilled Weave stainless steel wire mesh rolls

Roll length: standard size is 30 m in length. And also can cut to requested size as customers’ requirement.

Roll width 0.914 m, 1 m, 1.22 m, 1.5 m to 2 m

Other rolls size on request

Application

Usage of twilled weave stainless steel wire mesh includes:

In the water, oil & gas industries, for the raw material of filter element.

In the petrochemical & chemical industries, for test sieve and structured packing.

When ordering or requesting a quote for twilled weave woven wire cloth, please specify:

Number of length 30 m for 1 m wide rolls or size required

Mesh eg. 325 mesh

Diameter of wire eg. 0.035 mm

Aperture eg. 0.043 mm

Material eg. Grade 316 (1.4401)

Note: Special size and specifications can be made according to customers requires.
