High Performance 2.4ghz Wireless Barcode Scanner 80m-100m Open Yard

Categories Wireless Barcode Scanner
Brand Name: Luckydoor
Model Number: K-216R
Place of Origin: Made in China
MOQ: 1pc
Payment Terms: T/T, Western Union, MoneyGram
Certification: CE FCC Rohs
Stock: Available
Warranty: 12 months
Battery: 2200mAh
Scan type: Laser
Input: DC5V
Wireless range: 80-100m open yard
Storage: Max 35000 barcodes
CO: China
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

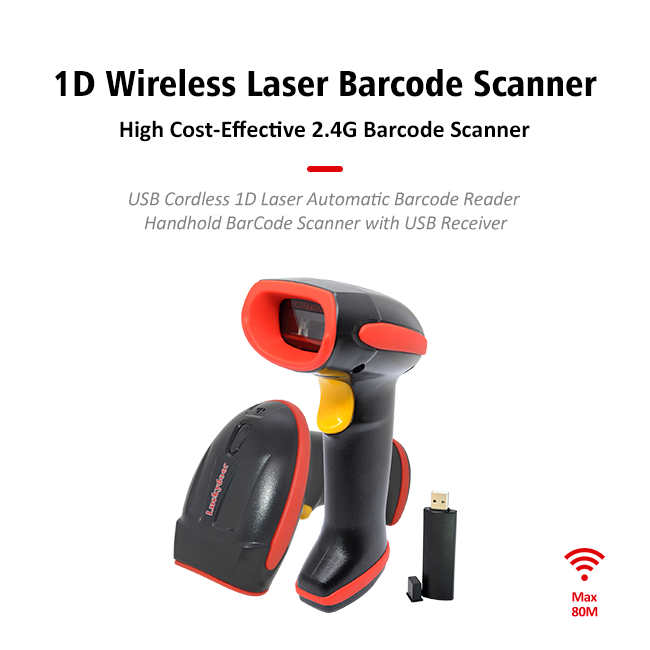

High Performance 2.4ghz Wireless Barcode Scanner 80m-100m Open Yard


High performance 2.4ghz wireless barcode scanner from luckydoor the barcode scanner manufacturer


Product Description:


There are 3 kinds of working mode for this wireless laser barcode scanner, inventory mode which allow the user to scan barcodes without area limited , instant and storage mode which can upload the data immediately in transmit distance and storage the barcodes once out of distance ,wired mode which allow the user can connect the scanner to computer through usb cable and working as wired barcode scanner ,it is a highly popular Wireless barcode scanner for warehouse and logistic.


Product Specification:


Performance Parameters
Light Sources617nm laser (Safe visible laser diode)

Supported

Symbologies

UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII,

China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5,

Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN,

Code 32(Italian pharm code), Code 39 extended, ITF-14, RSS 14, etc.

Scan TypeSingle Laser
Scan Speed≥150 times/s
Scan MethodManual/Continuous/Automatic Scanning
Scan AngleYaw 55°, Rotation 30°, Pitch 65°
Precision4mil (0.1mm)
Depth of scan field10-250mm (0.33mm, PCS90%)
Error RateLess than 1/5million
InterfaceUSB-HID
Operating Frequency2.4G
Transmission Distance50-80M (Open Yard)
Storage Ability512000 Bytes
Pairing ModelOne to one
Physical Parameters
Dimensions83mm*70mm*172mm
Weight152.2g
MaterialABS+PC, flameresistant material
Cable Length1.2m
Environmental Parameters
Operating Temperature-20℃ ~ 40℃
Storage Temperature-40℃ ~ 70℃
Relative Humidity0%~85% RH (Non-condensing)
Drop/Shock ResistanceWithstands multiple times 1.5 meters drops to concrete
Electrical Parameters
VoltageDC5V±10%
Current85mA (Operating); 150uA (Standy Current)
Lithium battery2200mA

Product Pictures:



Product Features:

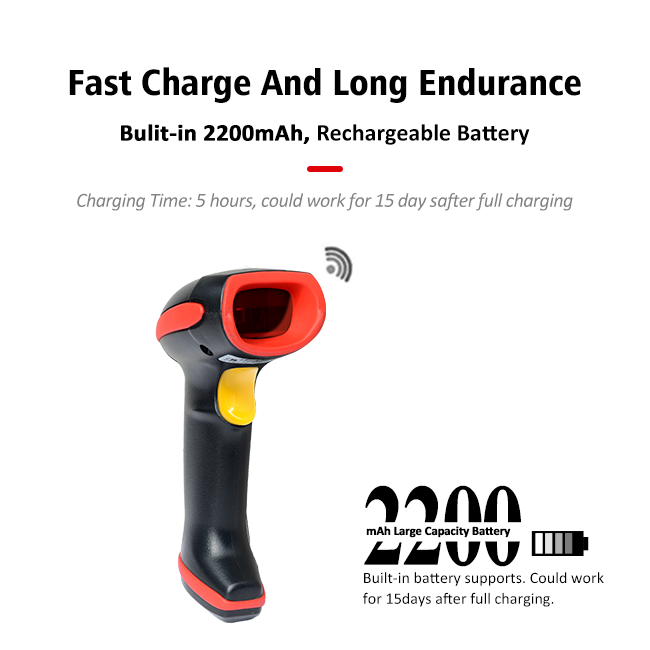

Large battery 2200mAh support over 24 hours continuous work

2.4Ghz wireless technology

Memory storage up to 35000 barcodes (EAN13)

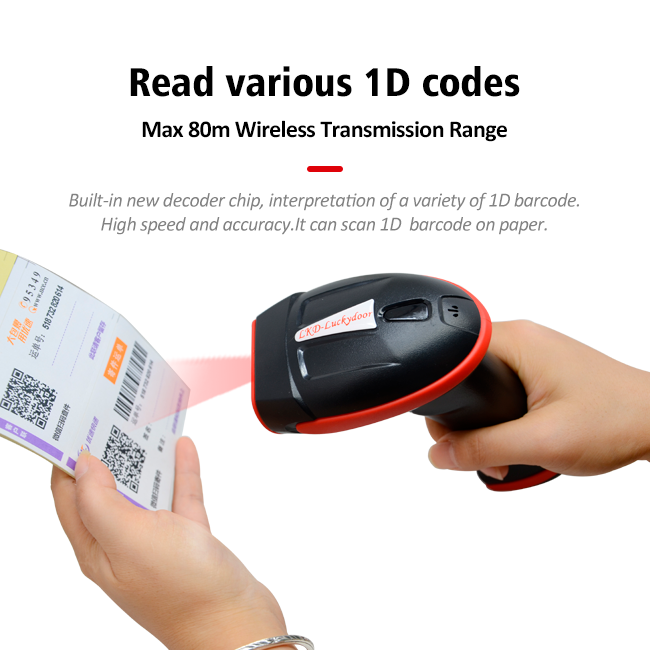

Laser scan technology allow fast and high resolution decoding performance

Support USB+2.4Ghz

Compatible with Windows ,Android and Linux Operating system


FAQ:


1,How does a wireless barcode scanner work?

The scanner read the barcodes and send the data to usb dongle which already paired with the scanner ,through wireless method ,here we use 2.4Ghz wireless radio ,and the usb dongle upload the data to host through usb port


2,Do barcode scanners need software?

Barcode scanner does not require any special software or drivers to operate normally. They will simulate the keyboard and be recognized by the computer as universal input device.


3,can we use our logo for this wireless barcode scanner ?

Yes ,OEM service for this item is available and expecting your contact for further discuss


4,What is the capacity of the battery ?

We use 2200mAh battery for this 1d wireless barcode scanner and can working over 24hours (continuous mode)


5,Can this scanner connect to mobile phone through bluetooth ?

No, this is 2.4G wireless scanner without bluetooth function ,can’t pair with mobile devices like phone ,tablet


Cheap High Performance 2.4ghz Wireless Barcode Scanner 80m-100m Open Yard for sale
