Wireless Barcode Scanner 1D 2D QR with USB Dongle ,2.4Ghz Cordless Barcode Scanner For Warehouse
Product Description:
This Wireless barcode scanner is design for warehouse inventory management , compare with wired barcode scanner ,this wireless one allow operators can go anywhere in the warehouse to pick barcodes and upload to host ,increased the working efficiency and decreased the errors , it is an idea wireless barcode reader for warehouse.
Product Features:
• 2200mAh large battery support around 20000 scan per charge
• Wired and wireless working mode both available
• Data will automatic save in the scanner if out of transmit range
• Max store 35000 barcodes (EAN13)
• Working with Android and IOS mobile devices
• Read both 1D and 2D barcodes from paper ,label and mobile displays
Product Specification:
| Light Sources | 617nm LED Aimer, White LED | |||||
| Supported Symbologies | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14,ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Plessey, Matrix 2 of 5. 2D: QR Code, Data Matrix, PDF417, Micor PDF417, Aztec, Maxicode, HanXin code. | |||||
| Resolution | 640*480 | |||||
| Scan Method | Manual/Continuous/Automatic Scanning | |||||
| Scan angle | Yaw ±55°,Rotation 360°,Pitch ±55° | |||||
| Precision | ≥5mil | |||||
| Contrast | ≥20% | |||||
| Depth of scan field | EAN13 50-200MM(13MIL); QR 25-240MM(20MIL); PDF147 30-130MM(6.67MIL). | |||||
| Error Rate | Less than 1/5million | |||||
| Interface | USB-HID | |||||
| Wireless Communication | Pairing dedicated receiver: 2.4G communication Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0 | |||||
| Wireless transmission distance | 30-50 meters (open distance) | |||||
| Storage Mode | Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored.Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. | |||||
| Pairing Mode | One to One: One Scanning Gun Pairs One Receiver One scanner paired with a Bluetooth mobile device | |||||
| Electrical Parameters | ||||||
| Voltage | DC5V±5% | |||||
| Operating Current | When not scanning code ≥26mA; when scanning code ≥280mA | |||||
| Standby Current | 0mA (Standby is to cut off battery power) | |||||
| Lithium battery | 2200mA | |||||
| Battery Working Time | 7h | |||||
| Charging Time | 5h | |||||
| Charging Model | Square USB charging cable, plug straight charge | |||||
| Physical Parameters | ||||||
| Dimensions | 102mm*71mm*177mm | |||||
| Weight | 223.9g | |||||
| Material | ABS+PC | |||||
| Cable Length | 1.2m | |||||
| Environmental Parameters | ||||||
| Operating Temperature | -20℃~+50℃ | |||||
| Storage Temperature | -40℃~+70℃ | |||||
| Relative Humidity | 5%~95% RH(Non-condensing) | |||||
| Ambient lighting | 0~100000LUX | |||||
| Drop/Shock Resistance | Withstands multiple times 3 meters drops to concrete | |||||

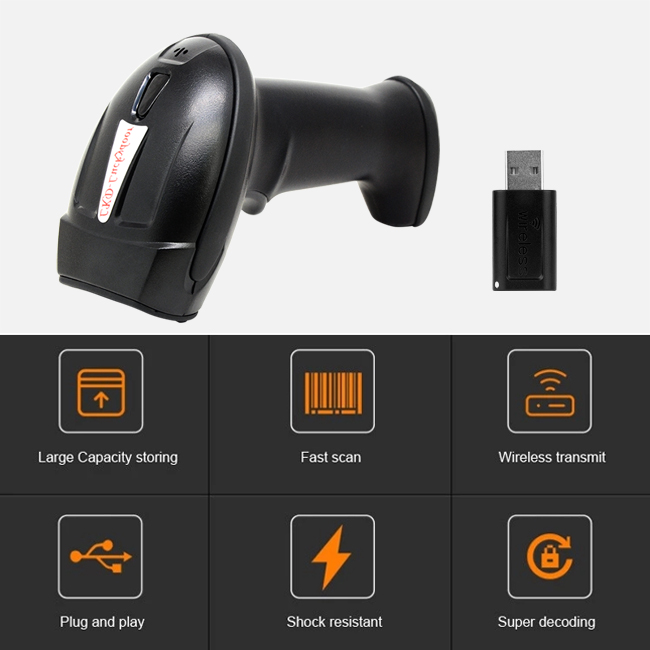

Product Pictures:
Product Application:
• Warehouse inventory management
• Warehouse check in and out
• Picking and packing
• Shipping and receiving
FAQ :
1, What is the capacity of the battery for this barcode scanner ?
We use 2200mAh large capacity battery
2, What is the battery life ?
It is around 500 times charge and discharge
3,How long can this wireless barcode reader work ?
It can work over 8 hours after full charge
|
