PSH 2 Level Chain Drive Puzzle Car Parking System 4kW 2000kg Loading

PUZZLE PARKING SYSTEM (BACK CANTILEVER)

Characteristics

• Motor driven and steel rope lifting system.
• Simple structure, high safety, no front posts to facilitate the entry of the car on platform.
• Dependent & space saving with 2 vertical levels.
• Back cross bars connected to the back posts to carry the load on platforms.
• Working principle: upper platforms can only move vertically while lower platforms can only slide horizontally.
• PLC automatic control system. Push button, touch screen and IC for convenient parking and retrieving process.
• Safety hook device to prevent falling, collision and overload.
• Photo electric sensors to check and stop the unit when cars parked improperly or when persons cross in by accident.
• Emergency stop push button mounted on operation panel as well.
• Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

Technical Parameters

Item	Parameters
Product name	2 Level Chain Drive Puzzle Car Parking System
Drive Mode	chain drive
Levels of system	2
Size of car (L*W*H)	5065*1860*1467 mm
Car Weight	1800kg/2350
Operation Mode	Auto IC card/ Manual button
Lifting motor power	2.2kw
Lifting speed	4M/MIN
Sliding motor power	0.2KW
Sliding speed	4M/MIN
Control Method	Touch screen / Push button or IC card
Parking way	Forward in, Back out
Electricity	3 phases 5 wires, 380V, 50HZ
Safety devices	Safety lock device by electromagnetic and anti-falling protection device.
Malfunction indication	Computer malfunction diagnosis, human-computer communication information display
Parts appearance treatment	Hot spray galvanized treatment and high-grade anti-corrosion painting
Controller	PLC, with control monitoring, IC card, manual and operative panel;
Way of parking in and out	Forwarding in and forwarding out;

Main Structure

• Steel structure
• Car Pallet
• Lifting system
• Sliding system
• Hydraulic system
• PLC control system
• Safe-guard system

Drawing

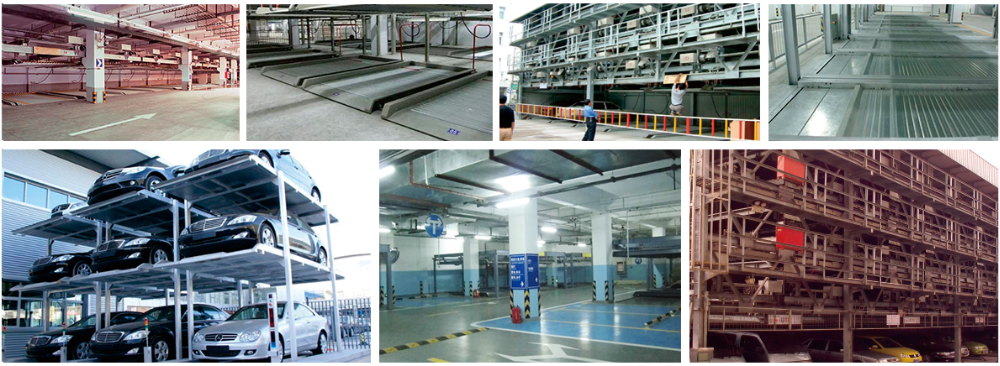

Project cases

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
