Name: PSH5 5 Levels Hydraulic Puzzle Car Parking System 25mmin AntiCrashing
Brand: ChangYue
Price: 1 USD

PSH5 5 Levels Hydraulic Puzzle Car Parking System 25m/min Anti-Crashing

Categories	Puzzle Car Parking System
Brand Name:	ChangYue
Model Number:	PSH5
Certification:	CE ISO9001
Place of Origin:	Shanghai, China
MOQ:	5 piece
Price:	to be negotiated
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 Unit per month
Delivery Time:	30-60 days
Packaging Details:	Standard export packing
Type:	PSH 5 levels mechanical puzzle parking system
Material:	Steel
Dive mode:	Hydraulic
Car size (LxWxH):	500018502050(SUV)/1550(sedan)mm
Loading Capacity:	2000kg/2500kg
Motor power:	11kW
Lifting speed::	15-25m/min
Sliding motor power:	0.2kW
Sliding speed:	8m/min
Operation Mode:	Touch screen / Push button or IC card
Power supply:	380V/50HZ 3 Phase 5 wires

Contact Now

Add to Cart

Company Info.

Shanghai Changyue Automation Machinery Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

PSH5 5 Levels Hydraulic Puzzle Car Parking System 25m/min Anti-Crashing

5 levels hydraulic puzzle car parking system

Work Principle

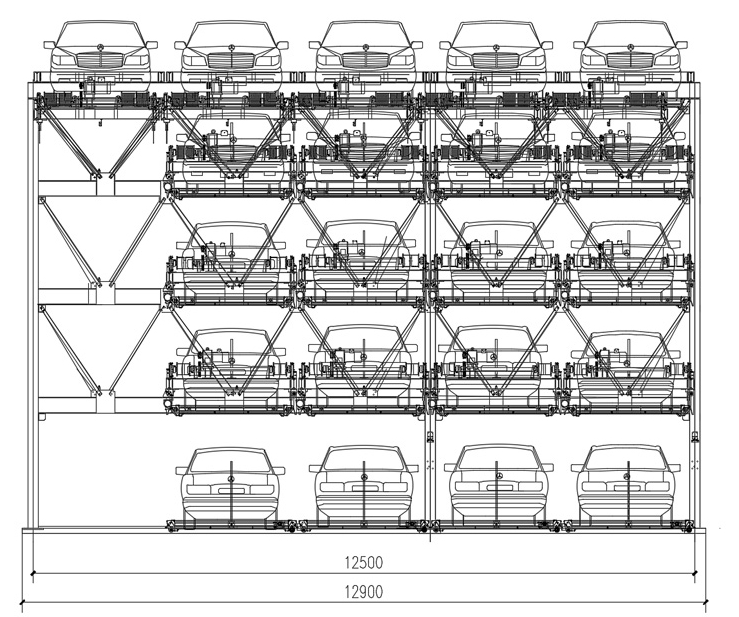

5 levels hydraulic puzzle car parking system is designed with 5 layers and multi-columns layout. Each layer is designed with a spare space as an exchanging space. All spaces can be auto-lifting freely except the spaces in the first layer and all the spaces can be auto-transverse moving except the spaces in the top layer. When a space needs to park or release a car, all spaces under the space will make a one space transverse moving to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in freely.

Characteristics

OEM service, it can be built according to the customer requirements and dimensions.
Complete safety protection functions
Simple and practical structure and appearance
Safe and fast operation
Low area coverage and high usage rate of space.
The layers and columns will be added to raise the number of cars according to the customer's requirements.
It may be designed with full-closed style to adjust the surrounding environment.
It operates steadily without noise and with fast operating speed and short parking and releasing time.
Multi-channels safety protection and series of safety protection devices for anti-dropping, anti-crashing and anti-overloading

Technical Parameters

Item	Parameters
Product name	5 levels hydraulic puzzle car parking system
Drive Mode	Hydraulic drive
Levels of system	5
Size of car (LWH)	500018501550mm 500018502050mm
Car Weight	2000kg/2500kg
Operation Mode	Auto IC card/ Manual button
Lifting motor power	11KW
Lifting speed	15-25M/MIN
Sliding motor power	0.2KW
Sliding speed	8M/MIN
Control Method	Touch screen / Push button or IC card
Parking way	Forward in, Back out
Electricity	3 phases 5 wires, 380V, 50HZ
Safety devices	Over-length, over-width, over height detection; car space with car or without car detection; wrong entrance detection Cylinder stroke protection, and anti-fall frame
Warning devices	Sound, light, electricity
Malfunction indication	Computer malfunction diagnosis, human-computer communication information display, liquid crystal display
Parts appearance treatment	Hot spray galvanized treatment and high-grade anti-corrosion painting
Controller	PLC, with control monitoring, IC card, manual and operative panel;
Way of parking in and out	Forwarding in and forwarding out;

Main Structure

Steel structure
Car Pallet
Lifting system
Sliding system
Hydraulic system
PLC control system
Safe-guard system

Product Tags:


*From:	Your email address is incorrect!
*To:	Shanghai Changyue Automation Machinery Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

PSH5 5 Levels Hydraulic Puzzle Car Parking System 25m/min Anti-Crashing

PSH5 5 Levels Hydraulic Puzzle Car Parking System 25m/min Anti-Crashing

PSH5 5 Levels Hydraulic Puzzle Car Parking System 25m/min Anti-Crashing

PSH5 Puzzle Car Parking System

5 levels Puzzle Car Parking System

25m/min car lift parking system

PSH5 5 Levels Hydraulic Puzzle Car Parking System 25m/min Anti-Crashing

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and products certified according to machinery directive 2006/42/EC.
