| Categories | Walk In Test Chamber |
|---|---|
| Brand Name: | GSKA |
| Model Number: | Walk In Test Chamber |
| Certification: | CE SGS ROHS UL CE |
| Place of Origin: | Dongguan China |
| MOQ: | Negotiate |
| Price: | Negotiate |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 Set / Sets per Month |
| Delivery Time: | 10-60days after confirmed payment or by contract stipulation |
| Packaging Details: | Export package |
| Humidity Range: | 20%~98% |
| Keyword: | Walk In Test Chamber |
| Viewing Window: | The Transparent Electro Thermal Hollow Toughened Glass |
| Heat Up Rate:: | About 3℃~5℃/min； Can Be Custom |
| Cooling Rate: | 0.7c~1.0c/Min (Average) |
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber |
| Brand: | GSKA |
| Test time: | 1~9999 minutes(arbitrary setting) |

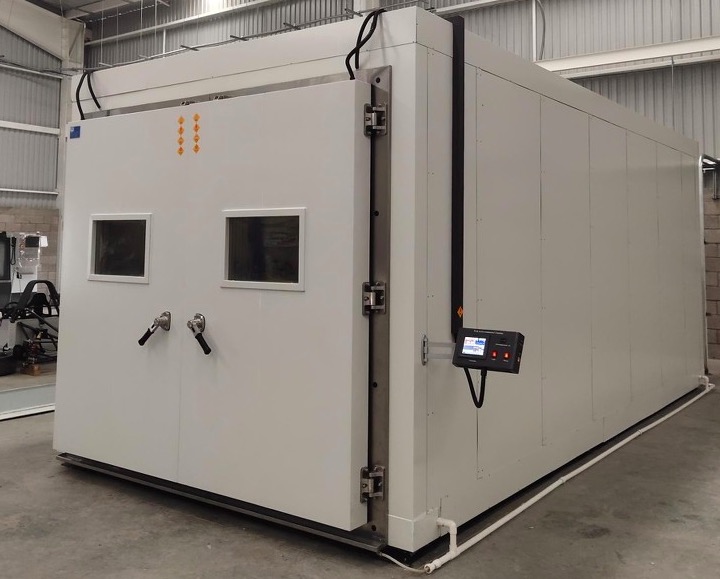

OEM Walk In Test Chamber Stainess Steel Interio / Galvanized Steel
Sheet Exterior
Main feature of the Walk-in environmental temperature humidity stability chamber
1. Programmable Controller with RS232C, 7″ LCD touch panel control
2. Stainess steel Interior, galvanized steel sheet exterior
3. 2pcs stainless steel loading shelves free
4. Multipane viewing window with heater
5. 60mm diameter feed-through port
6. Floor stand with castors
Uses:
This product is used to provide large parts industry,semi-finished products of the large temperature and humidity test environment equipment.
Character:
Content product can be any enlargement,reduction,designed with the needs of the user environment.
Modualar library board,easy accessibility,simple structure with a
zero coefficient of ozone green(HFC)refrigerants
R404,R23.Spacious,bright and large windows proof room with high
brightness,so that users can observe the walk-in constant
temperature and humidity conditions indoors laboratory testers.A
full range of security devices and power memory to ensure the
safety of users using the machine itself and blow ceiling
type,reduce testing indoor sample of wind speed on the sample able
to do low-speed high uniformity requirements.It can be connected to
the computer,the recorder.
Specifications :
| Inner chamber size w×h×d(cm) | Non-standard,depends on customers` specific requirements for customization | |||||
| Exterior chamber size w×h×d(cm) | ||||||
| Testing temperature range | 0℃,-20℃,-40℃,-60℃,+70℃,+80℃ | |||||
| Performance | Temp.fluctuation | ±0.3℃ | ||||
| humidity range | 30~90%RH | |||||
| Humidity uniformity | ±5℃%RH | |||||
| Temp.uniformity | ±3℃ | |||||
| Heat up time | 20℃~80℃≤50min | |||||
| Material | Exterior chamber material | Cold-rolled steel+Powder coating | ||||
| Interior chamber material | SUS#304 Stainless steel plate | |||||
| Insulation material | PU fiberglass wool | |||||
| System | Air circulation system | Cooling fan | ||||
| Heating system | SUS#Stainless steel high-speed heater | |||||
| Humidification system | Surface evaporation system | |||||
| Controlling system | Digital electronic indicator+SSR+PID | |||||
| Refrigeration system | Imported tecumseh compressor+ fin type evaporator+air(water)condenser | |||||
| Dehumidifying system | ADP dew point dehumidification method | |||||
| Other components | Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) | |||||
| Safety protection device | Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp | |||||
| Power supply | AC 3phase 380V 60/50Hz | |||||
| Customization service | Non-standard or special requirements are all welcome | |||||
We keep good quality and competitive price to ensure our customers
benefit ; We respect every customer as our friend and we sincerely
do business and make friends with them,no matter where they come
from. Each batch of parts is done quality sampling inspection
before into the warehouse, and Each product before delivery is
tested by the national authoritative third-party inspection agency
Our advantages:
1) Direct factory with 10+ years manufacturing experience in test equipment.
2) Products are in accordance with ASTM, IEC, ISO, JIS and other international standard.
3) Overseas technical and onsite installation support, have been 8 countries, such as America, Turkey, Australia etc.
4) Professional R&D staff with more than 5 years experience in this filed.
|
