| Categories | Walk In Test Chamber |
|---|---|
| Brand Name: | GSKA |
| Model Number: | Temperature Walk In Humidity Chamber |
| Certification: | CE SGS ROHS UL CE |
| Place of Origin: | Dongguan China |
| MOQ: | 1set |
| Price: | Negotiate |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 100 Set / Sets per Month |
| Delivery Time: | 30-35 work days |
| Packaging Details: | Export package |
| Compressor: | French Tecumseh Brand, Germany Brand |
| Integral style: | -70~150 Deg C / 20%~98%R.H |
| Detachable style: | -70~120 Deg C ; 20%~98%R.H When -70 to 65 Deg C |
| Control Accuracy of Temperature: | ±0.5℃ |
| Control Accuracy of Humidity: | ±3.5% R.H. |
| Cooling System: | water cooling |
| Temp.Rising rate: | 0.1~3.0°C/min |
| Temp.Falling rate: | 0.1~1.0°C/min |

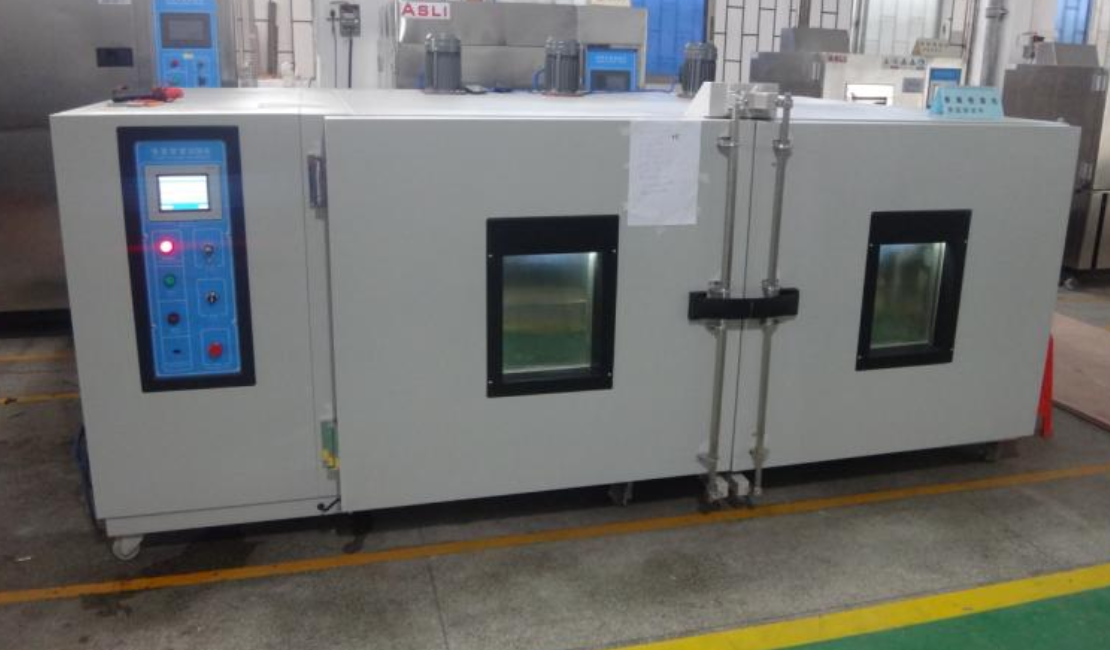

Humidity Range 20%~98%R.H Humidity Chamber Used AC 380V50/60HZ
Large environmental walk in chamber / walkin in stability chamber
for lab test Application:,
walk in environmental temperature humidity chamber used to test
various types of materials for their tolerances of heat, cold, dry,
humidity. It is applied for for all types of electronic
products,electric appliance, and products from communication,
instrument, automobile, plastic, metal, food, chemical,building
materials, medical and aerospace industries.
Large environmental walk in chamber / walkin in stability chamber
for lab test Features:
1. Graceful appearance, circularly shaped body for , surface
treated with mist strips and plane handle with no reaction. Our
temperature humdity climatic chamber is easy to operate, safe and
reliable.
2. Rectangular double-glassed watching window for the observation
of the test production during the testing process.The window is
equipped with sweat-proof electrical heating device that can
prevent water steam from condensing into droplets, and with high
brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the
internal temperature effectively.
4. Water supply system that is externally connectable, convenient
for refilling water into the humidifying pot and automatically
recyclable.
5. The French Tecumseh brand is used for the circulation system of
the compressor, capable of removing the lubricant between the
condensation pipes and capillaries. The environment protecting
coolant is used for the whole series (R23, R404A).
6. Imported LCD display screen, capable of displaying the measured
value as well as the set value and time.
7. The controller of environmental chamber has the functions of
multiples segment program editing, and of quick or slope control of
temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation,
with strong positioning screws.
Technical Parameters:
| Model | low-temperature options : A ~ F |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional) |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional
condition, |
| Analytic Accuracy /Distribution Uniformity of Temperature& Humidity | 0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5°C; ±2.5% R.H. |
| Temperature Rising /Falling speed Rate | Temperature rising approx. 0.1~3.0°C/min |
| Cooling System | Water cooling |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high
and low |
| Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Brand |
| Power | AC 380 V,50/60HZ ,3ph 5 Lines |
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Need more info for Large environmental walk in chamber / walkin in
stability chamber for lab test, please let us know,thank you
|
