Jumbo Size Sealing Robot Match To 3300x7000 Mm IG Line

Jumbo Size Sealing Robot Which Is Match To 3300*7000 Mm IG Line

Automatic Sealing robot for Double glass triple glass stepped glass

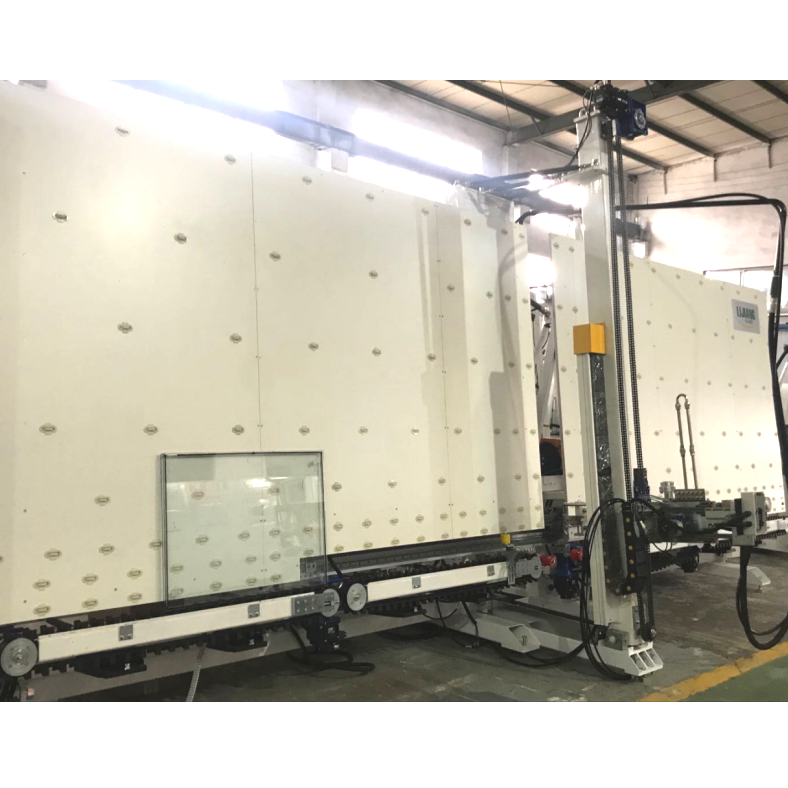

Vertical Insulating Glass Sealing Robot

LJTJ2540

LJTJ2540 is the latest automatic vertical insulating glass sealing robot. It is used to coat double glazed glass through mixing the A component and B component together according to a certain percentage.

Applied to double/triple/shaped and stepped glasses (Optional) with stable performance and easy operation.

Detail Images

Ø Single Glue System

Equipped with single A component and single B component.

Ø Double Glue Systems

Equipped with two sets of A components and two sets of B components, which can be used for two kinds of sealants, such as silicone rubber, polysulfide rubber and silicone structural adhesive.

Ø Reback Glue Device

When the pressure increasing, more Glue B will flow back automatically, saving materials.

Ø Dyad Body Device

The dyad body device has two functions

The left one is used for filtering impurities and moisture when filling gas into

then the right one plays the role of lubrication.

Ø Two Suckers Device

Adopting two suckers for preventing to move glass during sealing.

Ø The Device of Sealing Part

Adopt Japan YASKAWA servo motor to control the sealing part with 360°rotating. Setting scraper blade to scrape out extra glue and no need to repair glass corners by second time.

Ø Intelligent Sensor

Automatically recognize the glass, allowing to adjust the coating speed online.

Ø Storage Function

It can store three pieces of insulating glasses on the three belts when their size are less than 1.8m.

Ø Timing belt

The time belt device ensure that glass can be smooth transmission and located accurately.

Ø Stepped glass (Optional)

For the stepped glass, it can be coated well by once time, don’t need to repair it on secondary.

Ø Equipped with MANUAL DEVICE

Every separate part is equipped with manual operation, be easy to adjust in case.

Ø Eight Servos

The robot uses eight YASKAWA servos,

four of them control transmission parts,

in the another four servos, they control sucker,

lifting, driving and revering mechanism and rotating.

Ø Main electrical components

The main electrical components are adopted famous brands to maintain more stable performance, which comprise driver, PLC, input and output modules and so on.

Ø Shaped Glass and Triple Function (Optional)

With the development of updating technology, the sealing robot can coat eight shaped glasses according to the glass market.

Technical data
