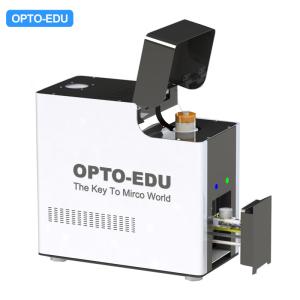

Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x

Categories Scanning Microscope
Brand Name: OPTO-EDU
Model Number: A63.7001
Certification: CE, Rohs
Place of Origin: China
MOQ: 1 pc
Price: FOB $1~100000, Depend on Order Quantity
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Delivery Time: 5~20 Days
Packaging Details: Carton Packing, For Export Transportation
Resolution: 6nm@30KV(SE)
Magnification: 150000x
Electron Gun: Pre-Centered Tungsten Filament Cartridge
Accelerating Voltage: Accelerating Voltage 1~15KV, Continuous Adjustable, Adjust Step 1KV
Max Specimenn: Ф50 x H35mm
Vacuum System: Full Auto Control High Vaccum System, Vaccuming Time <2 Minutes
Working Distance: 5-35mm
Condenser: Built-in Condenser No Need Manual Adjust Aperture (LaB6 Optional)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

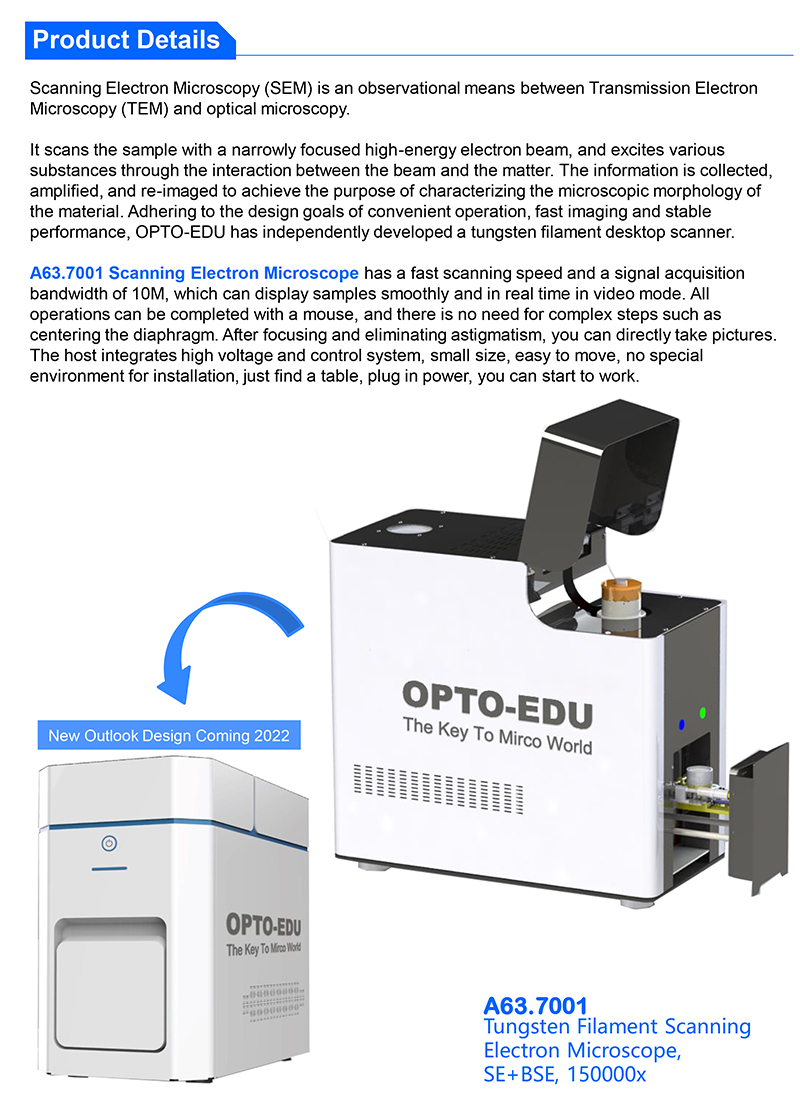

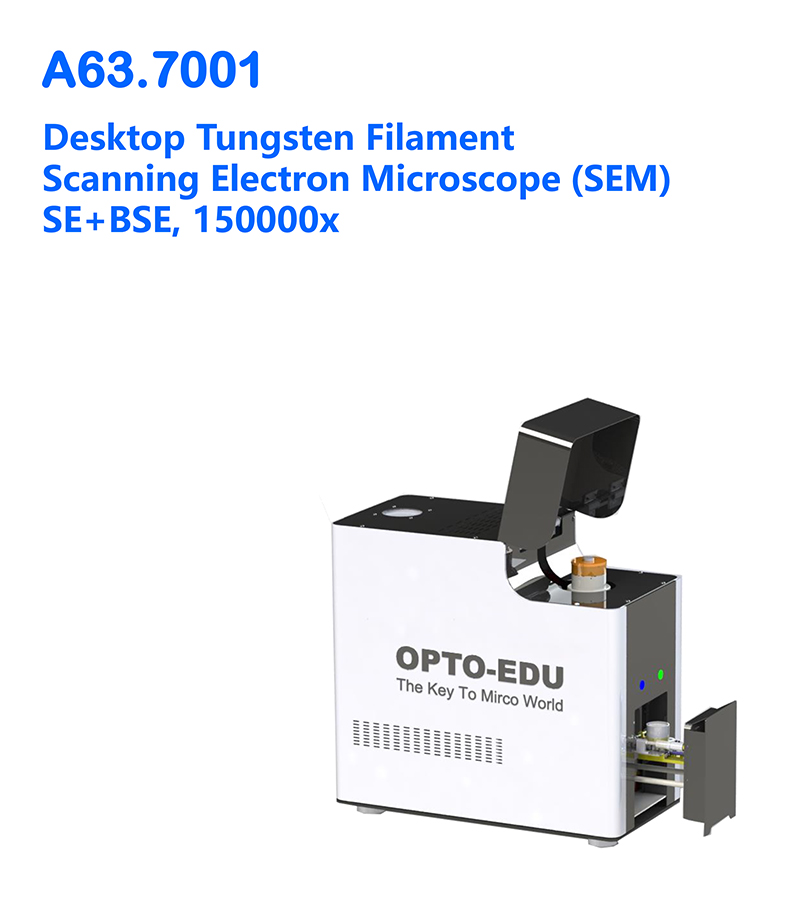

Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x

Tungsten Filament Scanning Electron Microscope, SE+BSE, 150000x

  • 150000x Magnification With Detector SE+BSE+CCD, Optional EDS
  • Standard X/Y Motorized Working Stage, Optional Five Axes X/Y/Z/R/T
  • Built-in Condenser No Need Manual Adjust Aperture (LaB6 Optional)
  • High Vaccum System With Mechanical Rotary Pump To Get Vaccum In <2 Minutes
  • One Key Auto Focus, Auto Brightness & Contrast Adjust, No Need Shock Absorbing Table

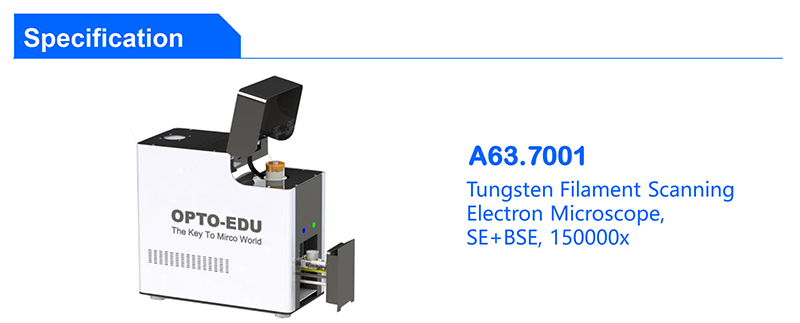

A63.7001 Tungsten Filament Scanning Electron Microscope, SE+BSE, 150000x
Resolution6nm@30KV(SE)
Magnification150000x
Electron GunPre-Centered Tungsten Filament Cartridge
VoltageAccelerating Voltage 1~15KV, Continuous Adjustable, Adjust Step 1KV
DetectorStandard: SE, BSE, CCD
Optional: EDS
Vacuum SystemFull Auto Control High Vaccum System, Vaccuming Time <2 Minutes
Specimen StageStandard XY Auto Stage, Travel Range 30x30mm,
Optional 5 Axes Stage
Max SpecimenФ50 x H35mm
Working Distance5-35mm
CondenserBuilt-in Condenser No Need Manual Adjust Aperture (LaB6 Optional)
Image SystemSE, BSE, BSE+SE(Mix)
Scan Mode:
1. Video Mode: 512x512 Pixels, No Need Small Window Scan
2. Quick Mode: Scan Time <3s, 512x512 Pixels,
3. Slow Mode: Scan Time <40s, 2048x2048 Pixels,
Image File Format: BMP, TIFF, JPG, PNG
NavigationOptical CCD Navigation (Not Electrical Image Navigation)
Auto FunctionOne Key Auto Focus, Auto Brightness & Contrast Adjust

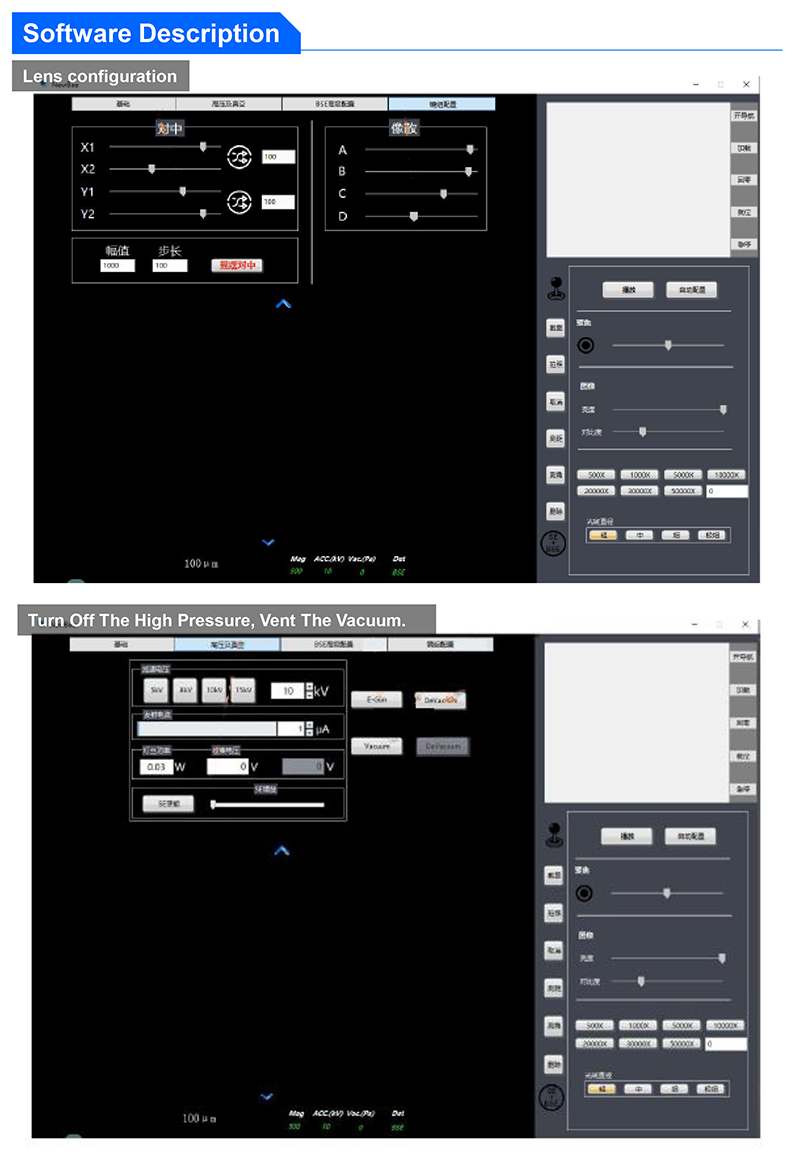

Computer & SoftwarePC Work Station Win 10 System, With Professional Image Analysis Software To Fully Control Whole SEM Microscope Operation, Computer Specification No Less Than Inter I5 3.2GHz, 4G Memory, 24" IPS LCD Monitor, 500G Hard Disk, Mouse, Keyboard
Working Condtion220V/50Hz 1KW, No Need Shock Absorbing Table
Dimension
Microscope Body 283*553*505mm

Mechanical Pump 340*160*140mm

Optional Accessories
A50.7002EDS Energy Dispersive X-Ray Spectrometer
A50.7011Ion Sputtering Coater
