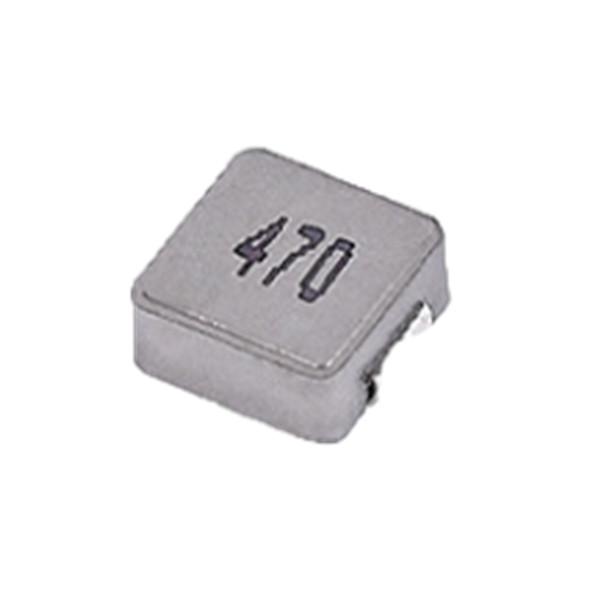

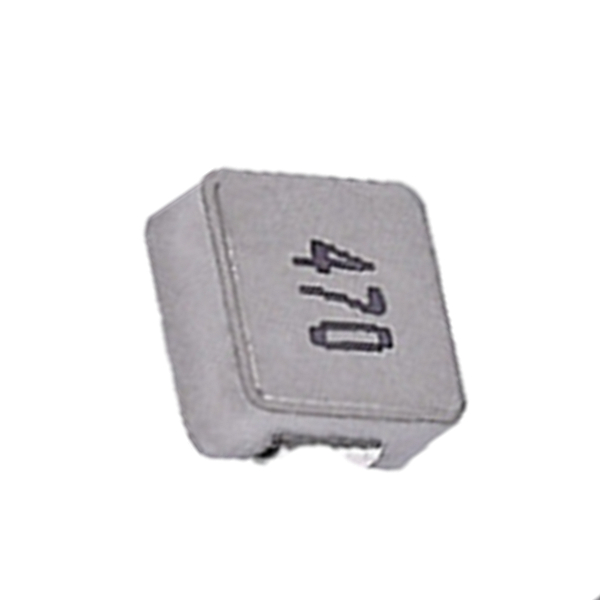

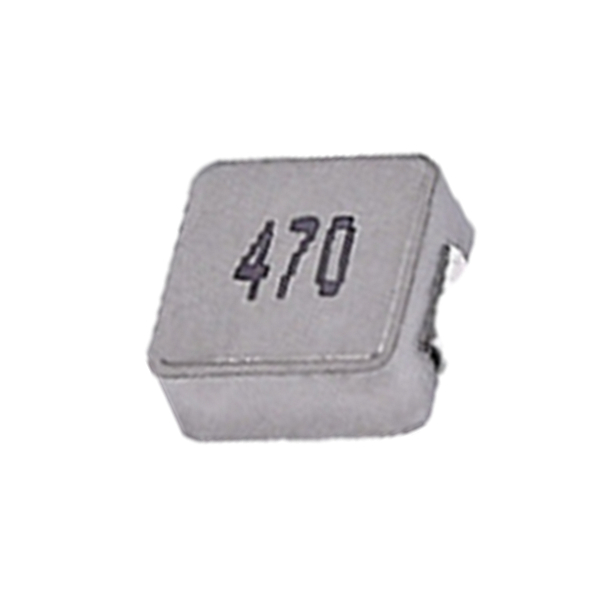

0.2uH 4A Molding Power Inductor , Smd Power Choke For Computers

SMD Power Inductor Original Smd Alloy Powder Molded Chip Integrated Circuit Ic 1.0uH~4.7uH

Features:

• Magnetically shielded construction, low DC resistance；
• Frequency Range: up to 29MHz；
• RoHS compliant
• Reliable quality

Applications:

• Smart phone,MID；
• Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；
• Flat-screen TVs, blue-ray disc recorders, set top box；
• Notebooks, desktop computers, servers, graphic cards；
• Automotive systems；

Specification:

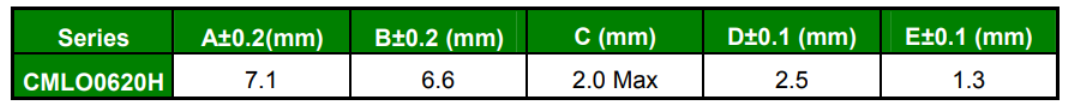

Dimensions

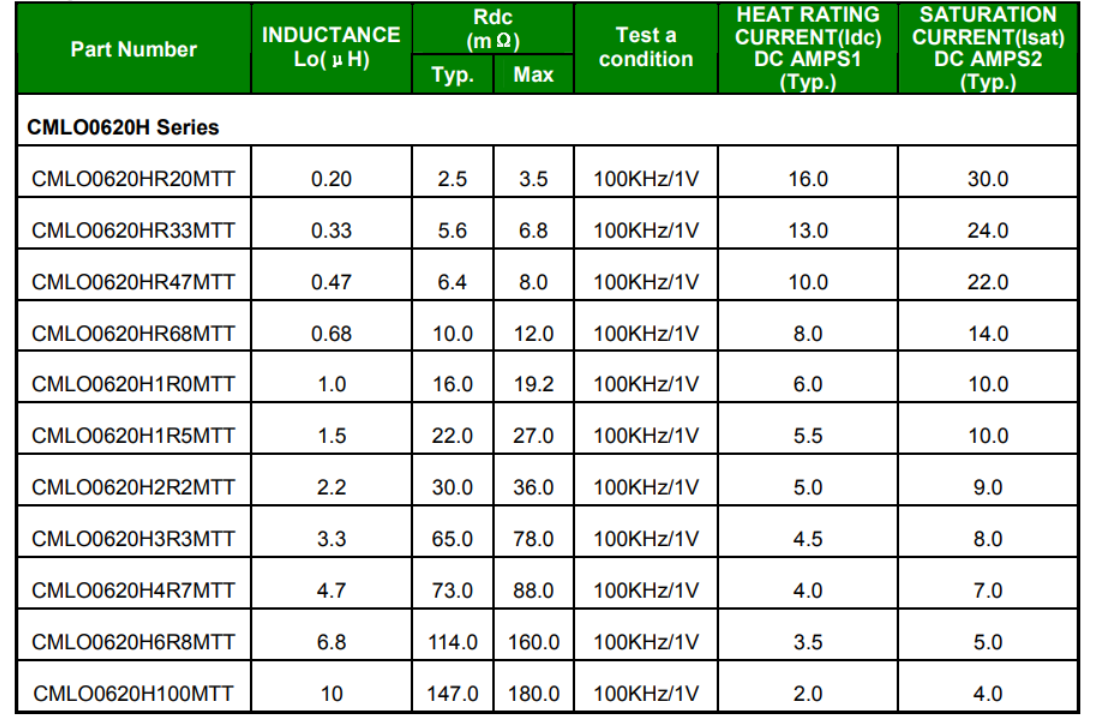

Specification

Packaging Information:

NOTES:

• DC current (Idc) that will cause an approximate △T of 40℃
• DC current (Isat) that will cause Lo to drop approximately 20%
• All test data is referenced to 25℃ ambient
• Operating Temperature Range -55℃ to +120℃
• The part temperature (ambient + temp rise) should not exceed 120℃ under the worst operating conditions.
• Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions
• all affect the part temperature. Part temperature should be verified in the end application.

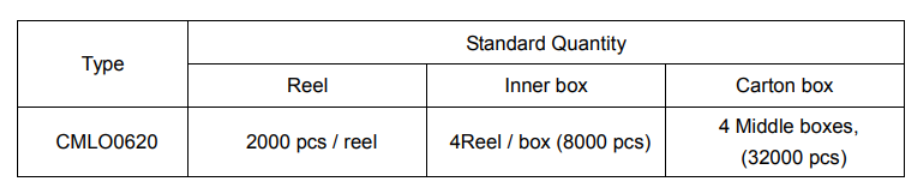

Packaging Quantity(pcs)

The company’s main business categories: wireless charging coils,induction coils,IC card coils,power inductor,chip inductor and transformer,It is an emerging companies in the development production and sales.Products are widely used in communications,consumer electronics,computers,LED lighting,security,intelligence,medical equipment, bluetooth,toys,mobile phones and automotive electronics.In

the field of electronic products.

The company pursues excellence in product quality,all products high-quality raw materials,equipped with strict production process control procedures,complete production equipment,testing equipment,sales service. The company has passed ISO9001 quality management system certification.The main markets are all over the country,Europe,America and Japan,and are constantly expanding into emerging markets such as Vietnam, Thailand,the philippines,and india
