| Categories | Stretched Bar Display |
|---|---|
| Brand Name: | Sinotectronics |
| Model Number: | IPD-CN880TXP02 |
| Place of Origin: | Suzhou, Jiangsu, China |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000~100000pcs/Month |
| Delivery Time: | 5-8 days |
| Packaging Details: | carton |
| Dot Pitch: | 0.1865(H)x0.554(V)mm |
| Pixel Pitch: | 0.554(H)x0.554(V)mm |
| Power Input: | AC100V-240V, 50/60Hz |
| Power Consumption: | 480W |
| Energy Efficiency: | ≥1.05cd/W |
| Body Color: | Black Matte |
| Net Weight: | 40kg |
| Gross Weight: | 50kg |
| Company Info. |
| Sinotectronics Inc. |
| View Contact Details |
| Product List |
88 Inch HDMI Input Port WLED Direct Illumination-type Stretched Bar
Display
1. Product Description

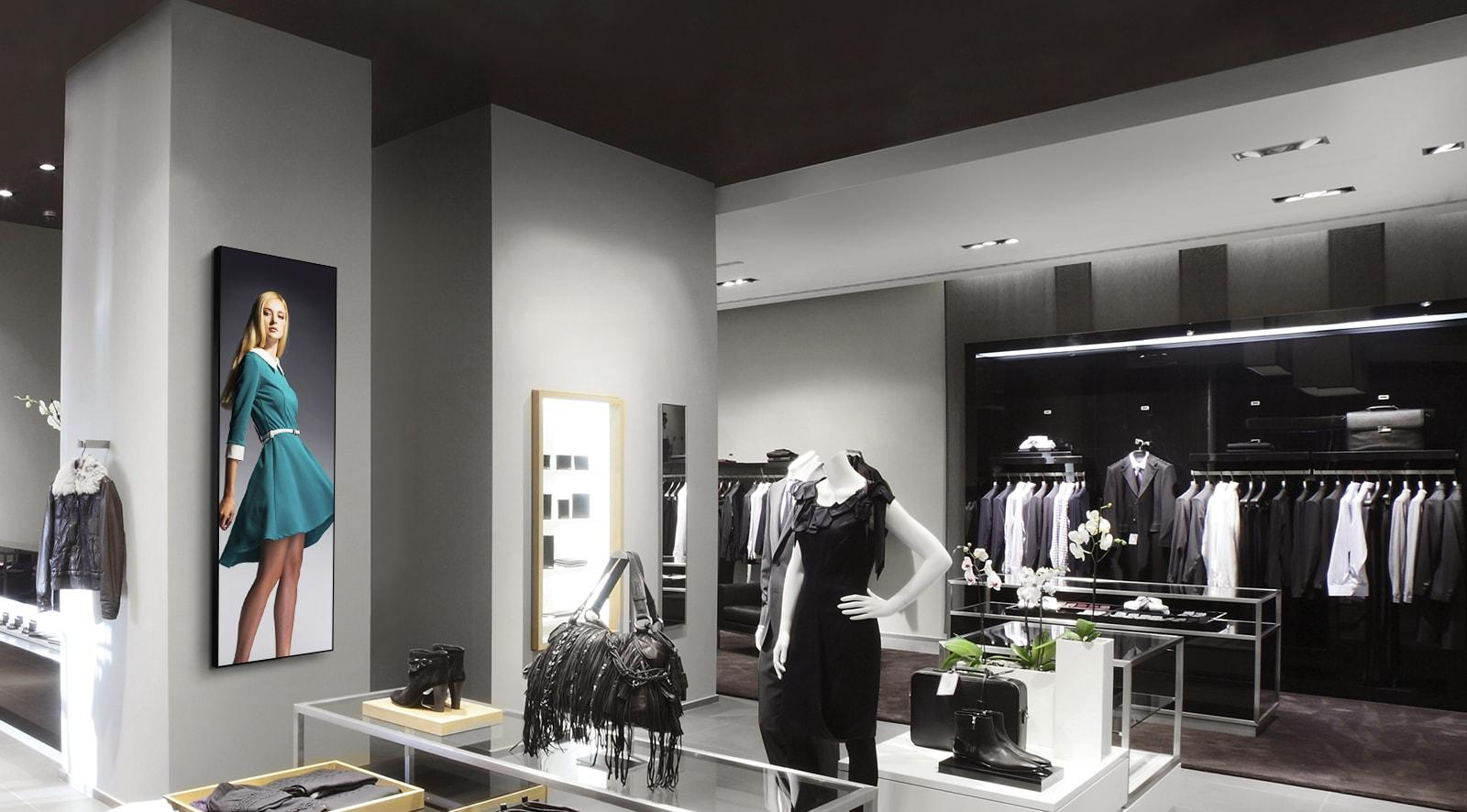

Sinotectronics Bar Type Display is available in a variety of sizes, configurations, and brightness options, making them a perfect versatile solution for industrial and commercial advertising, especially in areas with high traffic and restricted, atypical shape space. This Bar Type Displays are utilized in retail, advertising, public transportation, commercial buildings, quick-service restaurants, and other applications.
2. Technical Datasheet
| System | CPU | T972 Quad-core A55, Main frequency up to 1.9 GHz |
| RAM | 2G | |
| ROM | 8G | |
| Operation System | Android 9.0 | |
| Display | Diagonal Size (inch) | 87.8 inches(2230.2mm) diagonal |
| Backlight Form | WLED Direct Illumination-type | |
| Resolution | 3840×1080 | |
| Color | 10bit-1.07Billon colors | |
| Viewing Angle | 89/89/89/899(Min). ( CR≥10) | |
| Response Time | 8(Typ.) (G to G) ms | |
| Contrast Ratio | 1100:1(Typ.) (Transmissive) | |
| Brightness | 700cd/㎡ (Typ.) | |
| Dot Pitch (mm) | 0.1865(H)x0.554(V) | |
| Pixel Pitch (mm) | 0.554(H)x0.554(V) | |
| View Area (mm) | 2148.48(H)x598.32(V) | |
| Optical Mode | IPS, Normally Black, Transmissive | |
| Network | WiFi | 802.11b/g/n/ac,BT5.0 |
| Ethernet | 10M/100M Adaptive Ethernet | |
Port Information | USB | USB*2 |
| HDMI IN | HDMI IN*1 support HDMI 2.1 4kx2k@60Hz input | |
| RJ45 | RJ45*1 | |
| AV IN | AV IN*1 | |
| TF Cord | TF Cord*1 | |
| Reset Button | 1 | |
| Power | Power Input | AC100V-240V, 50/60Hz |
| Power Consumption | 480W | |
| Energy Efficiency | ≥1.05cd/W | |
Operating environment | Operating Temperature | 0℃～40℃ |
Operating Humidity | 10～90% RH (No Condensation) | |
Physical Characteristics | Body Color | Black Matte |
| Body Material | SGCC | |
| Net Weight | 40KG | |
| Gross Weight | 55KG | |
Outline Dimension(mm) | 2158.3×611.3×84.4 | |
| Others | AC power cord 1.8m | |
|
