300W Painted Type High Power Wire Wound Resistor Ripple Braking

300W Painted Type High Power Wirewound Ripple Braking Resistors

Structure:

1.The high temperature resistance ceramic tube is used as the resistance matrix,is wound with chrominum alloy wire ,then coated with high temperature & non-flammable resin for protection to let resistors with better appearance and heat dissipation effect,after natural drying,baking at different temperatures before assembly.

2.Different assembly & fitting available,different styles of mounting brackets

3.Single unit with multi-resistance/ Multi-terminals also available;

4.Non-inductive & variable type on requests;

5.Working voltage and Nominal resistance value are related to Ohm’s law.

Features:

1.These resistors are suitable as loading resistor,braking resistor,capacitor discharge,resistive load simulation,machinery,

machinery and equipment higher power application.
2.In different applications,called ceramic wirewound resistors,ceramic tube resistors,high power resistors,ripple resistors,braking resistors,charge resistor,discharge resistors,dump load resistors,current limiting resistors, burn-in resistors or load resistors,ect.
3.Resistance adjustable version is available:DSR series .
4.Resistance box and load bank available with power up to 2000kW.
5.Support precision resistance tolerance requirement.

Specification

Applications:

Widely used in frequency converter, elevator,hoisting,ship,electric power,welding,power supply,military industry,aviation,wind power generation,solar power generation,generator test load,automation equipment,railway system and other industries .

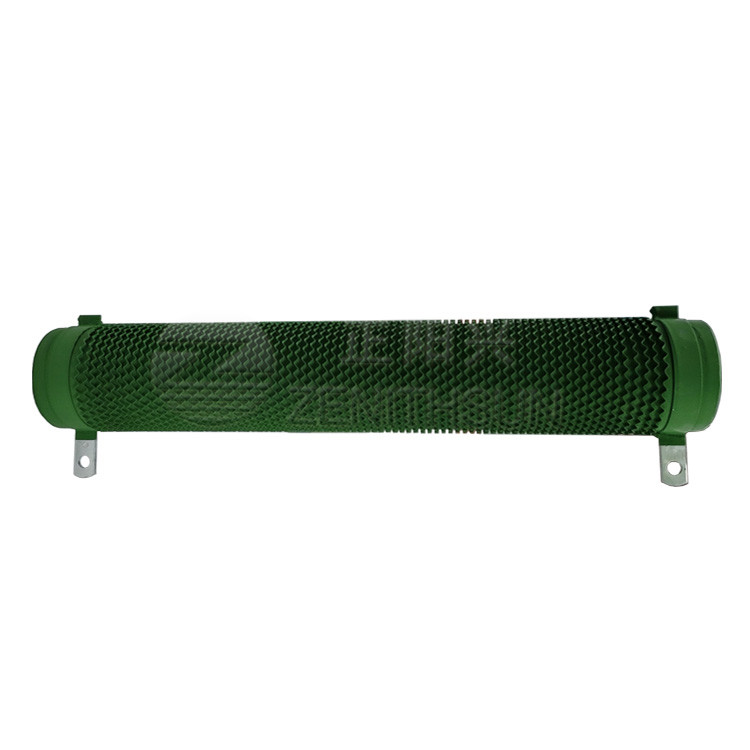

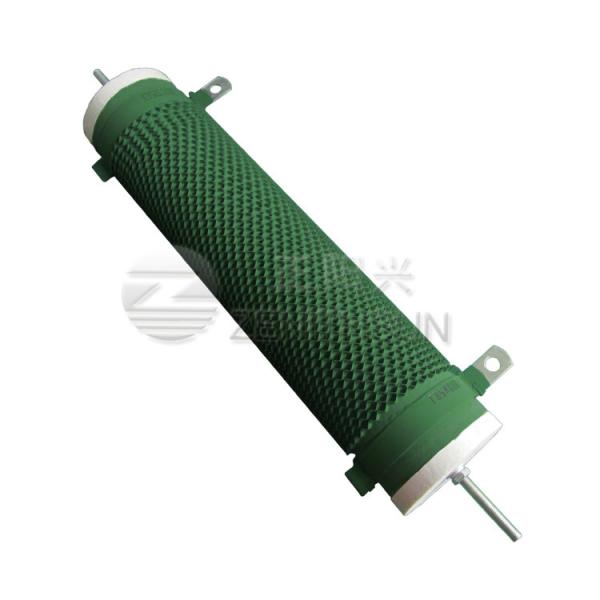

Products Image
