Cemented Coated Low Inductance Resistor High Power Wave Ribbon WireWound

Low Inductance Silicon Coated Wave Ribbon High Power Wire-Wound Resistors

Structure :

1.The high temperature resistance ceramic tube is used as the resistance matrix,is wound with chrominum alloy wire ,then coated with high temperature & non-flammable resin for protection to let resistors with better appearance and heat dissipation effect,after natural drying,baking at different temperatures before assembly.

2.Different assembly & fitting available,different styles of mounting brackets

3.Single unit with multi-resistance/ Multi-terminals also available;

4.Non-inductive & variable type on requests;

5.Working voltage and Nominal resistance value are related to Ohm’s law.

Features:

1.These resistors are suitable as loading resistor,braking resistor,capacitor discharge,resistive load simulation,machinery,machinery and equipment higher power application.
2.Mounting fixture is available.
3.Resistance adjustable version is available : DSR series .
4.Resistance box and load bank available with power up to 2000kW.
5.Support precision resistance tolerance requirement.

Specification

Applications:

Widely used in frequency converter,elevator,hoisting,ship,electric power,welding,power supply,military industry,aviation,wind power generation,solar power generation,generator test load,automation equipment,railway system and other industries .

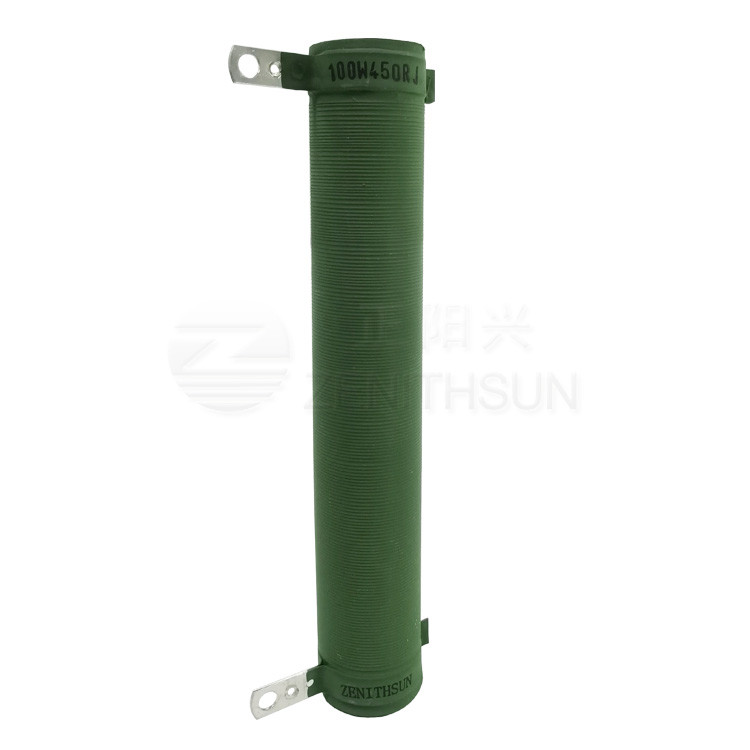

Products Image
