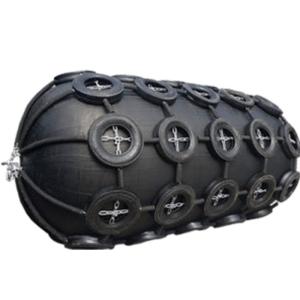

2.0*3.5M Floating Pneumatic Rubber Fenders 50kPa 80kPa For Ship Docking

Categories Pneumatic Rubber Fender
Brand Name: DockFender
Model Number: DF-PRF2.0*3.5M
Certification: PIANC, ISO17357
Place of Origin: China
MOQ: 1 Unit
Price: EUR 220 to 2200 Per Piece
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1260 Pcs Per Month
Delivery Time: 7 Work Days
Packaging Details: Wooden Pallets, Wooden Cases
Product Name: 2.0*3.5M Pneumatic Rubber Fender ISO17357 Standard 80kPa Boat Floating
Material: High Density Natural Rubber
Standard: PIANC2002, ISO17357-1:2014
Certificate: ABS, CCS, BV, LR, DNV
Initial Pressure: 50kPa & 80kPa
Diameter: 500mm-4500mm
Warranty: 36 Months
Usage: For ship docking or berthing
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2.0*3.5M Floating Pneumatic Rubber Fenders 50kPa 80kPa For Ship Docking

2.0*3.5M Pneumatic Rubber Fender ISO17357 Standard 80kPa Boat Floating


Description


Pneumatic rubber fender can be easily handled and installed with guy-rope or guy-chain because of their lightweight. It can resist the shearing force and maintain energy absorption level under inclined compression up to 15 degrees. Meanwhile, provide low and comparatively even hull pressure.

Pneumatic rubber fender is known as Pneumatic fenders or Pneumatic-type pneumatic fenders. Floating pneumatic rubber fender is made of the synthetic-cord-reinforced rubber sheet with compressed air inside to enable it to float on the water and work as a shock absorbed between two ships (ship-to-ship), or between ships and berthing structures when they come alongside each other on the water. Pneumatic rubber fender is manufactured and tested to ISO 17357.


Specifications


Item2.0*3.5M Pneumatic Rubber Fender ISO17357 Standard 80kPa Boat Floating
MaterialHigh Quality NR/NBR/SR
TypeCTN, 80kPa
Neoprene

Thickness: 1.0- 50.0mm

Color: Black, green, red, yellow, white

Diameter0.5m-4.5m
Elongation≥400
Density95±5
Tensile Strength≥18
Hardness65 +/- 10 Shore A or according to your requirement
ColorAs per your request
Lead Time2-3 weeks
Production Capacity1800 Pcs per month
PackagePP bag or wooden pallet or as required
Payment termT/T
UseSTS, STD
FeatureWaterproof, Shockproof, Good Elastic, Soft
AdvantageWe can composite the fabric with different kinds of fabric to make the material suitable for different types of products

Normal Size

Inner Pressure: 50Kpa

60% deflection

Inner Pressure: 80Kpa

60% deflection

DiameterLengthReaction ForceEnergy AbsorptionHull AbsorptionReaction ForceEnergy AbsorptionHull Absorption
mmmmkNkNmkPakNkNmkPa
5001000646132858174
60010007481269811166
70015001371713518024177
100015001823212223945160
100020002574513233863174
120020002976312639088166
13502500427102130561142170
15003000579152132731214174
17003000639191128840267168
200035008753081281150430168
2500400013816631371815925180
25005500201994314826531317195
330045001884117513024761640171
330065003015181414639612532191
3300106005121309017166124294220
450070004660381618658664945233
450090005747475214675516633192
45001200079846473154104909037202

Features


1. As a protective medium is suitable for ship-to-ship contact, ship to dock and ship to berthing.
2. It is light weight, portable and floatable, can be installed, replaced easily and reused 6-8 years without misuse.
3. We have provided pneumatic fenders to marine service and offshore service for varieties ships.
4. All kinds of foam-filled marine fenders can be available.


Applications


● Tankers, Gas Carriers and Bulk Cargo Ships.

● Fast ferries and aluminum hulled vessels.

● Temporary of permanent installations.

● Ships (ship-to-ship), or between ships and berthing structures.


Advantages


◆ Guaranteed for two years against defects in workmanship and material.

◆ Free repair during the guarantee if come out quality issues.

◆ The repair technology supply for free.

◆ We provide rental and old for new service.

◆ The Lifespan of our fender is longer than 20 years.
