Energy Absorbing Marine D Fender 100% Natural Rubber Black Color

Categories D Type Fenders
Brand Name: DockFender
Model Number: DF-DH400
Certification: PIANC, DNV, ABS, ISO9001
Place of Origin: China
MOQ: 1 Piece
Price: USD200-2600 Per Piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Pcs Per Month
Delivery Time: 5-6 Work Days
Packaging Details: Wooden Pallet, Wooden Case
Product Name: 100% Natural Rubber D Type Fenders Industrial Energy Absorbing Black Color Marine Boat
Material: Natural Rubber, NBR, Silicone, EPDM, FKM, SBR
Type: Fixed Rubber Fender D Type
Processing Service: Moulding, Cutting
Delivery: 15 days
Logo: Customized Logo Accept
Size: Custom Size
Application: Industrial, Marine, Mooring
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Energy Absorbing Marine D Fender 100% Natural Rubber Black Color

100% Natural Rubber D Type Fenders Industrial Energy Absorbing Black Color Marine Boat


Description


D type fender offers the excellent physical characteristics needed to handle the high loading, which occurs both on initial contact, and throughout the service cycle. The rubber fender could be equipped both at the smaller and at the top front of the harbor as the second defense line together with the other fenders. Normally, It should be equipped continuously so as to avoid the direct impact of the ships when abnormal harboring happens.


Specifications


Place of OriginChina
Brand NameDockFender
Model NumberDF-DH400
MaterialNatural Rubber
ColorBlack
Application

Marinas

Multiple purpose fendering

Tug Boats and Workboats

Small boat berths

Name100% Natural Rubber D Type Fenders Industrial Energy Absorbing Black Color Marine Boat
FeatureHeat Resistance
SampleUsually free
Production MethodMoulding
Temperature~40-120 degree
PackingPallets
Lead time7-14 days

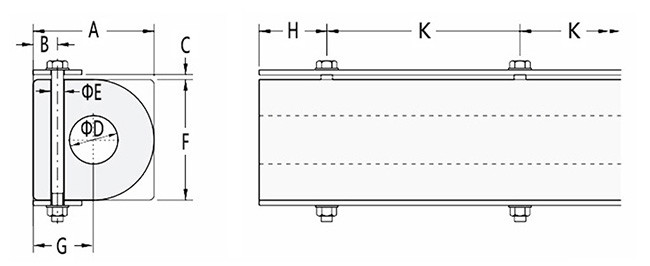

ABCDEFHK
[mm][mm][mm][mm][mm][mm][mm][mm]
70301530458090 - 130200 - 300
1004515305010090 - 130200 - 300
12560204060125110 - 150250 - 300
15075204075150110 - 150250 - 300
150802550100200130 - 180300 - 400
2001002550100200130 - 180300 - 400
2001003060125250140 - 200350 - 450
2501253060125250140 - 200350 - 450
3001503060150300140 - 200350 - 450
3501753575175350140 - 200350 - 450
3801903575190380140 - 200350 - 450
3001503575175400140 - 200350 - 450
4002003575200400140 - 200350 - 450
5002504590250500160 - 230400 - 500
*Note: Other sizes can be customized according to the requirements.

ABCDEFGHK
[mm][mm][mm][mm][mm][mm][mm][mm][mm]
100251030151005090 - 130200 - 300
1503012652015075110 - 150250 - 350
20045157525200100130 - 180300 - 400
250502010030250125140 - 200350 - 450
300602512530300150140 - 200350 - 450
350702515035350175140 - 200350 - 450
400803017535400200140 - 200350 - 450
400803020035400200140 - 200350 - 450
5001003025035500250140 - 200350 - 450

Features


1. Thick walls for higher resistance against larger vessels.

2. UV Stabilisers.

3. Anti-Microbial Additives.

4. Robust and Durable Design.

5. Non-Marking.

6. Hard Wearing.


Applications


● Workboats

● Tugboats

● Pilot Boats

● Fishing Boats

● Pontoons

● Shipping Quays

● Coast Guard, Naval, and Military ships


Rubber Properties


PROPERTIESTEST STANDARDVALUES
Compound-NR / SBR
Density (Specific Gravity)DIN 535051200 kg/m3
Tensile StrengthDIN 53504≥16 MPa
Elongation at BreakDIN 53504≥350%
Tear Resistance (23°C)DIN 53507≥80 N/cm
Abrasion ResistanceDIN 53516≤100mm3
Compression Set (24hrs @ 70°C)DIN 53517≤40%
Ozone Resistance (ppm 20% 72hrs @ 40°C)ISO 143/1No cracking visible by eye
Change In HardnessDIN 53504≤5°
Change In Tensile StrengthDIN 53504≥80%
Change In Elongation at BreakDIN 53504≥80%
Minimum Temperature--30°C
Maximum Temperature-+70°C

Advantages


1. Quality

DockFender D type fenders always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our D type rubber fenders can be more durable and perform better.


2. Service

DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.


3. After-sales Service

DockFender 's fixed D type fenders can be guaranteed for 36 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.


4. Customize

All products of DockFender can be specially customized according to customer requirements, let us know your needs!


Material of main accessories


1. Bolt: Q235 hot-dip galvanised /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316

2. Washer: Q235 hot-dip galvanised.

3. Pre-built-in nut: 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316

4. Foot rod and board: Q235
