Square Dock Rubber Fender Highly durable Dock Bumper Fender

Categories Dock Rubber Fender
Brand Name: DockFender
Model Number: DF-SFD6
Certification: DNV, ISO9001
Place of Origin: CHINA
MOQ: 1 Piece
Price: USD750 One Piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1150 PCS Per Month
Delivery Time: 5 Work Days
Packaging Details: Pallet, Wooden Case
Product Name: Marine Dock Square Rubber Fenders High Energy Absorption Pier Dock Berth Vessel
Part: Bumper, Dock
Application: Dock, Port
Function: Protection
Height: 150-600 mm
Warranty: 3 Years
Processing Service: Moulding
Size: Customized Size
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

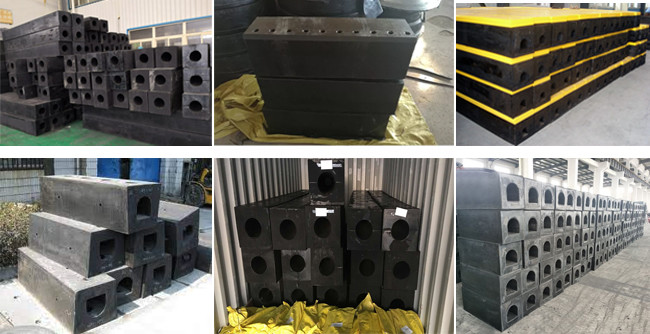

Square Dock Rubber Fender Highly durable Dock Bumper Fender

Marine Dock Square Rubber Fenders High Energy Absorption Pier Dock Berth Vessel


Description


Square rubber fenders are widely used as belts on tugboats and other workboats. The fender has a round hole to increase wall thickness and durability. The square fender has similar advantages to the D fender. Compared with the D fender, the square rubber fender is used for harder and stronger collisions under harsher conditions. Compared with cylindrical fenders, they have suitable reaction forces and higher energy absorption.

Square rubber fenders are simple rubber profiles, usually bolted to the structure. Extrusion molding can be made to virtually any length and then cut and drilled according to the requirements of each application. The square fender is applicable for all kinds of docks, quays, and ships. Good performance during angle berthing.


Specifications


Place of OriginChina
Brand NameDockFender
Model NumberDF-SFD6
Product NameMarine Dock Square Rubber Fenders High Energy Absorption Pier Dock Berth Vessel
MaterialHigh Performance Natural Rubber
SizeAs per customers' requirements
ColorAny color or according to Pantone colors
Quality CertificationPIANC 2014, BV, ABS, DNV
Samples1-2pcs of free samples are available
ServiceOEM or ODM
Tolerance±0.05 mm
ApplicationDock, Port, Quay

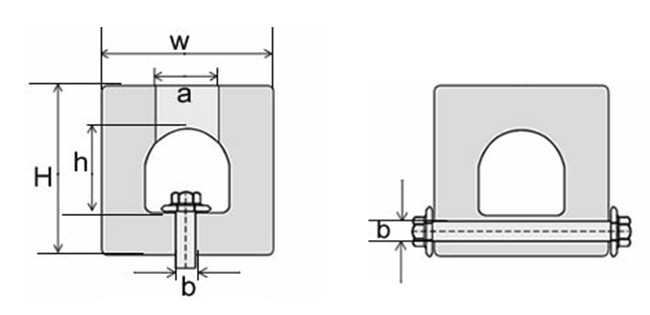

TypeW (mm)H (mm)c (mm)h (mm)a (mm)b (mm)
SFD-110010050453015
SFD-215015070654020
SFD-315015090655025
SFD-420020090955025
SFD-5200200120956030
SFD-62502501201206030
SFD-72502501401156030
SFD-83003001251356030
SFD-94004002002007535
SFD-105005002502509045

Physical propertiesUnitTest methodValueTest
Tensile strengthMPaISO 37≥16Yes
Elongation at break%ISO 37≥350Yes
Tear strengthN/mmISO 34–1(Graves)≥70Yes
HardnessHAISO 868≤78Yes
Change in Tensile Strength

%


ISO 188


≤20


Yes

Aged for 96h at 70°C
Change in Elongation at Break

%


ISO 188


≤20


Yes

Aged for 96h at 70°C
Change in Hardness

HA


ISO 868


≤6


Yes

Aged for 96h at 70°C
Compression Set%ISO 815≤30Yes
Ozone resistance


ISO 1431–1


No cracks

Yes
50pphm at 20% strain, 40°C,100h
Volume Change in Oil (ASTM Oil 1)%ISO 1817≤10Optional*
Volume Change in Seawater

%


ISO 1817


–5to+10


Optional*

36g NaCl/litre; 28days, 95°C
Abrasion Resistancemm³ISO 4649≤100Optional*
Bond StrengthN/mm²ISO 814≥7Optional*
DynamicFatigue*(15000 cycles)-ISO 132Grade 0–1Optional*
Low Temperature Resistance-ISO 812PassOptional*

Features


1. Easy to install

2. Strong molecular bond

3. Highly durable

4. Good weathering resistance

5. High wear resistance

6. Combination of resilient rubber body


Applications


● Workboats

● Tugboats

● Pilot Boats

● Fishing Boats

● Quays

● Pontoons
