Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty

Categories Dock Rubber Fender
Brand Name: DockFender
Model Number: DF-CL800H
Certification: PIANC, DNV, ABS, BV, LR
Place of Origin: CHINA
MOQ: 1 Piece
Price: USD350 to USD2000 One Piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800 PCS Per Month
Delivery Time: 5-6 Work Days
Packaging Details: Pallet, Wooden Case
Product Name: Marine Ship Dock Rubber Fender Cell Fenders CL800H For Dock and Jetty
Material: High Performance Natural Rubber
Height: 400 to 3000 mm
Accessories: Front Panel, Face Pad, Chain, etc
Warranty: 3 Years
Usage: Ship, Dock, Jetty, Port, Wharf
Packing: Standard Packing
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

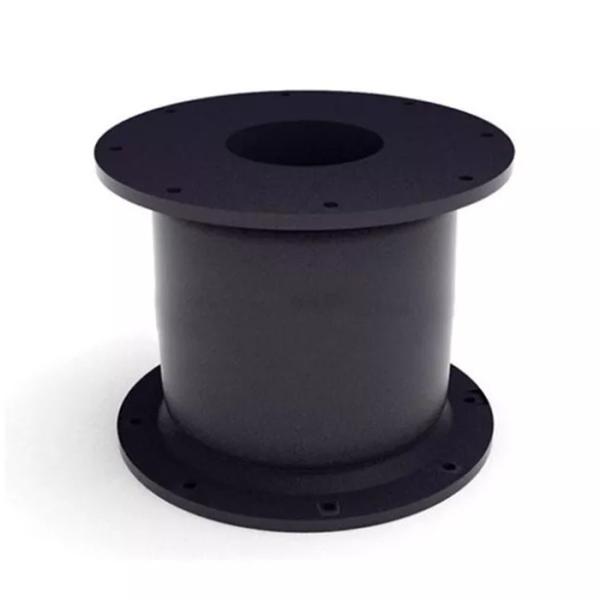

Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty

Marine Ship Dock Rubber Fender Cell Fenders CL800H For Dock and Jetty


Description


Cell Fenders are mostly installed for docks where Reaction force is an important criteria. Among all types of fenders, cell fenders offer minimum reaction per ton-meter energy absorbed. The very geometrical shape gives it sturdiness, shear resistance, compact structure and the capacity to absorb effectively and buckles
radically. Cell Fenders are the most durable rubber fenders available and are currently the largest molded fenders made. In order to distribute the reaction force, cell fenders are typically supplied with large fender panels, which keep the hull pressure low. Our cell type rubber fender is installed on docks to absorb the collision energy between ship and dock at the time of berthing.


Specifications


Product NameMarine Ship Dock Rubber Fender Cell Fenders CL800H For Dock and Jetty
Brand NameDockFender
Model NumberDF-500H
MaterialHigh Performance Natural Rubber
Height200mm-1000mm
Length1000-3500L
AccessoryFront Panel, Face Panel, Bolt, Nut, Foot Rod, Foot Board
Warranty3 Years
After-sale ServiceFree Spare Parts
Quality CertificationISO9001, PIANC
Safety StandardABS, BV, SGS
ColorCustomers' Requirements
ApplicationPort, Dock, Quay, etc

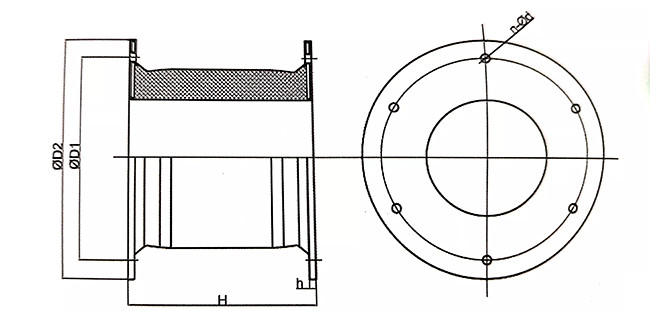

Type (mm)HØD1ØD2hholesn-Ød
DF-CL400H400550650254Ø30
DF-CL500H500550650254Ø32
DF-CL630H630700840304Ø39
DF-CL800H8009001050306Ø40
DF-CL1000H100011001300356Ø47
DF-CL1150H115013001500406Ø50
DF-CL1250H125014501650456Ø53
DF-CL1450H145016501850476Ø61
DF-CL1600H160018002000508Ø61
DF-CL1700H170019002100558Ø66
DF-CL2000H200020002200558Ø74
DF-CL2250H2250230025506010Ø74
DF-CL2500H2500270029507010Ø90
DF-CL3000H3000315033507512Ø90

Features


1. High performance, reasonable structure.

2. Strong, well-proven design.

3. Ideal for low hull pressure systems.

4. Can support large panels.

5. Strong, well-proven design.


Applications


● Oil and LNG Facilities

● Bulk Terminals

● Offshore Platforms

● Container Berths

● RoRo and Cruise Terminals

● Multi-user Berths

● Ideal for ships with low hull pressure headroom


Pre-built-in Accessories


◆ Bolt made of Q235 hot-dip galvanised material /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316

◆ Washer made of Q235 hot-dip galvanised material, 1Cr18Ni9Ti

◆ Pre-built-in nut made of Q235 hot-dip galvanised 1Cr18Ni9Ti/SUS304/SUS316

◆ Foot rod: Q235

◆ Foot board: Q235
