| Categories | Hydraulic Test Stands |
|---|---|
| Brand Name: | HIGHLAND |
| Model Number: | YST300 |
| Certification: | CE |
| Place of Origin: | China Dezhou |
| MOQ: | 1 sets |
| Price: | USD30000~USD86800/set |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10 sets per month |
| Delivery Time: | 30~60 working days |
| Packaging Details: | Plastic film packaging |
| Specification: | YST series |
| Pressure: | 35 mpa |
| Principle: | hydraulic component test |
| Flow rate: | 380L/min |
| Weight: | 4.5T |
| Power: | 110 kw |
| Warranty: | 1 year |
| Motive force: | Electromotor |
| Medium: | Hydraulic oil |
| Product name: | Free technical training Hydraulic test stand for pump maintenance |
Free technical training Hydraulic test stands for pump maintenance
Standard Specification Hydraulic test stands
YST Series Hydraulic testing table are used for checking and proofreading the products that hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.
Technical parameter
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic test stands Application
Hydraulic test stands is widely used by the liquid transport machinery, static hydraulic driving forklift, tires or crawler off -road cranes, large -scale fighter vehicles with static hydraulic driving, large self -propelled flat transport vehicles, beams transportation vehicles, self -propelled high -altitude lifting platforms and other mechanical vehicles.
Composition
Dynamic system, hydraulic control system, hydraulic oil filter temperature control system and electric control system, data acquisition test system
Hydraulic test stands Company Information
Jinan Hailande Hydraulic Co., Ltd. was founded in 2007. Since its establishment of the company, Harand has always adhered to the business philosophy of "making high -end products in China's hydraulic practical field", focused on deepening adjustment, hard practice, and highlighting "solving hydraulic users "Confusion" is the strategic focus.

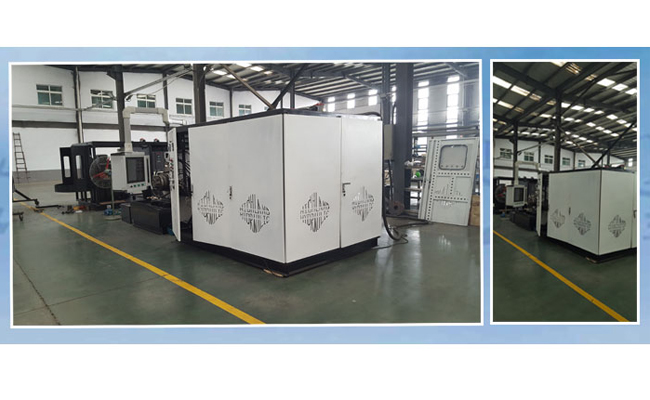

Hydraulic test stands Reference Cases
