| Categories | Hydraulic Test Stands |
|---|---|
| Brand Name: | HIGHLAND |
| Model Number: | YST380 |
| Certification: | CE |
| Place of Origin: | China Dezhou |
| MOQ: | 1 sets |
| Price: | USD30000~86800/set |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10 sets per month |
| Delivery Time: | 30~60 working days |
| Packaging Details: | Plastic film packaging |
| Power: | 90 kw |
| Name: | hydraulic test bed |
| Pressure: | 35 mpa |
| Model:: | YST380 |
| Flow rate: | 380 L/min |
| Tank volume: | 2000L |
| Warranty: | 1 year |
| Motive force: | Electromotor |
| Medium: | Hydraulic oil |
| Product name: | Hydraulic test stand of pump truck has complete functions |

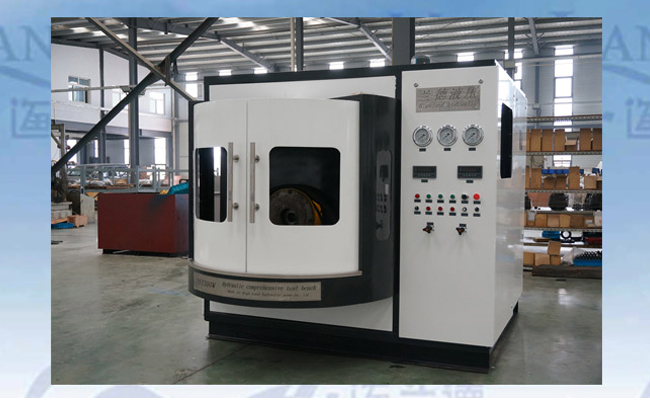

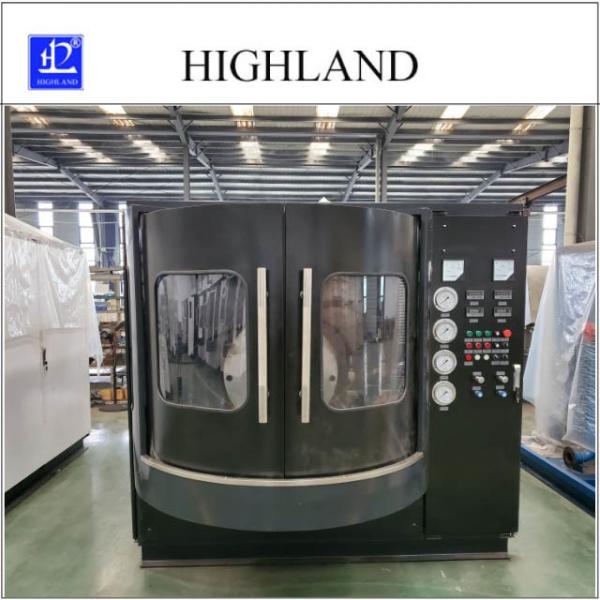

Hydraulic test stand of pump truck has complete functions
Description Hydraulic test stand
YST Series Hydraulic testing table are used for checking and
proofreading the products that hydraulic system's breakdown
diagnosis.These products are researched and produced by
ourselves,so we could combine conduct according to customers'
needs.
Hydraulic test stand Standard Specification
Technical parameter
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Application Hydraulic test stand
Manufacturing technical parameters of hydraulic ram test bench:
Flow rate: 300-500L/min
Pressure: 35-40MPa
Power: 75-160KW
Motive force: Electromotor
