| Categories | Lab Muffle Furnace |
|---|---|
| Brand Name: | SUPER |
| Model Number: | SP-1200B |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 400sets/month |
| Delivery Time: | 10-15 working days after down payment |
| Packaging Details: | strong plywood case for export |
| Name: | Muffle Ovens Laboratory |
| Max temperature: | 1200C |
| operation temperature: | 1100C |
| Feature: | High Temp |
| heating element: | Fe-Cr-Al-Mo wire |
| heating rate: | 0-20℃/min |
| temperature accuracy: | +/-1℃ |
| furnace structure: | double shells |
| volume: | 12L |
| Power source: | electric |

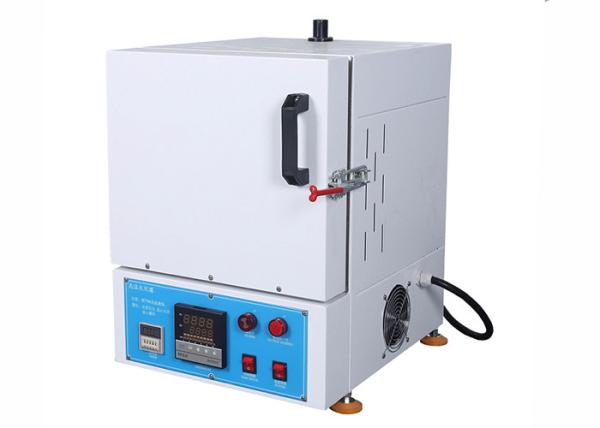

1200C Muffle Ovens Laboratory High Temp Double Shells
Muffle Ovens Laboratory Application:
Muffle Ovens Laboratory is widely used in colleges and universities, scientific research institutes, industrial and mining enterprises to do high-temperature sintering, metal annealing, chemical industry, metallurgy, ceramics, new material development, organic material ash, quality testing
Muffle Ovens Laboratory technical data :
| Items | Specification |
| Product | SP-1200B-12L chamber electric lab muffle furnace |
| Useful chamber size | 200*200*300mm(12L W * H* D) |
| Max Temp | 1200℃ ( < 3 hrs) |
| Working Temp | 0-1100℃ (adjustable, for long time ) |
| Temp accuracy | ±1 ℃ |
| Heating rate | 1-20℃/min (adjustable,advise less than 15℃/min) |
| Heating Element | Resistance wire |
| Furnace liner | Light durable ceramic fiber plate |
| Rated Power: | 5KW |
| Furnace shell | Double shells with fan cooling |
| Temp. measurement | By K type thermocouple |
| Temp. Control | 30 segments programmable and PID auto control |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Furnace surface temperature | ≤55.C |
| Working Voltage | AC,1-phase ,220V ,50/ 60HZ |
| Optional part | Can be connected with computer if customer need |
| Freebies | 1.oven glove 1 set ; 2. Pliers 1pc |
Standard model of box lab muffle furnace:
| Model | Max. temp | Chamber Size | Working voltage &power |
| SP-1200B-1L | 1200℃ | 100x100x100mm(4”x4”x4”) | AC,1-phase,220V/1KW |
| SP-1200B-3.4L | 1200℃ | 150x150x150mm(6”x6”x6”) | AC,1-phase,220V,1.6KW |
| SP-1200B-4.5L | 1200℃ | 150x150x200mm(6”x6”x8”) | AC,1-phase,220V.2KW |
| SP-1200B-8L | 1200℃ | 200x200x200mm(8”x8”x8”) | AC,1-phase,220V,4KW |
| SP-1200B-12L | 1200℃ | 200x200x300mm(8”x8”x12”) | AC,1-phase,220V,5KW |
| SP-1200B-18.8L | 1200℃ | 250x250x300mm(10”x10”x12”) | AC,1-phase,220V,6KW |
| SP-1200B-36L | 1200℃ | 300x300x400mm(12”x12”x16”) | AC,1-phase,220V,7.5KW |
| SP-1200B-49L | 1200℃ | 350x350x400mm(14”x14”x16”) | AC,1-phase,220V,9KW |
| SP-1200B-64L | 1200℃ | 400x400x400mm(16”x16”x16”) | AC,3-phase,380V,11KW |
| SP-1200B-125L | 1200℃ | 500x500x500mm(20”x20”x20”) | AC,3-phase,380V,15KW |
| SP-1200B-216L | 1200℃ | 600x600x600mm(24”x24”x24”) | AC,3-phase,380V,18KW |
Warranty: One year limited warranty with lifetime support, excluding heating element
and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage
from wrong operate and use are not under this coverage
|
