| Categories | Lab Muffle Furnace |
|---|---|
| Brand Name: | SUPER |
| Model Number: | SP-1200T |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 300sets per month |
| Delivery Time: | 10-15working days after down payment |
| Packaging Details: | strong plywood case for export |
| name: | Lab muffle furnace |
| operation temperature: | 1100℃ |
| heating element: | Fe-Cr-Al-Mo resistance wire |
| insulation material: | light alumina ceramic fiber board |
| furnace chamber: | can be opened |
| tube diameter: | 40/60/80mm/100mm |
| temperature control: | 30segments programmable and PID auto control |
| thermocouple: | K type |
| temperature accuracy: | ±1℃ |
| Max. vacuum: | -0.1MPa |

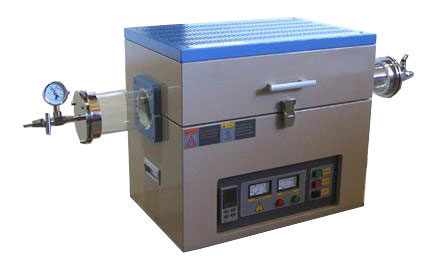

1200C laboratory heating vacuum tube lab muffle furnace use high pure alumina or quartz tube as furnace chamber with excellent heat-insulation effect and symmertrical temperature uniform. Working temperature from 800℃ to1200℃ is available.Precise and advanced auto temperature controller with temperature accuracy+/-1C.
Lab muffle furnace widely used in the labs of university and Research Institution, also can used in factory for production.It have below outstanding features:
1: Precise and advance temperature controller.
2:Excellent heat-insulation effect.
3:Symmerterical temperature uniform.
4:Can Protect the heating sample from pollution.
5: Can flow into various atmosphere.
6:Max Vacuum can upto -0.1MPa
Technical parameter of tube lab muffle furnace :
| Product name and model | SP-1200T Quartz Tube Lab Muffle Furnace |
| Heating tube size(OD×L) | Φ 50 x300 mm (2.0 "x12") |
| Chamber insulation materials | lightweight aluminum oxide fiber Ceramic |
| Maximum Temperature | 1200°C (Working time Not more than 3 hours.) |
| Working Temperature | 400-1100°C (justierbar, continuously Work) |
| Temperature controller way | Based on the microprocessor 30 segments programmable and PID auto control |
| Heating Rate | 1--15°C/min (justierbar) |
| Temperature accuracy | +/-1°c |
| Sensor of measuring Temperature | K type thermocouple |
| Heating elements | Resistance wire |
| Ultimate vacuum | -0.1MPa |
| Vacuum pump specifications Model | TW-0.5A;pumping rate:0.5L/s;Power:120W |
| Furnace shell structure | Double ventilation cooling structure |
| Cooling way | fan cooling |
| Temperature display mode | four figure liquid crystal display |
| Working power | AC 1-phase, 110-240 V 50/60Hz (User Choose any) |
| Rated power | 3.5KW |
| Spare function | installed computer communication module and RS485 communication interface, to realize the remote control |
Delivery times :
♥For some normal standard size lab muffle furnaces and components, we have in stock; So we can send out in 3-5 days;
♥Other customized sizes lab muffle furnace the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support,
excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and
any damage from wrong operate and use are not under the coverage of
One Year Limited Warranty.
Our advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber
and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
|
