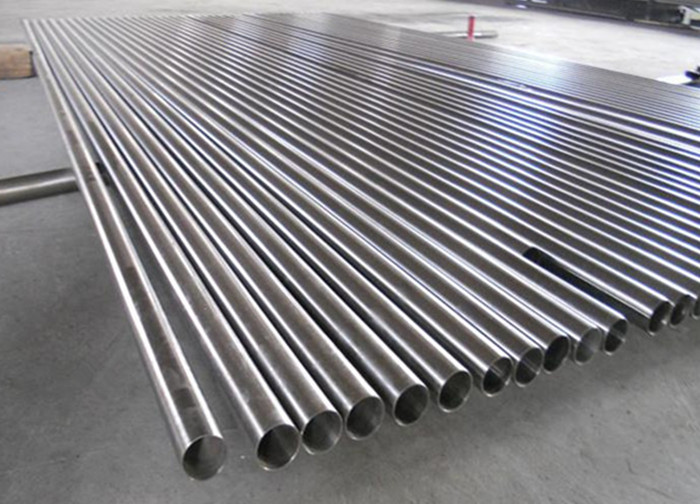

8x1mm High Precision SS Capillary Tube ASTM A269 304 304l Stainless Steel Capillary Pipe

8x1mm High Precision SS Capillary Tube ASTM A269 304 304l Stainless Steel Capillary Pipe

8x1mm High Precision SS Capillary Tube ASTM A269 304 304l Stainless Steel Capillary Pipe
8x1mm High Precision SS Capillary Tube ASTM A269 304 304l Stainless Steel Capillary Pipe
Categories SS Capillary Tube
Brand Name: BWSS
Model Number: TP304/TP316L/TP904L
Certification: PED, ISO, GOST
Place of Origin: CHINA
MOQ: 0.5-1TONS
Price: Negotiable
Payment Terms: T/T
Supply Ability: 1000 tons per month
Delivery Time: 20 days
Packaging Details: Each in PVC bags, than in Bundles
Application: Gas
Material Grade: TP304/304L
Outer Diameter: 10mm
Wall Thickness: 1mm
Length: cut into pcs
Process Method: Welded,precision rolled,cold drawn
Standard: ASTM/AISI ,GB,JIS,DIN,EN,etc
Surface Finish: 180G, 320G, 400G Satin / Hairline,400G, 500G, 600G or 800G Mirror finish
Type: High Precision Stainless Steel Tubing / Tube
Package: Wooden Case
Contact Now
Company Info.
Spezilla Tube Co., Ltd. (Shanghai)
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

8x1mm High Precision SS Capillary Tube ASTM A269 304 304l Stainless Steel Capillary Pipe

ASTM A269 304 304l Stainless Steel Capillary Tube pipes 8x1mm


Stainless Steel Capillary Pipes & Tubes are used in different applications of intra/extra cellular biology, separation sciences, hematology sampling and study, biotechnology, and biochemistry. Capillary Tube is a long, narrow tube of constant diameter.


We manufacture special sizes of Stainless steel 304/304L capillary tubing’s also called as Stainless steel 304/304L surgical tubes which are critical and used in various Instrumentation, Medical and Heat treatment industry.


Surface conditions for Stainless steel 304/304L capillary pipes and tubes:

  • Stainless steel 304/304L Bright Annealed capillary pipes and tubes
  • Stainless steel 304/304L Polished capillary pipes and tubes
  • Stainless steel 304/304L Annealed & Pickled capillary pipes and tubes
  • Stainless steel 304/304L Bright Annealed & polished capillary pipes and tubes
  • Stainless steel 304/304L Electro polishing capillary pipes and tubes

Stainless Steel Capillary Tube Size Range:



Gauge		Outside Diameter Tolerance mmRegular Wall Thickness (RWT) mmThin Wall Thickness mmExtra Thin Wall ThicknessmmUltra Thin Wall Thickness mm
300.304 – 0.3170.064 – 0.089
29o.330 – 0.3420.064 – 0.089
280.355 – 0.3680.076 – 0.102
270.406 – 0.4190.089 – 0.1150.064 – 0.089
260.457 – 0.4690.089 – 0.114
250.508 – 0.5200.115 – 0.1400.089 – 0.114
240.558 – 0.5710.114 – 0.1400.089 – 0.1140.051 – 0.102
230.635 – 0.6470.140 – 0.1650.089 – 0.1140.051 – 0.102
220.711 – 0.7230.140 – 0.1650.096 – 0.1210.077 – 0.1020.051 – 0.102
210.812 – 0.8250.140 – 0.1650.102 – 0.1270.051 – 0.102
200.901 – 0.9140.108 – 0.1650.108 – 0.134
191.054 – 1.0790.166 – 0.2160.102 – 0.1400.070 – 0.108
181.257 – 1.2820.191 – 0.2410.127 – 0.1650.083 – 0.1210.051 – 0.102
171.460 – 1.4850.177 – 0.2290.115 – 0.1520.083 – 0.1270.057 – 0.102
161.638 – 1.6630.204 – 0.2540.127 – 0.1650.096 – 0.1330.070 – 0.121
151.816 – 1.8410.204 – 0.2540.127 – 0.1650.096 – 0.1340.070 – 0.121
142.082 – 2.1330.216 – 0.2920.165 – 0.2290.114 – 0.1650.076 – 0.134
132.387 – 2.4380.267 – 0.3430.191 – 0.267
122.743 – 2.7490.267 – 0.321
113.023 – 3.0730.293 – 0.3680.216 – 0.292
103.378 – 3.4290.318 – 0.3940.216 – 0.292

Specification:ASTM,ASME,DIN,NFA,JIS


Size : 9.52 mm O.D to 50.80 mm O.D

Thickness : 0.7 mm to 3.68 mm

Schedules : SCH. 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XXS.

Length : Single Random, Double Random & Required Length

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes

End : Plain End, Beveled End


TYPE:

SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED


Grade of stainless steel capillary pipes & tubes:

304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.


Non-Ferrous Capillary pipes & tubes:

Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.

FORM:
ROUND, STRAIT, HYDRAULIC ETC.

LENGTH:
SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH

END:

PLAIN END, BEVELED END.


Applications Of Stainless Steel Capillary Tube

  • Medical device industry – injection needle tube, puncture needle tube
  • Industrial electric heating tube, oil tube
  • Temperature sensor, Sensor tube, Instrument tube
  • Automobile tube
  • Food industrial pipe,

Capillary tubes are used in applications, such as:

  • Chromatography
  • Gas and liquid lines
  • Measurement components in remote thermometer systems (with or without compensation)

Stainless Steel Capillary Tubes for medical needle applications and applicable fields:

  • Hydraulic control lines with seamless coil tubing
  • Marine seamless coil tubing
  • Oilfield test cable coil tubing
  • High-pressure instrumentation coil tubing
  • Health and medical grade seamless coil tubing
  • Cold heat exchanger seamless coil tubing
  • Coal mine detection seamless coil tubing
  • Deep-sea oil drilling seamless coil tubing
  • Instant water heater with seamless coil tubing
  • Water dispenser beverage machine with coil tubing
  • Refrigerating Equipment, Condensers
  • Beverage Machinery, machines in brewery industry
  • Evaporators,Heat Exchanger
  • Liquid/ Gas Transportation
  • CNG with coil tubing
  • Other Industries

Advantage:


• Advanced production and inspection equipment

• Top quality control system and service system

• Professional & Sincerity

• Competitive Price

• Good Reputation

• Timely Delivery


TypeChemical Composition(%)
ASTMCCrNiMnPSMoSiCuN
TP304≤0.0818.0-20.08.0-11.0≤2.00≤0.045≤0.030- - -≤1.00- - -- - -
TP304L≤0.03518.0-20.08.0-13.0≤2.00≤0.045≤0.030- - -≤1.00- - -- - -
TP304H0.04-0.1018.0-20.08.0-11.0≤2.00≤0.045≤0.030- - -≤1.00- - -- - -
TP310S≤0.0824.0-26.019.0-22.0≤2.00≤0.045≤0.030≤0.75≤1.00- - -- - -
TP316≤0.0816.0-18.011.0-14.0≤2.00≤0.045≤0.0302.00-3.00≤1.00- - -- - -
TP316L≤0.03516.0-18.010.0-14.0≤2.00≤0.045≤0.0302.00-3.00≤1.00- - -- - -
TP316N≤0.0816.0-18.011.0-14.0≤2.00≤0.045≤0.0302.00-3.00≤1.00- - -0.10-0.16
TP317L≤0.03518.0-20.011.0-15.0≤2.00≤0.045≤0.0303.0-4.0≤1.00- - -- - -
TP321≤0.0817.0-19.09.0-12.0≤2.00≤0.045≤0.030- - -≤1.00- - -≤0.10
TP321H0.04-0.1017.0-19.09.0-12.0≤2.00≤0.045≤0.030- - -≤1.00- - -- - -
TP347≤0.0817.0-19.09.0-13.0≤2.00≤0.045≤0.030- - -≤1.00- - -

- - -
