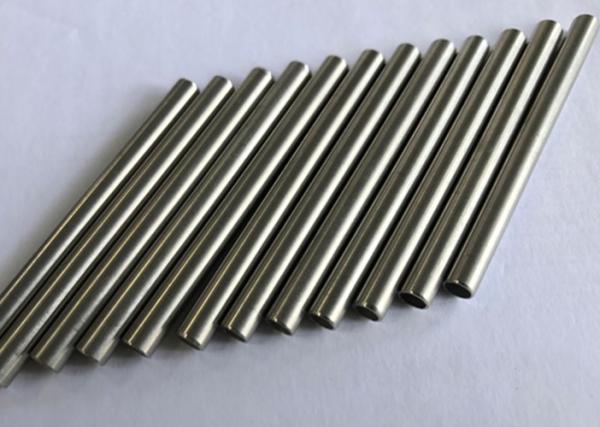

Cold Rolled Seamless Steel Pipe , Metal Capillary Tube 4x0.5mm For Instrumental

ASTM A269 AISI 304 Stainless Steel Cold Rolled Capillary Tubes 4x0.5mm

1. Products Specification

Capillary Pipes Tubes &OCTG, CRA (Corrosion-Resistant Alloy) Seamless Tubes,Stainless Steel , Super Duplex , Duplex , Welded & Seamless, Carbon Steel Seamless Pipes, Tubes, Capillary Pipes & ‘U’ Tubes for applications in oil & gas, LNG, Thermal & Nuclear Power Plants, Chemical Industries, Fertilizers Plants, (petro) chemical, shipbuilding, desalination, water treatment, energy industries, EPC and Pipes for General Engineering Purpose.

RANGE of Stainless Steel Capillary pipes and tubes:

0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.

TYPE:

SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED

Grade of stainless steel capillary pipes & tubes:

304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Non-Ferrous Capillary pipes & tubes:

Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.

FORM:
ROUND, STRAIT, HYDRAULIC ETC.

LENGTH:
SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH

END:

PLAIN END, BEVELED END.

Capillary tubes with a maximum bore of 0.0158 in., available in a wide range of stainless steels. Sandvik capillary tubes are characterized by tight tolerances, and the inside surface of the tubes is free from oil, grease and other particles. This ensures, for example, an optimized and even flow of liquids and gases from the sensor to the measuring instrument.

Quick Detail:

Manufacturing to: ASTM A269, DIN 17458/EN10216-5 TC1, D3/T3, D4/T3 NACE MR.01.75/77, Cert To EN 10204 3.1
T est: 100% Eddy Test or Hydrostatic Test, UT Test
Delivery Condition: Annealed & Pickled, Annealed & Pickled + Polished

Capillary tubes are used in applications, such as:

• Chromatography
• Gas and liquid lines
• Measurement components in remote thermometer systems (with or without compensation)

Advantage:

• Advanced production and inspection equipment

• Top quality control system and service system

• Professional & Sincerity

• Competitive Price

• Good Reputation

• Timely Delivery

Chemical Element Analysis

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
