Iso Standard Yokohama Pneumatic Fender 3.3*6.5m 50 Kpa For Dock

Categories Yokohama Rubber Fender
Brand Name: DockFender
Model Number: DF-3300*6500
Certification: ISO17357-1:2014
Place of Origin: CHINA
MOQ: 1 Piece
Price: USD580-2100 One Piece
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2650 PCS Per Month
Delivery Time: 6 Work Days
Packaging Details: Pallet, Wooden Case, or as required
Product Name: ISO17357-1:2014 Standard Yokohama Pneumatic Fender 3.3*6.5m 50kPa For Dock
Diameter: 300-4500 mm
Length: 1000-12000 mm
Energy Absorption: 6-6473 KJ
Reaction Force: 64-7984 KN
Certificate: ISO9001/14001 BV CCS ABS
Lifespan: 15-20 Years
Application: STS operations
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

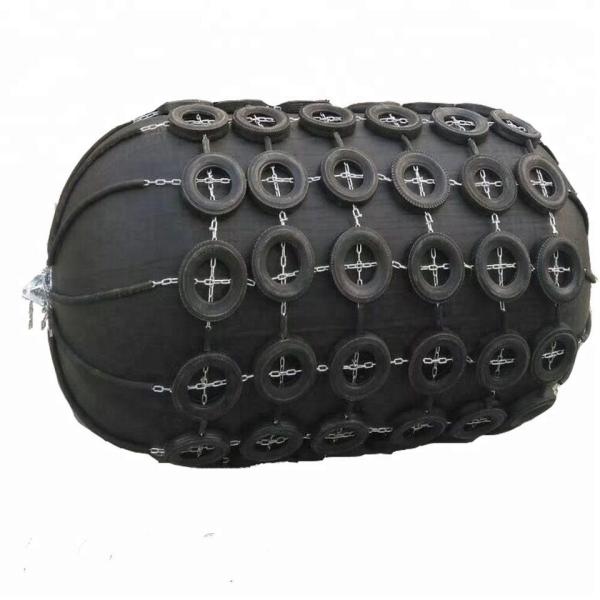

Iso Standard Yokohama Pneumatic Fender 3.3*6.5m 50 Kpa For Dock

ISO17357-1:2014 Standard Yokohama Pneumatic Fender 3.3*6.5m 50kPa For Dock


Description


Pneumatic rubber fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.

Pneumatic Yokohama fenders of diameter 2500mm and larger sizes shall be equipped with a safety valve for releasing excess internal pressure
when the fenders are over-compressed accidentally. Fender which is smaller than 2500mm in diameter can also be equipped with a safety valve if requested.


Specifications


Place of OriginChina
Brand NameDockFender
Model NumberDF-YF4500
MaterialNatural Rubber
ColorBlack
Application

In ports with extreme tidal variations

Ship-to-ship lightering operations

Oil & Gas (typically FSRU)

Temporary berthing

NameISO17357-1:2014 Standard Yokohama Pneumatic Fender 3.3*6.5m 50kPa For Dock
FeatureHeat Resistance
SampleUsually free
Production MethodMoulding
Temperature~40-120 degree
PackingPallets
Lead time7-14 days

Diameter x Length
[mm]
50kPa
Performance Data
80kPa
Performance Data
Hull Pressure
at GEA
/ kN / m2
Reaction Force
/ kN
Energy Absorption
/ kNm
Hull Pressure
at GEA
/ kN / m2
Reaction Force
/ kN
Energy Absorption
/ kNm
1000 x 15001221823216023945
1000 x 20001322574517433863
1200 x 20001262976316639088
1350 x 2500130427102170561142
1500 x 3000153579153174761214
1700 x 3000128639191168840267
2000 x 35001288753081681150430
2500 x 400013713816631801815925
2500 x 5500148201994319526531317
3300 x 45001301884117517124761640
3300 x 65001463015181419139612532
3300 x 106001585257306720869074281
4500 x 90001465747475219275516633
* Other size can be produced follow client's requirements.

Features


1. High energy absorption.

2. Super low reaction force.

3. The inclined contact is good during the operation.

4. Thick outer skin supersedes that of a normal surface fender.

5. The rubber pneumatic fender will be floating on the water, even the ship swings, it can be applied.


Applications


● Submarines

● Semi-submersible oil rigs

● Ship to ship transfer

● Ship to shore

● Bunkering

● Port high tidal variations

● Temporary berthing

● Large standoff


Advantages


Our pneumatic fender as a protective medium is suitbale for ship to ship contact, ship to dock and ship to berthing.
It is light weight,portable and floatable, can be installed, replaced easily and reused 6-8 years without misuse.
We have provided pneumatic fenders to marine service and offshore service for varieties ships.
Low reaction force and high energy absorption fenders with CCS,BV certificate.
