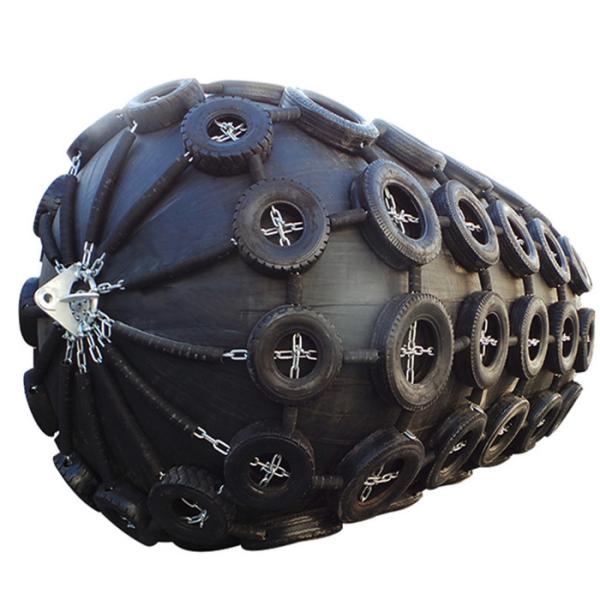

STS Operations Yokohama Rubber Fender 3.3M ISO17357 Standard

Categories Yokohama Rubber Fender
Brand Name: DockFender
Model Number: DF-3.3*6.5M
Certification: ISO17357-1:2014
Place of Origin: China
MOQ: 1 Piece
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 PCS Per Month
Delivery Time: 5-8 Work Days
Packaging Details: Pallet, Wooden Case
Product Name: STS Operations Yokohama Fenders Natural Rubber 3.3M ISO17357 Standard
Material: Natural Rubber
Reinforcement: Nylon Cord
Sheath: Chain Tyre Net
Diameter Range: From 0.5m to 4.5m
Spare Parts: Pressure Gauge, Air Valves, Inflation Tube
Certificates: DNV, BV, ABS, CCS
Warranty Period: 2 Years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

STS Operations Yokohama Rubber Fender 3.3M ISO17357 Standard

STS Operations Yokohama Fenders Natural Rubber 3.3M ISO17357 Standard


Description


Yokohama fender is a kind of berthing buffer and protection marine equipment, which is widely used in LNG vessels, offshore platforms, port terminals and other fields. Yokohama fenders are more practical and economical than general marine fenders, so they are very popular. They are manufactured according to ISO 17357-1:2014. It can be easily compressed, allowing simple and cost-effective relocation and re commissioning in other locations.

Yokohama fender is divided into sling type, CTN type, submarine type and special sheath type. Each type plays a key role in protecting the safety of marine operations.

Yokohama fender has high energy absorption and reaction. At the same time, it has the advantages of low cost, long service life, simple installation and maintenance, etc. It is a protective equipment installed at the dock and ship to ship operation.


Specifications


Place of OriginChina
Brand NameDockFender
Model NumberDF-3.3*6.5M
Product NameSTS Operations Yokohama Fenders Natural Rubber 3.3M ISO17357 Standard
MaterialHigh Performance Natural Rubber
Warranty3 Years
After-sale ServiceFree Spare Parts
Quality CertificationISO17357-1:2014
Safety StandardABS, BV, SGS
AccessoriesValve, Pressure Gauge, Inflation Rod, Wrench
ColorCustomers' Requirements
Diameter500mm-4500mm
Length1000mm-12000mm
ApplicationPort, Dock, Boat


Diameter x Length
[mm]
50kPa
Performance Data
80kPa
Performance Data
Hull Pressure
at GEA
/ kN / m2
Reaction Force
/ kN
Energy Absorption
/ kNm
Hull Pressure
at GEA
/ kN / m2
Reaction Force
/ kN
Energy Absorption
/ kNm
1000 x 15001221823216023945
1000 x 20001322574517433863
1200 x 20001262976316639088
1350 x 2500130427102170561142
1500 x 3000153579153174761214
1700 x 3000128639191168840267
2000 x 35001288753081681150430
2500 x 400013713816631801815925
2500 x 5500148201994319526531317
3300 x 45001301884117517124761640
3300 x 65001463015181419139612532
3300 x 106001585257306720869074281
4500 x 90001465747475219275516633
* Other size can be produced follow client's requirements.

Notices


1. Release the straps that secure the fenders to the pallet or skid.

2. Unfold the fender so that it can inflate freely.

3. Keep the blocks available to stop the fenders from rolling when inflated.

4. Make sure the compressor has a dryer - don't fill the fenders with moist air.

5. Use fork protectors when moving the fenders.

6. It can only be lifted from lifting points or chains and tire nets.

7. Avoid touching sharp edges.


Applications


Ship-to-ship operations

Oil and gas

Submarines

Bunkering

Temporary berthing


Advantages


Fully compliant with ISO 17357-1:2014.

Economical, low maintenance.

Proportional increase of energy and reaction.

Original factory, best price.

With excellent oil resistance, heat resistance, anti-aging properties.
