MU33 1.4GHz Wilreless Video Mobile Ad Hoc Networking For Robot UAV UGV USV

Categories Ad Hoc Network
Brand Name: Suntor
Model Number: MU33
Certification: CE
Place of Origin: China
MOQ: 1PCS
Price: Checking with Sales
Payment Terms: T/T
Supply Ability: 5000pcs/month
Delivery Time: in 12 days
Packaging Details: normal packing
Working frequency: 1438MHz
Bandwidth: 1/2/10/20 MHz
RF power: 2W
Video input: IP network and WIFI
Transmission distance: 10KM
Size: 163*113*54mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

MU33 1.4GHz Wilreless Video Mobile Ad Hoc Networking For Robot UAV UGV USV

MU33 Unmanned System Mesh Radio Specifications-v1....


1. Quick detail Of Wilreless video mobile Ad-Hoc networking


----- Typical Working frequency: 1.4GHZ


----- Bandwidth: 2/5/10/20MHz


----- Power supply: DC15-36V


----- Transmission Rate: 90Mbps


----- Modulation: COFDM


----- Support for 52 nodes


----- Multiple talk groups


----- Secure/Encryption: AES128/AES256


----- Receive sensitivity:-97dbm


2. Description of Wilreless video mobile Ad-Hoc networking


Suntor has developed a versatile datalink that delivers unprecedented throughput, range and robustness to UGV and UAV communication scenarios, from air to ground to sea and everywhere in-between. Using a proprietary self-healing, self-forming mesh network that unites multiple assets, Suntor is your single-radio solution to enable convoy, relay and swarm capability between multiple manned and unmanned systems.


The system adopts co-frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.


The transmission distance can reach more than 10km in the open environment on the ground, 300-1000m in the blocking environment (depending on the blocking environment), and more than 30km from air to ground.


3. Specification of Wilreless video mobile Ad-Hoc networking


System Parameter

Operating frequency1438MHz
Bandwidth1/2/5/10/20MHz,Flexible and configurable
Transmission systemCOFDM
Modulation modeBPSK/QPSK/16QAM/64QAM(self-adaption)
Transmission capacityPeak rate 90Mbps@20MHz
RF Transmitted power2W
Receive Sensitivity-97dBm@1MHz
Video inputSupport IP network video input and WIFI video access(HDMI/AV need to be customized)
Networking functionNetworking capable≥52 nodes
Networking hops>10 hops
Access time5s after start up of the system
Network topologyCenterless network, star network, chain network, mesh network, etc
Encryption modeDES (default) AES128 / AES256 (Optional)
Power supply moldDC 15-36V supply
Power Consumption≤30W

Equipment interface

Antenna interfaceN type×2
GPS interfaceSMA surface
WIFI interfaceSMA surface
Ethernet interfaceAviation interface

Physical indicators

Dimension≤163×113×54mm
Equipment Weight≤660g
Protection degreeIP65
Working temperature-30℃~+65℃

4. Feature of Wilreless video mobile Ad-Hoc networking


1. Centerless self-organizing----Node status is equal, that is, it can be used as terminal node, relay node or central node


2. Any organization networking---Nodes automatically identify and select the optimal route for bandwidth data


3. Security and confidentiality---Layer-by-layer encryption through operating frequency, carrier bandwidth, scrambling code, etc., supports AES128/256


4. Anti-interference, anti-destruction---Using COFDM, MIMO, AQR and other technologies to improve data bandwidth and anti-interference performance


5. Multi-node flexible networking---According to the channel quality, rate, bit error and other indicators, automatically calculate the link routing, flexible networking

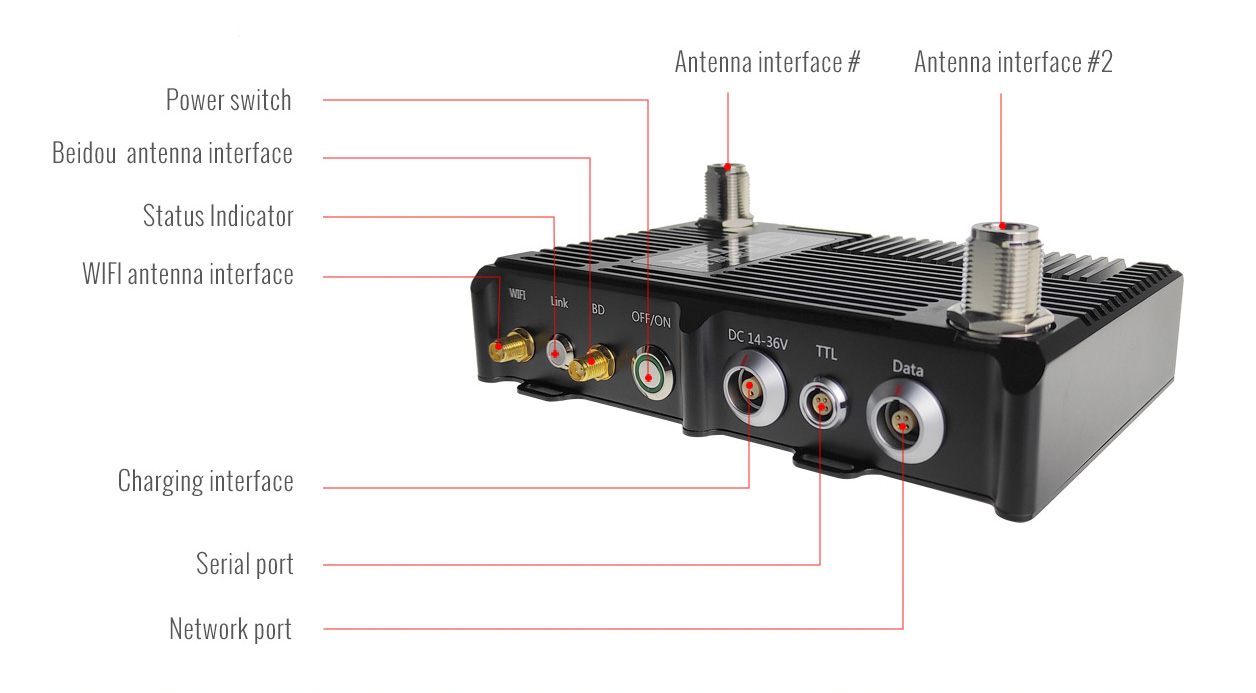

5. Interface of Wilreless video mobile Ad-Hoc networking

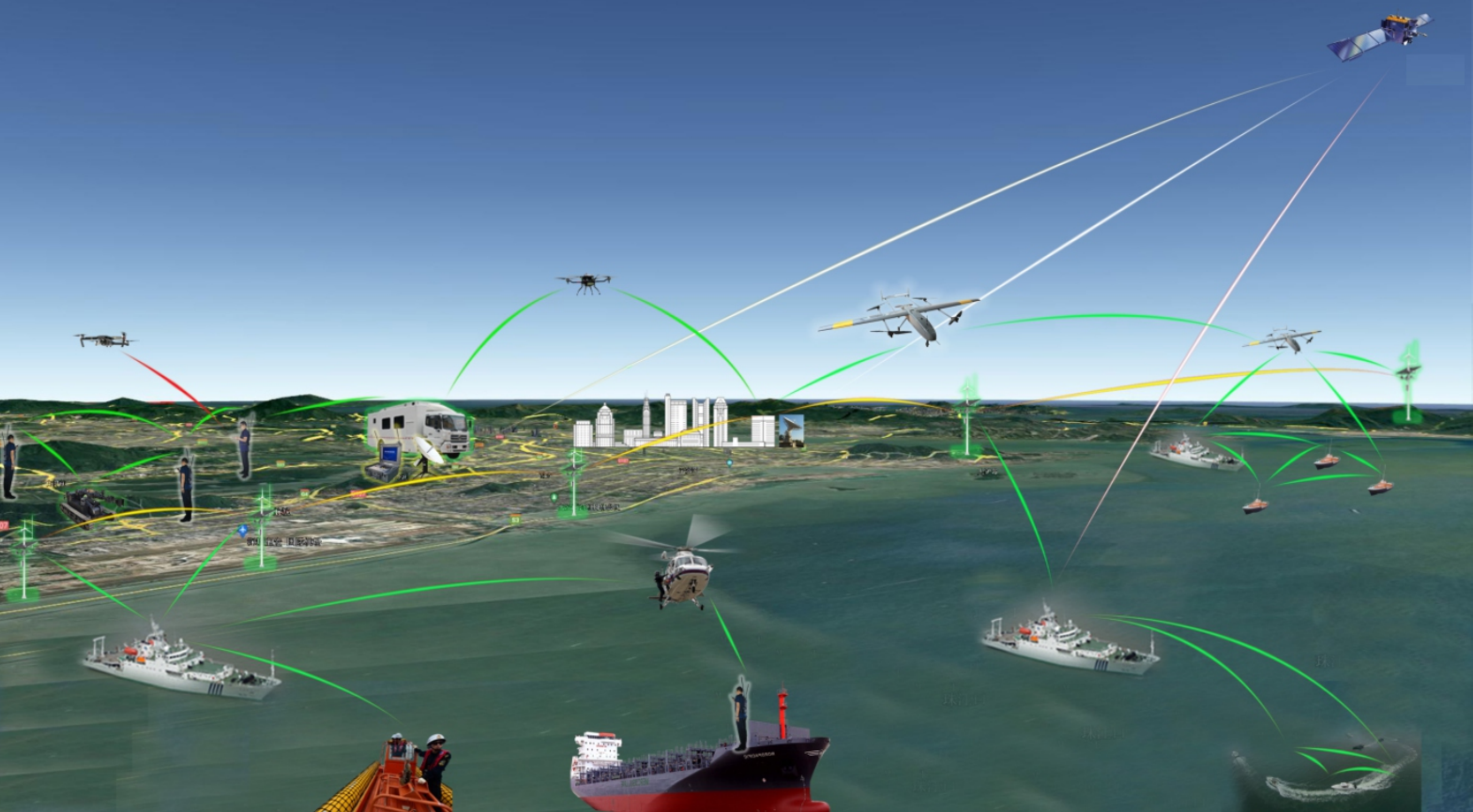

6. Application of Wilreless video mobile Ad-Hoc networking
Suitable for UVA, unmanned vehicles, unmanned boats, robots, and other application scenarios with lightweight networking requirements,fast network access, automatic multi-hop relay, can quickly form an interconnected three-dimensional network with handheld individual soldier system, vehicle-mounted system and surrounding base station networking equipment to achieve efficient collaboration
It can provide wireless broadband communication as soon as possible for emergency response, anti-terrorism and anti-riot, covert reconnaissance, special operations, rescue and disaster relief, daily patrols and other "peace and emergency" tasks.
7. Accessories of Wil reless video mobile Ad-Hoc networking
1 X Unmanned System Radio Host X1
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Network port air plug
1 X Serial Port air plug
1 X Power cable
8. FAQ

Q1. May I have a sample order for Wilreless video mobile Ad-Hoc networking

A1: Yes, we welcome sample order to test and check quality.


Q2. What about the lead time?

A2: Sample needs 5-7 days, mass production needs 1-2 weeks.


Q3. Do you have any MOQ limit for Unmanned System Radio?

A3: 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?

A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. Is it OK to print my logo on COFDM Transmitter product?

A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
