| Model Number: | MB33 |
| Place of Origin: | China |
| Brand Name: | SUNTOR |
| Certification: | FCC, CE, RoHS |
| MOQ: | 1 set |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 set/ month |
| Price: | Negotiable |
| Delivery Time: | 5-8 work day |
| modulation: | COFDM |
| Frequency: | 1428~1448MHz |
| RF Transmitted power: | 2W |
| Encryption mode: | AES128/AES256 |
| Power Consumption: | ≤30W |
| Power Supply: | Allocate DC 25.2V removable lithium battery |
| Dimension: | ≤275mm × 198mm ×52mm（include battery） |
| Protection degree: | IP66 |
| Company Info. |
| Shenzhen Suntor Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
10km Manpack Video Audio Data Transmitter for Other Security&Protection Product Transmitter
MB33 Backpack Mesh Radio Specifications-v1.0_compr...
Introduction:
The MB33 IP MESH is designed for manpack wireless video voice and data communication mission. It can quickly build reliable wireless links for users in complex environments, and provide fast and flexible solutions for various requirements (such as: high-definition video transmission, voice intercom, IP data transmission, etc.).
Features:

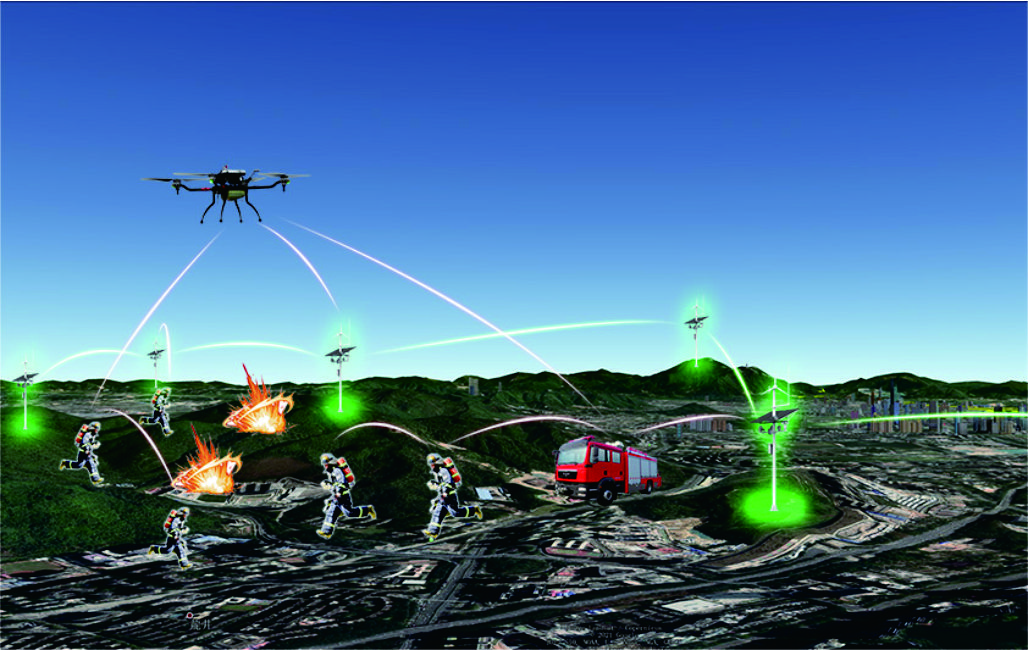

Application:
It is suitable for public security, armed car, fire fighting, and
other fields; it is also suitable for mobile vehicles, ship
equipment, to realize uninterrupted communication between vehicles
and vehicles, vehicles and individual soldiers, and individual
soldiers and individual soldiers.
| System Parameter | ||
| Operating frequency | 1428~1448MHz | |
| Bandwidth | 5/10/20MHz,Flexible and configurable | |
| Transmission system | COFDM | |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
| Transmission capacity | Peak rate 90Mbps@20MHz | |
| RF Transmitted power | 2W | |
| Receive Sensitivity | -97dBm@1MHz | |
| Video input | Support IP network video input , WIFI video access (HDMI video input need to be customized) | |
| Networking function | Networking capable | ≥52 nodes |
| Networking hops | ＞10 hops | |
| Access time | 5s after start up of the system | |
| Network topology | Centerless network, star network, chain network, mesh network, etc | |
| Encryption mode | AES128/AES256 | |
| Power supply mold | Allocate DC 25.2V removable lithium battery | |
| Power Consumption | ≤30W | |

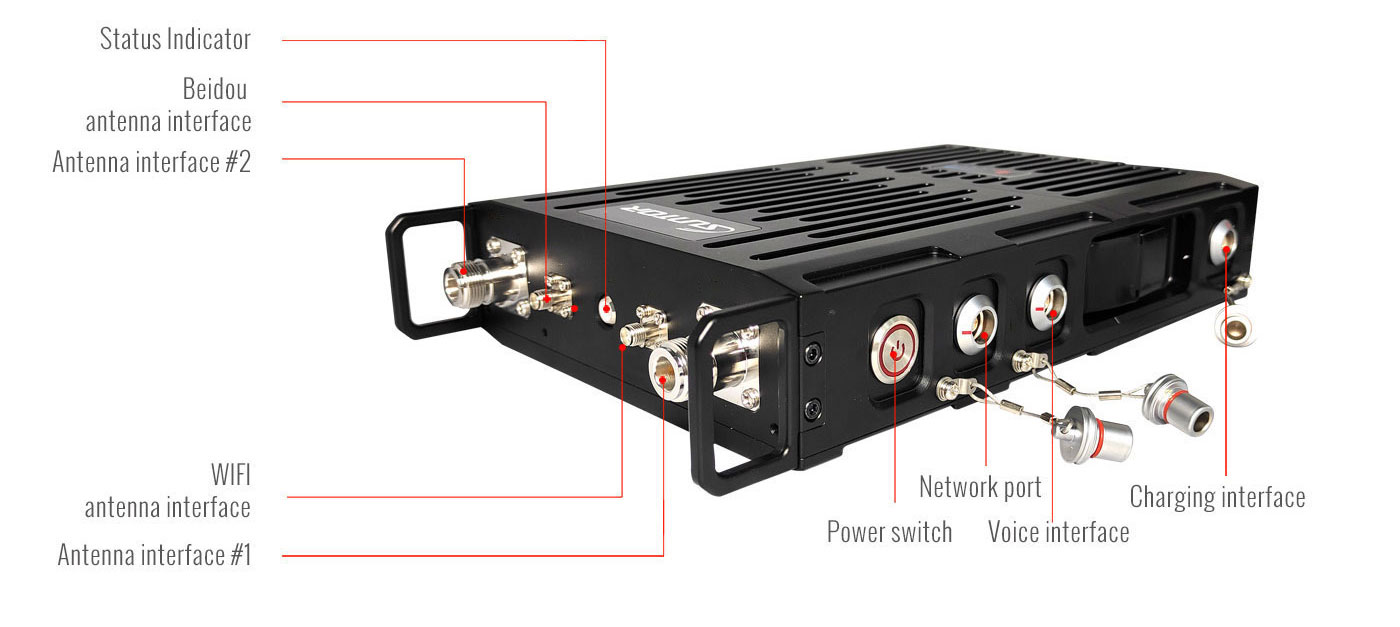

| Equipment interface | ||
| Antenna interface | N-K×2 | |
| GPS interface | SMA-K | |
| WIFI interface | SMA-K | |
| Ethernet interface | Aviation interface,Support 100M network interface | |
| Audio interface | Aviation interface,Support hand microphone or earphone | |
| Physical indicators | ||
| Dimension | ≤275mm × 198mm ×52mm(include battery) | |
| Equipment Weight | ≤3kg(include battery) | |
| Protection degree | IP66 | |
| Working temperature | -30℃～+65℃ | |
|
