| Categories | Electric Pneumatic Regulator |
|---|---|
| Brand Name: | NNT |
| Model Number: | itv2000 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | US＄120 |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000/pieces per month |
| Delivery Time: | 7 days |
| Packaging Details: | carton box |
| NITV2000: | 350g |
| Switch out: | PNP open collector output: Max. 80 mA |
| Voltage: | 24 VDC ± 10%, 12 to 15 VDC |
| Model: | ITV2000 |
| Weight: | 350g |
| Material: | Aluminum |

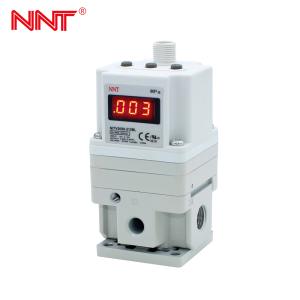

NNT Itv Series Compact Electro-Pneumatic Regulator Elctric Pneumatic Regulator
Product Advantage
1.It can realize remote control and program control.
2.Compared with intermittent control, the system is simplified and the components are greatly reduced.
3.Compared with hydraulic proportional valve, it is small in size, light in weight, simple in structure and low in cost, but its response speed is much slower than that of hydraulic system, and it is also more sensitive to load changes.
4.Low power, low heat, and low noise.
5.There will be no fire and no pollution to the environment. Less affected by temperature changes
Product Components
Pressure Sensor:
1.Recation Speed:0.36s
2.Sensitivity:0.2%F.S. or less
3.Using Differential Signal Output:strong stability,consistent
pressure at different temperatures
4.The circut board has passed the EMC test and has strong
anti-interference,more pressure sensitive
Model | NITV101口 NITV201口 NITV302口 | NITV103口 NITV203口 NITV303口 | NITV105口 NITV205口 NITV305口 |
| Minimum Pressure | Set pressure +0.1MPa | Set pressure +0.1MPa | Set pressure +0.1MPa |
| Set pressure range | 0.005~0.1MPa | 0.005~0.5MPa | 0.005~0.9MPa |
| Linearity | ±1%F.S.below | ±1%F.S.below | ±1%F.S.below |
| Repeatability | ±0.5%F.S.below | ±0.5%F.S.below | ±0.5%F.S.below |
| Sensitivity | 0.2%F.S.below | 0.2%F.S.below | 0.2%F.S.below |
| Temperature | 0~50℃ | 0~50℃ | 0~50℃ |
Company Profile
1.NNT pneumatic component. We have the mature craft and the
production line, the corrosion resistant and robust design along
with a wide range of options makes it ideal for OEM.
2.E/P regulator, Air gripper, Precision regulator, Digital pressure
switch, Flow switch, Air cylinder else.
3.Our company puts most of energy in product quality inspection and
has imported testing equipment to ensure the high quality, so that
we can provide a guarantee of our product and then customers can
use it trustingly.
Contact Us
Whatsapp:+86 17702626719
Wechat:17702626719
Email:Jacob@nntqd.com
FAQ
Q:How can i get the sample to chcek your quality?
A:After price confirmation,you can require for samples to check our product detials.
Q:What can i get the price?
A:We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please tell us in youre email so that we will regard your price priority.
|
