| Categories | Electric Pneumatic Regulator |
|---|---|
| Brand Name: | NNT |
| Model Number: | itv1000 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | US＄110 |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000/pieces per month |
| Delivery Time: | 7 days |
| Packaging Details: | carton box |
| Minimum Pressure: | +0.1MPa |
| Set Pressure Range: | 0.005~0.9MPa |
| Linearity: | ±1%F.S. |
| Mode: | ITV1000 |
| Pressure display unit: | Mpa、kgf/cm2、bar、psi、kPa |

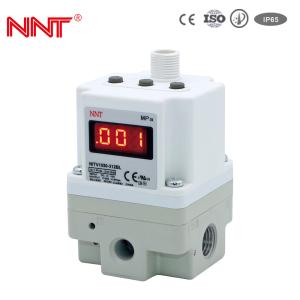

NNT Proportional Regulator 0.2 ~ 1.0MPa Electric Pneumatic Regulator
Product Advantage
1.It can realize the stepless adjustment of pressure and speed, avoiding the impact phenomenon when the normally open on-off valve changes direction.
2.It can realize remote control and program control.
3.Compared with intermittent control, the system is simplified and the components are greatly reduced.
Product Components
Pressure Sensor:
1.Recation Speed:0.36s
2.Sensitivity:0.2%F.S. or less
3.Using Differential Signal Output:strong stability,consistent pressure at different temperatures
4.The circut board has passed the EMC test and has strong anti-interference,more pressure sensitive
Model | NITV101口 NITV201口 NITV302口 | NITV103口 NITV203口 NITV303口 | NITV105口 NITV205口 NITV305口 |
| Minimum Pressure | Set pressure +0.1MPa | Set pressure +0.1MPa | Set pressure +0.1MPa |
| Set pressure range | 0.005~0.1MPa | 0.005~0.5MPa | 0.005~0.9MPa |
| Linearity | ±1%F.S.below | ±1%F.S.below | ±1%F.S.below |
| Repeatability | ±0.5%F.S.below | ±0.5%F.S.below | ±0.5%F.S.below |
| Sensitivity | 0.2%F.S.below | 0.2%F.S.below | 0.2%F.S.below |
| Temperature | 0~50℃ | 0~50℃ | 0~50℃ |
Company Profile
NNT,Guangdong Nuonengtai Automation Technology Co., Ltd.is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation.
Contact Us
Whatsapp:+86 17702626719
Wechat:17702626719
Email:Jacob@nntqd.com
FAQ
Q:How can i get the sample to chcek your quality?
A:After price confirmation,you can require for samples to check our product detials.
Q:What can i get the price?
A:We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please tell us in youre email so that we will regard your price priority.
|
