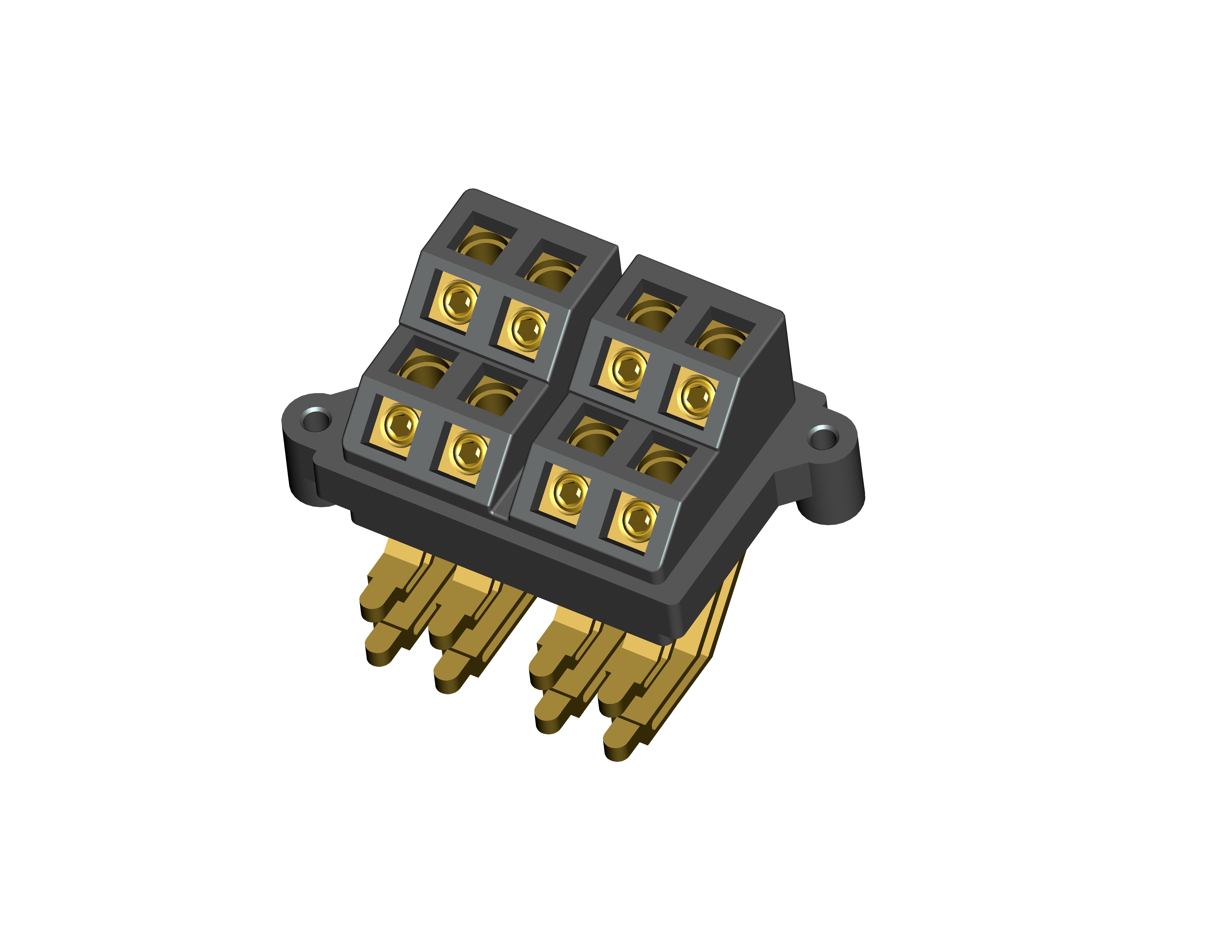

| Categories | Barrier Terminal Block |
|---|---|
| Brand Name: | SANNI |
| Model Number: | BT8-93 |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | USD1.2~2.0 per pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pccs per Month |
| Delivery Time: | 25 working days |
| Packaging Details: | 150pcs per Carton box, |
| Model NO.: | BT8-93 |
| Position: | 8 Postions |
| Shape: | Rectanglular |
| Brand: | RORUDA |
| PCB Mount: | Insert and Welding |
| Samples: | Free samples with freight collect ship |
| Company Info. |
| Dongguan SANNI Electronics Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Descriptions
Using the terminal block is an economical and convenient way to distribute an electrical circuit from a single input source, to several devices in the branch circuit. Thus reducing the total number of wires in your electrical panel and saving your time and money.
Features of Terminal Block
Stable performance
Long life and Good Surface Performance
RoHS Compliant
Applications:
Car amplifier power distribution or audio signal distribution/connection.
Product Specifications
| 1. Materials & Finish Spec | |
| Screw: | Steel , Finish: Nickel plating with Copper underneath |
| Terminal: | Zinc Alloy, Finish: Tin/Nickel/with Copper underneath or Gold plating |
| Body: | PBT or PC UL94-V0 |
| 2. Electrical Characteristics | |
| Rated current: | 35A |
| Rated voltage: | 300VDC |
| Wire range: | 12-22AWG with standing |
| Insulation resistance: | ≥1000OHM |
| Withstand voltage: | 1500V AC/minute |
| 3. Mechanical Specification | |
| Torque: | 15.7Lb/in |
| Installation: | PCB Insertion and Welding |
| Operating temperatures: | -40°C to 85°C |
Our Services
1. Offer 1 year warranty
2. OEM/ODM service to meet all your needs
3. Within 24 hours to reply your inquiries
4. Strong R&D team for technical support
5. Offer free sample for test
FAQ
Q: Can I get sample from you?
A: Yes, we can offer free samples for your testing, please contact us freely and tell us which product you need.
Q: Do you accept customization?
A: Yes, customization is acceptable, please contact our sales staffs for details.
Q: Can you provide help for technical issues?
A: Yes, we have more than 10 years of R&D in the industry. If you need technical support, please feel free to contact us.
|
