| Categories | Barrier Terminal Block |
|---|---|
| Brand Name: | SANNI |
| Model Number: | BT10-093A |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | USD1.5~2.5 per pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs per Month |
| Delivery Time: | 25 working days |
| Packaging Details: | 150pcs per Carton box, |
| Model NO.: | BT10-93A |
| Position: | 10 Postions |
| Brand: | RORUDA |
| Shape: | Rectangle |
| PCB Mount: | PCB Inserting and Soldering |
| Samples: | Freight collect ship for free samples |
| Company Info. |
| Dongguan SANNI Electronics Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

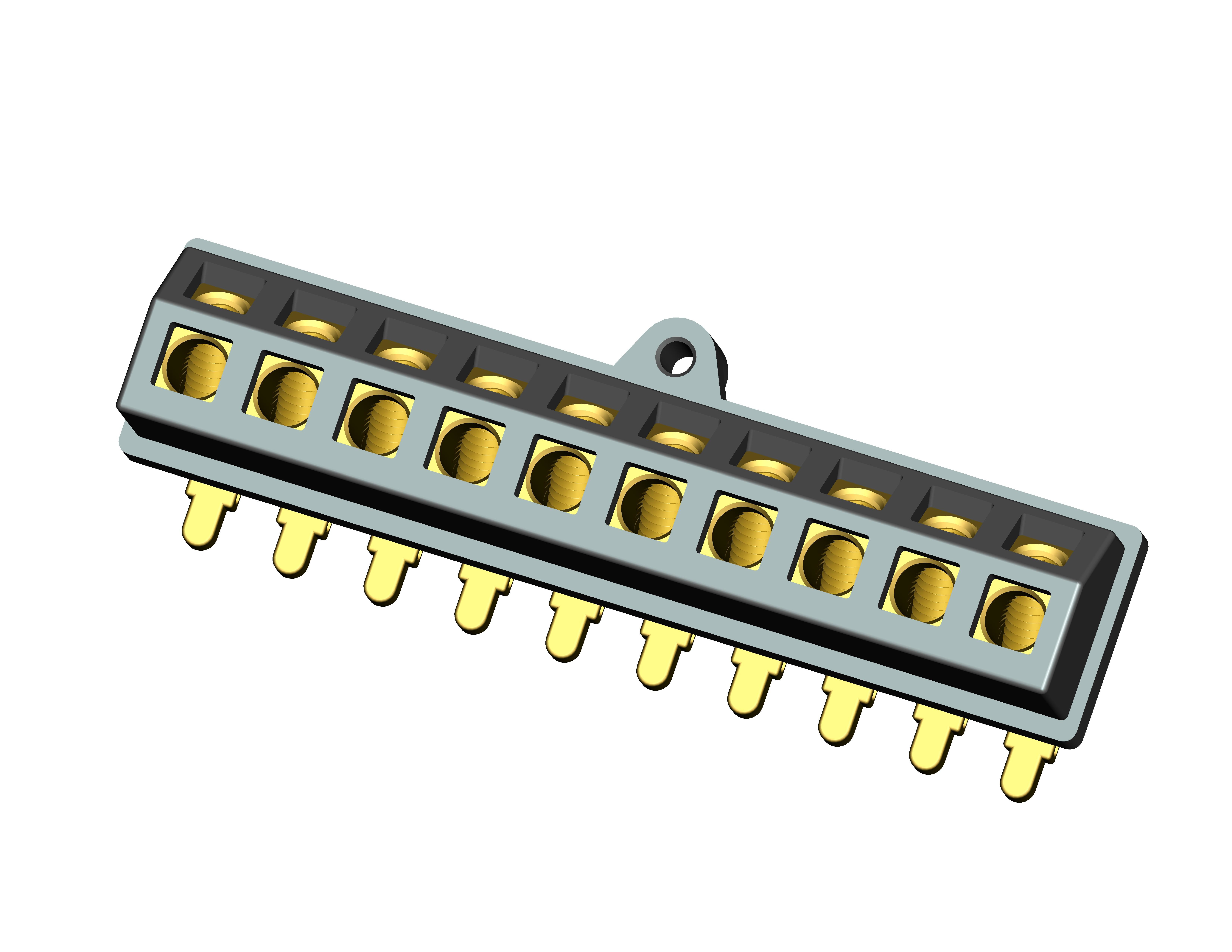

Applications of Barrier Terminal Block
Normally used for car amplifier audio signal distributing and power distributing/connecting.
Features of Barrier Terminal Block
Long life and Good Finish Performance
Stable distribution performance
RoHS Compliant
Specification of Barrier Terminal Block
| 1.Electrical Characteristics | |
| Rated voltage: | 300VDC |
| Rated current: | 35A |
| Insulation resistance: | ≥1000OHM |
| Wire range: | 12-22AWG with standing |
| Withstand voltage: | 1500V AC/minute |
| 2.Mechanical Characteristics | |
| Torque: | 15.7Lb/in |
| Operating temperatures: | -40°C to 105°C |
| Installation: | PCB Insertion and Welding |
| 1.Materials & Finish Characteristics | |
| Screw: | Steel , Finish: Nickel plating with Copper underneath |
| Terminal: | Zinc Alloy, Finish: Tin/Nickel/with Copper underneath or Gold plating |
| Body: | PBT or PC UL94-V0 |
Our Services
1. Offer one year warranty
2. OEM/ODM service to meet all your needs
3. Offer 24 hours to reply your inquiries
4. Strong R&D team for technical support
5. Offer free sample for test
FAQ
Q: Can I get sample from you?
A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.
Q: Do you accept customization?
A: Yes, customization is acceptable, please contact our sales staffs for consult.
Q: Can you provide help for technical issues?
A: Yes, we have more than 10 years of research and development in the electronic component industry. If you need technical help in the purchase process, please feel free to contact us.
|
