| Categories | Double Injection Molding |
|---|---|
| Brand Name: | Chitwing |
| Model Number: | Mobile Phone |
| Certification: | ISO 9001:2015 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 set/month |
| Delivery Time: | 30 day(s) |
| Packaging Details: | The mold is packaged with a wooden box and placed on a wood pallet. |
| Size: | 350.00 X 570.00 X 451.00 |
| IMM Tonnage: | 250T |
| slides: | 4 |
| lifters: | 23 |
| Surface finish: | texture VDI27# |
| Mold net weight: | 784kg |
| Tool life: | 500k shots |
| Gate: | Pin point gate |
| standard: | LKM |
| Type: | Three-plates mold |

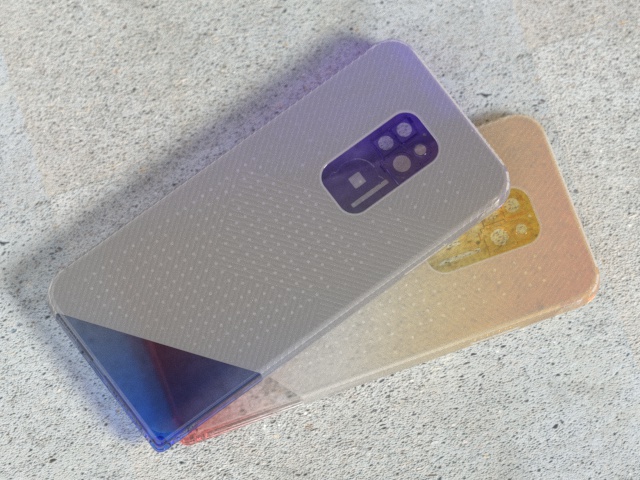

Transparent Three-proof
Phone Battery Cover (1*1)
No.23691& 23692
| Mold size | Standard | |||
| ❶ L: 350 ❷ W: 570 ❸ H: 451 | LKM | |||
| Mold base P/N | FCI3545 70120100 | |||

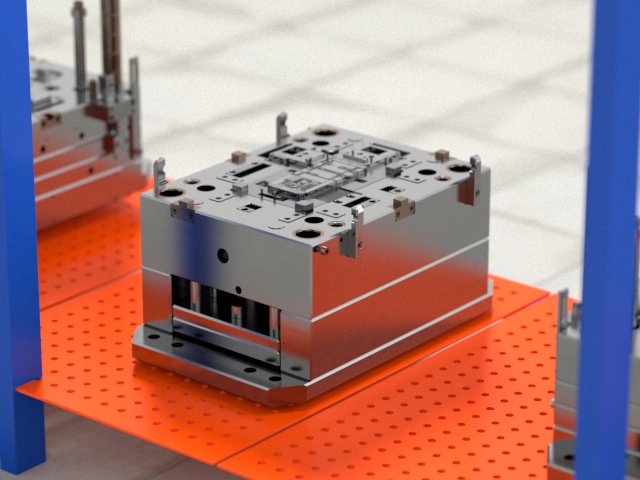

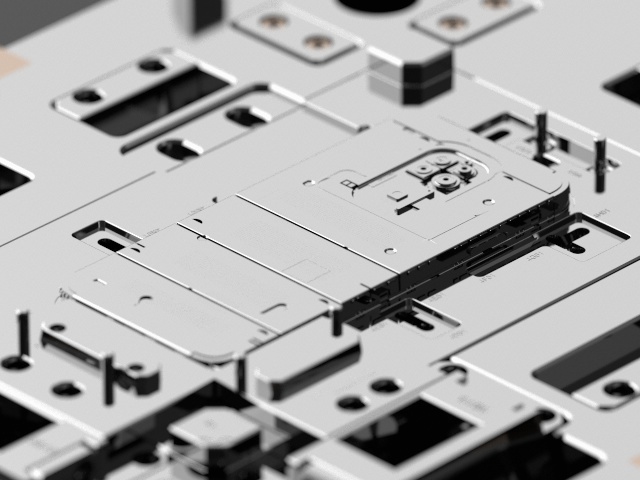

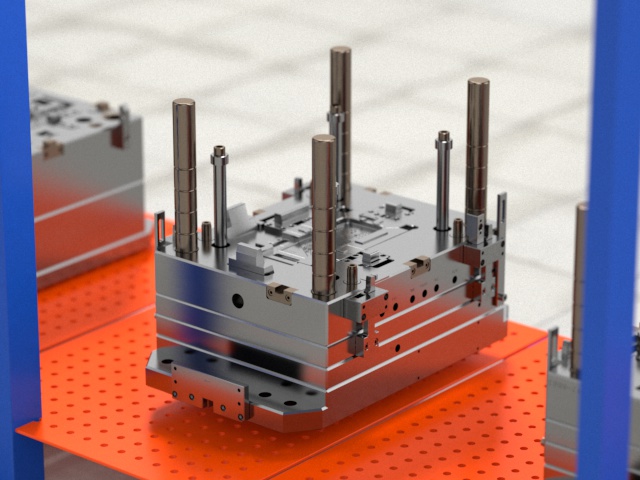

The mold is a three-plates mold and self-degating, which is good for PC/TPU filling. The molded part has clear texture and short cycle time. | ||||
| Mold net weight | 784kg | |||
| IMM Tonnage | 250T | |||
| Part material | PC/TPU | |||
| Part weight | 33.5g | |||
| Part size | 77.81X169.44 X 9.78mm | |||
| Mold life | 500K shots | |||
| Gate | Pin point gate | |||
| Surface finish ⑴ A surface polished with 1000# ⑵ Texture VDI27# | Injection/runner type Hot runner | |||
| Steel of cavity & core Harden (1*1/S136) | ||||
| Features | 6 x slides and 23 x lifters | |||
Display diagram
|
