| Categories | Double Injection Molding |
|---|---|
| Brand Name: | Chitwing |
| Model Number: | Overear Headphone |
| Certification: | ISO 9001:2015 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 set/month |
| Delivery Time: | 30 day(s) |
| Packaging Details: | The mold is packaged with a wooden box and placed on a wood pallet. |
| Size: | 400.000 X 640.000 X 541.000 |
| IMM Tonnage: | 180T |
| Mold Weight: | 1158KG |
| Gate: | Pin point gate |
| Part material: | PC/TPU |
| Slide: | 3 |
| Lifter: | 3 |
Transparent Inner Housing (1*1)
No.19015 & 19016
☆ Custom mold base P/N: FCI4050.A140B150C130 is adopted
☆ Better meet the design needs of mold
| Brand | Origin | Net weight |
| Chitwing | Guangdong, China | 1158kg |
| Type | Standard | Length | Width | Height | Net weight | IMM tonnage | |

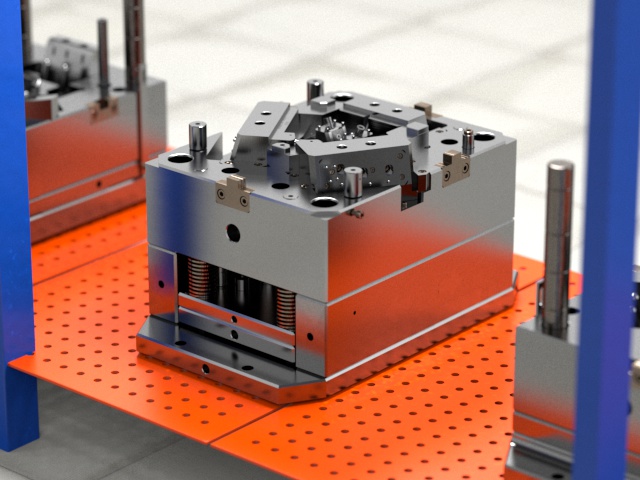

| Three-plates mold | LKM | 400 | 640 | 541 | 1158kg | 180 (T) | |
| Considering the mass production, production cost, quality and cycle time, this three-plate mold is designed with reasonable 3 slides and 3 lifters to better support the precise molding. Partial surfaces polished with VDI 18#; harden the cavity and core with 1*1/S136 to have good hardness and anti-wearing performance, with tool life up to 500k shots. The mold good fitted, with no leakage, stable cavity pressure, uniform wall thickness; molded parts have smooth surface, sharp edges, no burrs, with precise thread and uniform thickness | |||||||
| Injection/runner type | |
| Cold runner |
| Part ① Material ② Size ③ Weight | |||||||
| ① PC/TPU | ② 129.44 X 163.28 X 60.35mm | ③ 9.84g | |||||

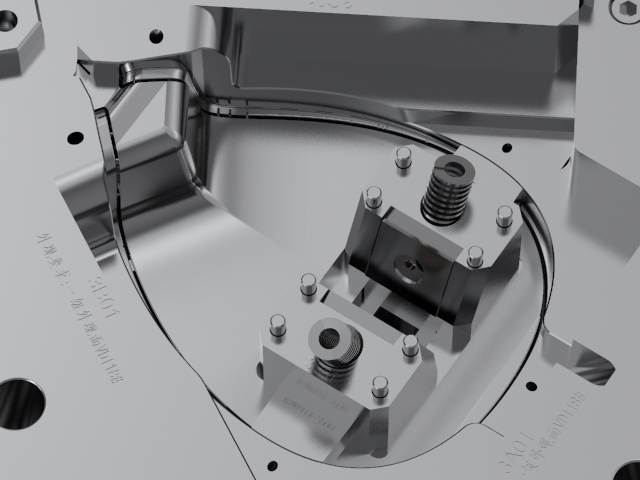

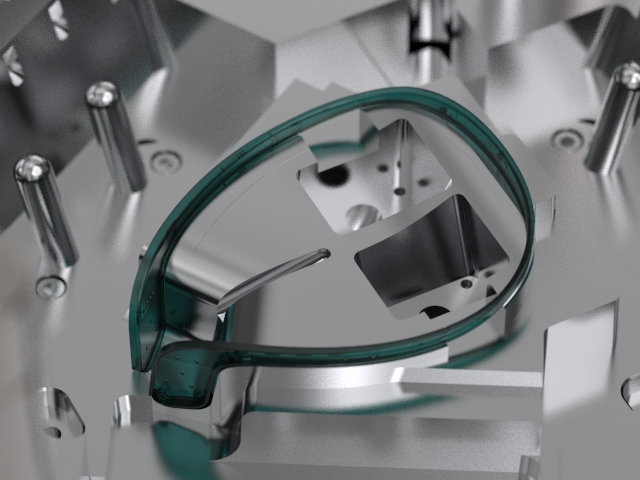

Display diagram
|
