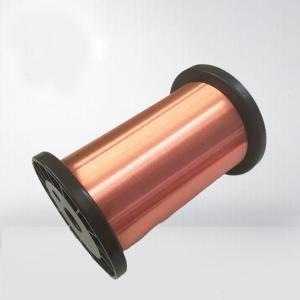

0.2mm - 0.6mm 2uew155 Solderable Wire Magnet Ultra Fine

Categories Ultra Fine Enameled Copper Wire
Brand Name: Ruiyuan
Model Number: 0.5mm
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin: China
MOQ: 20 kg
Price: Negotiation
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Delivery Time: 2-15 days
Packaging Details: Carton
Product Name: 0.2mm - 0.6mm 2UEW155 Magnet Wire Ultra Fine Enameled Copper Wire
Thermal rating: 155/180
Insulation Material: Polyurethane
Diameter: 0.5mm
Conductor material: Copper
Key word: 0.2mm - 0.6mm 2UEW155 Magnet Wire Ultra Fine Enameled Copper Wire
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

0.2mm - 0.6mm 2uew155 Solderable Wire Magnet Ultra Fine

0.2mm - 0.6mm 2UEW155 Magnet Wire Ultra Fine Enameled Copper Wire


Features and Benefits:


(a) Excellent dereeling and windability on high speed and/or automatic winding machines.


(b) Produces compact coils and windings


(c) Superior “Q” characteristics at high frequencies.


(d) Exceptional film flexbility and adhesion.


(e) Excellent resistant to a variety of solvents including most varnishes and hardener catalysts.


(f) Excellent crazing abrasion chemical resistance and provides good thermal stability.


Name

0.5mm Polyurethane Copper Magnet Wire Enamel Coated Insulated Copper Wire

Key word

Enameled copper wire

Insulationh

Enamel

Thermal rating

155/180

Diameter of the enameled copper wire

0.5mm

Type

0.5mm Polyurethane Copper Magnet Wire Enamel Coated Insulated Copper Wire


/
/
/
Overall diameter
0.022-0.024 mm
0.023
0.023
0.023
Electrical Resistance
≤60.810Ω/m
56.453
56.436
56.551
Elongation
≥ 8%
11
11
12
Breakdown voltage
≥130V
253
261
238
Pinbole test
≤ 8 hole/5m
1
0
1
Test items
Technical Requests
Results
Adhesive
No crack
OK
Cut-through
200℃ 2mins no crack
OK
Heat Shock
180±5℃/30min no crack
OK
Solder Ability
390± 5℃ 2Sec Smooth
OK

Cheap 0.2mm - 0.6mm 2uew155 Solderable Wire Magnet Ultra Fine for sale
