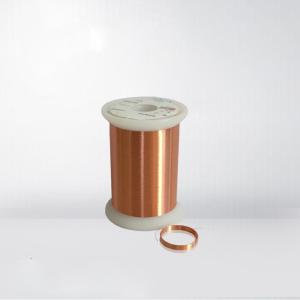

Polyurethane Round Enameled Copper Wire For Transformer

Categories Ultra Fine Enameled Copper Wire
Brand Name: Ruiyuan
Model Number: 0.32mm
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin: China
MOQ: 20 kg
Price: Negotiation
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Delivery Time: 2-15 days
Packaging Details: Carton
Product Name: 44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire For Motor
Thermal rating: 155/180
Insulation Material: Polyurethane
Diameter: 0.32mm
Conductor material: Copper
Key word: 44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire For Motor
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Polyurethane Round Enameled Copper Wire For Transformer

Factory Price High Quality Enameled Copper Wire Polyurethane Round For Transformer

The heat shock and chemical characteristics of this wire are better than that of formal enameled wire, but the durability is moderately low. It is applicable to the communication equipment within the upper limit of 130℃ using ultra thin conductor with 0.04mm or thicker diameter

Item
Characteristics
Test Standard
Conclusion
1
Bare Wire Diameter
0.05±0.002MM
0.050
2
Overall Diameter
≤0.081MM
0.077
3
Conductor Resistance
MAX: 9.528Ω/M
8.754Ω/M
4
Breakdown voltage
≥3000V
4245V
5
Elongation
MIN:12%
21.6%
6
Solderability
390± 5℃ 2 Secs No Slags
OK
Conclusion
Qualified

Name

Factory Price High Quality Enameled Copper Wire Polyurethane Round For Transformer

Key word

Enameled copper wire

Insulationh

Enamel

Thermal rating

155/180

Diameter of the enameled copper wire

0.05mm

Type

Factory Price High Quality Enameled Copper Wire Polyurethane Round For Transformer
