Household LiFePO4 Lithium Battery Inverter 5000W LFP Solar Renewable

Categories LiFePO4 Battery Pack
Brand Name: CLF
Model Number: CLF-R0705
Certification: CE, UN38.3,TUV mark
Place of Origin: Hunan,China
MOQ: 1unit
Price: Negotiable
Payment Terms: T/T
Supply Ability: 1000 units per month
Delivery Time: 7-15 working days
Packaging Details: Wooden case and Carton case
Battery Type: LiFePO4
Voltage range: 125~600V
Rated output voltage: 175V-270V/230V
Battery type: Li-ion (LiFePO4)
Inverter: 5-15KW
Capacity: 5/10/15/20/25/30/35KWH
Output: single/three phase
OEM/ODM: Warmly Welcomed
AC input frequency: 50 / 60Hz
THDv: <3%
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Household LiFePO4 Lithium Battery Inverter 5000W LFP Solar Renewable

磷酸铁锂锂电池 OEM ODM 可充电 48V 100AH 200AH 300AH 家用太阳能存储用锂离子电池 0

All-In-One LiFePO4 Lithium Battery Household Home Solar Energy Storage System Inverter OEM ODM 5000W LFP Solar Renewable

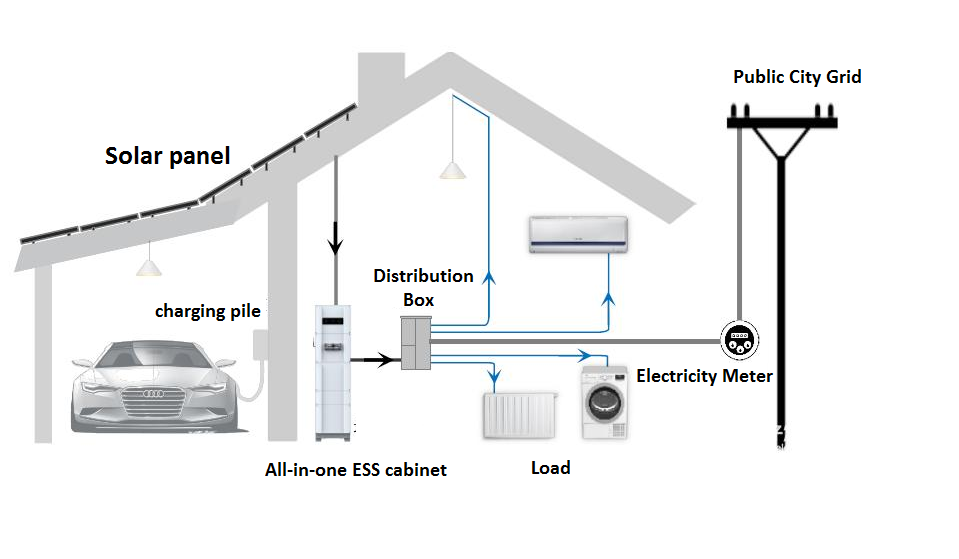

All-in-One is composed of photovoltaic energy storage hybrid inverter, energy storage battery module, wireless communication module or display screen. Connected to solar panel, photovoltaic power generation and system can be formed. The main function is to convert direct current of photovoltaic and battery into alternating current and output power to load.
The system is equipped with EMS(energy management system) and BMS(battery management system) to realize data monitoring, early warning and control.

Specifications
ModelHY- ()-15KWH- ()HY- ()-20KWH- ()HY- ()-25KWH- ()HY- ()-30KWH- ()
Battery Voltage120-175.2V160-233.6V200-292V240-350.4V
Battery Rated Voltage153.6V204.8V256V307.2V
Battery Module
Quantity
3456
Battery Module
Dimention
640*400*685mm640*400*895mm640*400*1105mm640*400*1315mm
Cabinet Dimention640*400*1555mm640*400*1765mm640*400*1975mm640*400*2185mm
Battery Module Voltage Range40-58.4V
Battery Module Rated Voltage51.2V
Battery Module Power5.12kwh
Battery Module
Dimension
(L*W*H)
640*400*210mm
(with holder higher 55mm)
Battery Module Weight46.9kg
With Holder Weight57.7kg
Max Charge/Discharge
Current
40A/80A
Battery TypeLiFePO4
Communication
Connecter
CAN
Waterproof LevelIP20
Operating Temperature-15~55
Noise30dB
DescriptionEach battery pack contains one battery with a bottom wheel and several batteries without a bottom wheel



More model for choice:

ModelDescription
HY7K-15KWH-SEquipped with 7KW Controller box, 15KWh battery pack, Single-phase output
HY7K-20KWH-SEquipped with 7KW Controller box, 20KWh battery pack, Single-phase output
HY7K-25KWH-SEquipped with 7KW Controller box, 25KWh battery pack, Single-phase output
HY7K-30KWH-SEquipped with 7KW Controller box, 30KWh battery pack, Single-phase output
HY8K-15KWH-SEquipped with 8KW Controller box, 15KWh battery pack, Single-phase output
HY8K-20KWH-SEquipped with 8KW Controller box, 20KWh battery pack, Single-phase output
HY8K-25KWH-SEquipped with 8KW Controller box, 25KWh battery pack, Single-phase output
HY8K-30KWH-SEquipped with 8KW Controller box, 30KWh battery pack, Single-phase output
HY8K-20KWH-TEquipped with 8KW High Voltage Controller box, 20KWh battery pack, 3-phase output
HY8K-25KWH-TEquipped with 8KW High Voltage Controller box, 25KWh battery pack, 3-phase output
HY8K-30KWH-TEquipped with 8KW High Voltage Controller box, 30KWh battery pack, 3-phase output
HY8K-35KWH-TEquipped with 8KW High Voltage Controller box, 35KWh battery pack, 3-phase output
HY9K-15KWH-SEquipped with 9KW Controller box, 15KWh battery pack, Single-phase output
HY9K-20KWH-SEquipped with 9KW Controller box, 20KWh battery pack, Single-phase output
HY9K-25KWH-SEquipped with 9KW Controller box, 25KWh battery pack, Single-phase output
HY9K-30KWH-SEquipped with 9KW Controller box, 30KWh battery pack, Single-phase output
HY10K-15KWH-SEquipped with 10KW Controller box, 15KWh battery pack, Single-phase output
HY10K-20KWH-SEquipped with 10KW Controller box, 20KWh battery pack, Single-phase output
HY10K-25KWH-SEquipped with 10KW Controller box, 25KWh battery pack, Single-phase output
HY10K-30KWH-SEquipped with 10KW Controller box, 30KWh battery pack, Single-phase output
HY10K-20KWH-TEquipped with 10KW High Voltage Controller box, 20KWh battery pack, 3-phase output
HY10K-25KWH-TEquipped with 10KW High Voltage Controller box, 25KWh battery pack, 3-phase output
HY10K-30KWH-TEquipped with 10KW High Voltage Controller box, 30KWh battery pack, 3-phase output
HY10K-35KWH-TEquipped with 10KW High Voltage Controller box, 35KWh battery pack, 3-phase output
HY12K-20KWH-TEquipped with 12KW High Voltage Controller box, 20KWh battery pack, 3-phase output
HY12K-25KWH-TEquipped with 12KW High Voltage Controller box, 25KWh battery pack, 3-phase output
HY12K-30KWH-TEquipped with 12KW High Voltage Controller box, 30KWh battery pack, 3-phase output
HY12K-35KWH-TEquipped with 12KW High Voltage Controller box, 35KWh battery pack, 3-phase output
HY15K-20KWH-TEquipped with 15KW High Voltage Controller box, 20KWh battery pack, 3-phase output
HY15K-25KWH-TEquipped with 15KW High Voltage Controller box, 25KWh battery pack, 3-phase output
HY15K-30KWH-TEquipped with 15KW High Voltage Controller box, 30KWh battery pack, 3-phase output
HY15K-35KWH-TEquipped with 15KW High Voltage Controller box, 35KWh battery pack, 3-phase output
