| Categories | Mini Circuit Breaker |
|---|---|
| Brand Name: | YOKG |
| Model Number: | F360 F362 F364 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 100PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 100000pcs per Month |
| Delivery Time: | 15days or Depends on ordering QTYS |
| Packaging Details: | Standard export packing or According to customer's demand |
| Type: | RCCB, Residual Current |
| Breaking Capacity: | 4.5KA, 6KA , 10KA |
| Quality: | A |
| standard: | IEC61008-1 |
| Protection degree: | IP20 |
| Rated Current: | 6A-63A |
| Company Info. |
| YueQing ZEYI Electrical Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

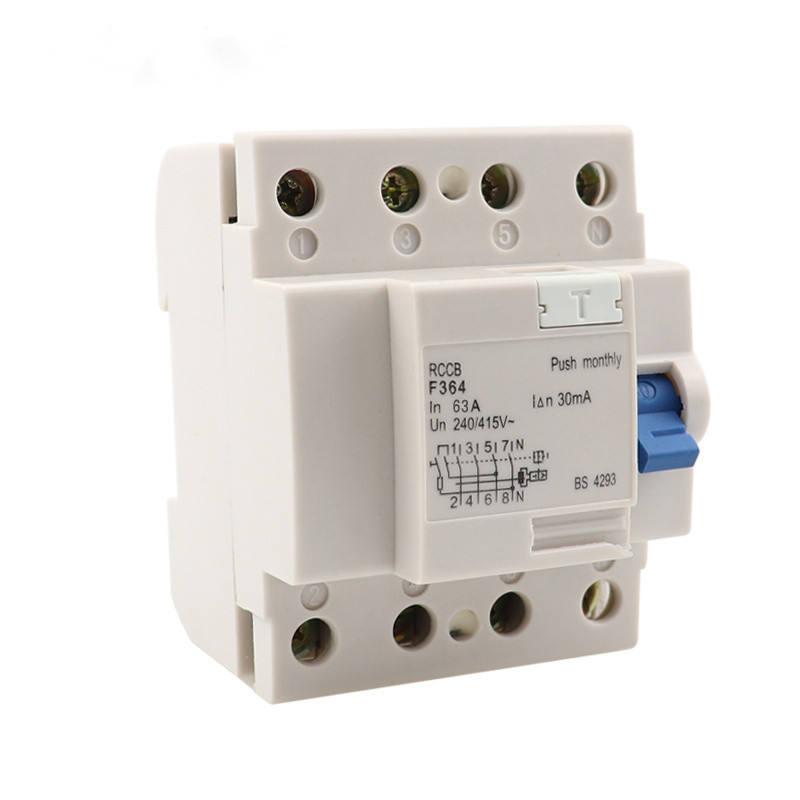

Electromagnetic type Residual Current Circuit Breaker 4 Pole 63A 30ma RCCB
Application:
F360 series residual current circuit breakers (RCCB) are in accordance with the standards of IEC1008-1 and GB16916.1-1997. They are applied to the circuit of AC 50/60Hz, 2P 240V, 4P 415V. They are mainly used for preventing electric fire and personal casual accidents caused by personal electric shock or leakage. They are current-operated and fast leakage protectors of pure electromagnetic types. They can break off fault circuit rapidly in order to avoid occurrence of accidents.The function of switch won't be influenced by ambient temperature and lighting.
| Number of Poles | 2P,4P |
| Rated Current (A) | 16,20,25,32,40,50,63,80,100 |
Rated Residual Operating Current (IΔn)(mA) | 10,30,100,300,500 |
| Rated Residual Non-operation Current (IΔno)(mA) | ≤0.5 IΔn |
| Rated Voltage (V) | AC 230/240 |
| AC 400/415 | |
| Residual Operating Current Scope | 0.5IΔn~IΔn |
| Residual Current Off-time | ≤0.3S |
| Endurance | 4000 |
| Protection Degree | IP20 |
FAQ:
1.How can we get quotations?
A:We will send quotations within 24 hours after getting your enquiry. Urgent need you can call us or send us messages via Whatsapp.
2.Can we get sample to check your quality?
A:All items sample are available.
3.Can you do the design for packing?
A:Yes. We have ad team can assist you design inner and outer box if need.
4.What is your terms of delivery?
A:Normally we work on EXW FOB.
|
