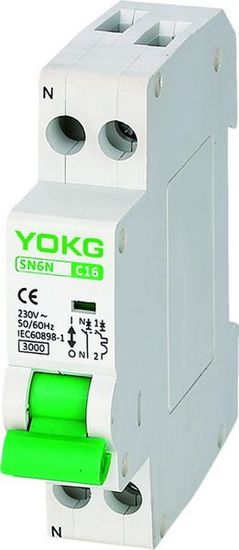

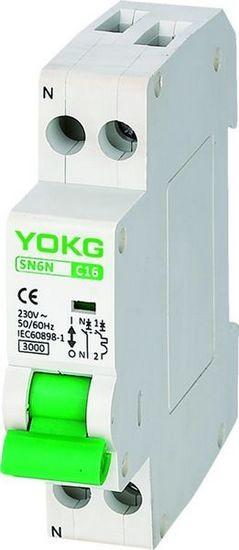

1P N SN6N Mini Circuit Breaker 40 Amp Small Magnetic Trip 3KA

1P+N Mini Circuit Breaker SN6N 40A MCB/ Small Magnetic Trip Circuit Breaker

Application:

♦ Short-circuit protection

♦ Isolation function

♦ Overload protection

♦ Indication function of contact position

♦ Support 35mm Din-rail installation

♦ Support top incoming and bottom outgoing wiring type, or bottom incoming and top outgoing wiring type

♦ Able to select electrical accessories and achieve distant indication of MCB condition; breaking, closed, and fault tripping

♦ Able to select electrical accessories and realize under-voltage and over-voltage protection of MCB and distant shunt release

Instantaneous tripping characteristic:

Circuit breaker SB6 are designed for protection of distribution and branch circuits, having different load;

♦ Curve B----Device should not work in 0.1 second at current 3 In; at current 5 In should work in less than 0.1S

♦ Curve C---- Device should not work in 0.1 second at current 5 In; at current 10 In should work in less than 0.1S

♦ Curve D---- Device should not work in 0.1 second at current 10 In; at current 20 In should work in less than 0.1S

Over-current operating characteristics:

The Number of Poles:

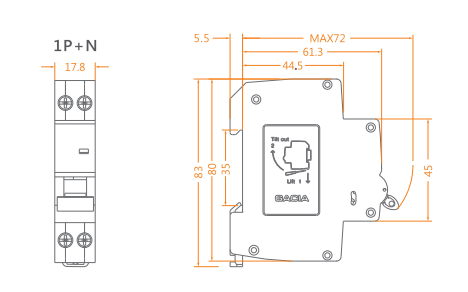

Dimensions:

Specifications:

Poles	1P+N
Electrical specification
Rated current(A) In	1-40
Rated frequency(Hz)	50/60
Rated working voltage(V) Ue	230~
Rated insulated voltage(V) Ui	400
Impulse withstand voltage(KV) Uimp	4
Rated short-circuit breaking capacity(KA) Icn	3
Instantaneous tripping type	B,C,D
Maximum working voltage Umax	240
Minimum working voltage Umin	-
Dielectric test voltage (kv)	2
Service life Mechanical standard value	10000
(O-C) Electrical Standard value	4000
Control and indication:
Shunt release (SHT)	Optional
Undervoltage release(UVT)	Optional
Auxiliary contact(AUX)	Optional
Alarm contact(ALT)	Optional
Contact position indicator	None
Fault indication	Default
Connection and installation:
Ambient temperature (with daily average≤35℃)	-5℃～+40℃
Protection degree All sides	IP40
Connection terminal	IP20
Wire(㎟)	10
Busbar(㎟)	--
Mounting	Cable
Pollution degree	2
Reference temperature for setting of thermal element(℃)	30
Storage temperature(℃)	-25℃～+70℃
Tightening torque	2.5
Connection	Top and Bottom
Dimensions(mm) a(1P/2P/3P/4P)	17.8
b(1P/2P/3P/4P)	83
(WxHxL) c(1P/2P/3P/4P)	77.5
