Toros 3.5 Tonne Mini Digger Minibagger Compact Digging Equipment

Categories Toros Mini Excavator
Brand Name: TOROS
Model Number: TE-35S
Certification: CE\EPA\EURO 5
Place of Origin: China
MOQ: 1 PCS
Price: $21500-$28500 1 PCS
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 100 PCS/Week
Delivery Time: 30 Work Days
Packaging Details: Standard International Ocean Shipping
Bucket excavating force (KN) ISO: 26.5 KN
Volume of fuel tank (L): 40L
Power: 18.5KW
Length * Width * Height: 4485*1550*2440mm
Track Length: 2100mm
Bucket Width: 520/470mm
Bucket Capacity: 0.09 m³
Swing angle: 70/50 °
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

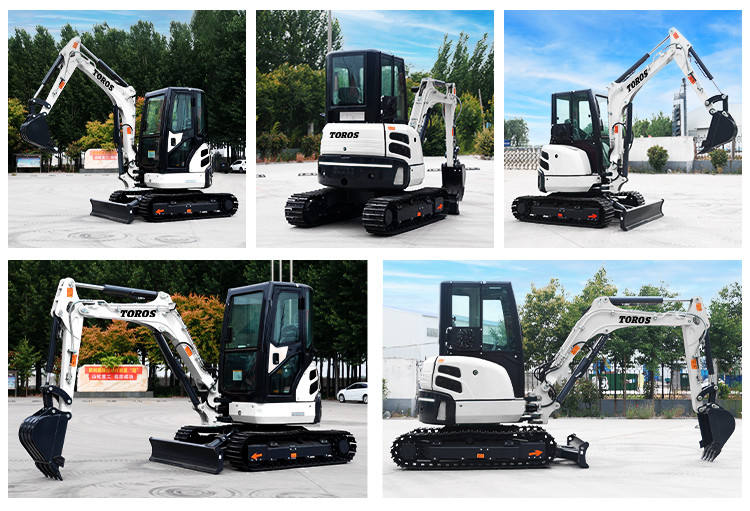

Toros 3.5 Tonne Mini Digger Minibagger Compact Digging Equipment

Hot selling mini excavators support factory customization

The one-year free warranty service for this model has started!

Click The Inquiry Below To Get The Best Price!

The boom can be swayed sideways, and steel crawlers are equipped, which effectively enhances the wear resistance of the crawlers and protects the road surface when add rubber pedals while walking. The overall design is beautiful, the work force is strong, fuel-saving and labor-saving! It has the characteristics of strong power, low noise, low emission, low fuel consumption and convenient maintenance. It can excavate soil materials and strip the overburden of mining fields, and is widely used in municipal engineering, gardening and greening, construction projects, and road engineering.


PARAMERERS
Operating Weight3515KG
Bucket Capacity0.09 m³
Bucket Width520/470mm
Engine
BrandKubota V 1505
Power18.5KW
Cylinder number4-Cylinder, 4-Stroke
Ground pressure(KPa)28(0.2)
Bucket excavating force (KN) ISO26.5 KN
Volume of fuel tank (L)40L
Dimensions
Length * Width * Height4485*1550*2440mm
Track Length2100mm
Hight of bulldozer blade335mm
Track Width300mm
Track length2100 mm
Track center distance1250 mm
Min. ground clearance290 mm
Performance Specifications
Maximum excavating height(mm)4600 mm
Maximum unloading height(mm)3175 mm
Maximum digging depth(mm)2880 mm
Maximum vertical wall excavating depth(mm)2305mm
Maximum excavation distance4965 mm
Maximum excavation ground distance4845 mm
Minimum radius of gyration of front section2035 mm
Minimum radius of gyration at rear end790 mm
Maximum bulldozing height360 mm
Maximum bulldozing depth340 mm
Minimum radius of gyration at rear end790 mm
Swing angle70/50 °
