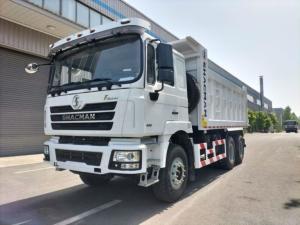

SHACMAN F3000 Dump Truck 6x4 430 Euro II Tipper White 10 Tyres Tipper with 5200

Categories Heavy Dump Truck
Brand Name: SHACMAN
Model Number: F3000
Certification: ISO 9001/CCC
Place of Origin: Shaanxi,Xian
MOQ: 1
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Delivery Time: 45 working days
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Modle: SX3255DV384
Engine: WP12.430E201
Transmission: 10JSD180+QH50
Axle: 9.5T /2*16 T Double-stage,speed ratio-5.92
Wheel base: 3775+1400 mm
Tire: 12.00R20
Fuel tank: 300L
Clutch: φ430 Diaphragm spring clutch
Air inlet: Ordinary air filter
Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Cabin: Medium-length flat top
Color: Neon Red/Green Mountain Green/Star and Moon Blue/Aurora White/Klein Blue/Brandy
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SHACMAN F3000 Dump Truck 6x4 430 Euro II Tipper White 10 Tyres Tipper with 5200

SHACMAN F3000 Dump Truck 6x4 430 Euro II


Detailed Product Description
Model: SX3255DV384

Drive type: 6x4
Engine Brand: WEICHAI
Engine Model: WP12.430E201
Engine Power/(kw/HP): 316kw / 430Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B+QH50


Dump Truck Parameters

ModelSX3255DV384
Drive type6x4
WeightGross Vehicle Weight≤50
DimensionsWheelbase/(mm)3775+1400
PerformanceMaximum speed/(km/h)40~55/75
Ground clearance>314
EngineBrandWEICHAI
ModelWP12.430E201
Power/(kw/HP)316kw / 430Hp
Maximum torque / (N.M)/rpm2000 N·M
Displacement/(L)11.596 L
Emission standardEuro II
Gear boxBrandFAST
Model12JSD200T-B+QH50
ClutchTypeφ430 Diaphragm spring clutch
CoolingTypeDomestic heat sink
Air inletTypeOrdinary air filter
BrakesTypeDrum brake
Service brakeDouble circuit air brake
Park brakeRear wheel spring brake
Auxiliary brakeWEVB engine exhaust brake
SteeringTypeZF8098 technology, circulating ball steering machine
ChassisTypeParallel trapezoidal frame with variable section
Dimensions/(mm)850×300(8+7)
SuspensionFrontMulti-layered leaf springs with 4 Main springs+4 U Bolts
RearMulti-layered leaf springs with 4 Main springs+4 U Bolts
AxlesBrandHANDE
Front axle9.5T front axle MAN technology
Rear axle16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
TiresType12.00R20
Fuel tankTank capacity/(L)300L Aluminum tank
ElectricsType24V
Battery165Ah Maintenance-free battery
CabTypeSHACMAN F3000 Medium-length flat cab
EquipmentHydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Advantages

  • Safety Features: SHACMAN trucks typically incorporate various safety features, including advanced braking systems, ABS (Anti-lock Braking System), EBS (Electronic Braking System), and other technology to ensure safe operation and handling.
  • F3000 series for its durability, reliability, and is famous for its strong performance.

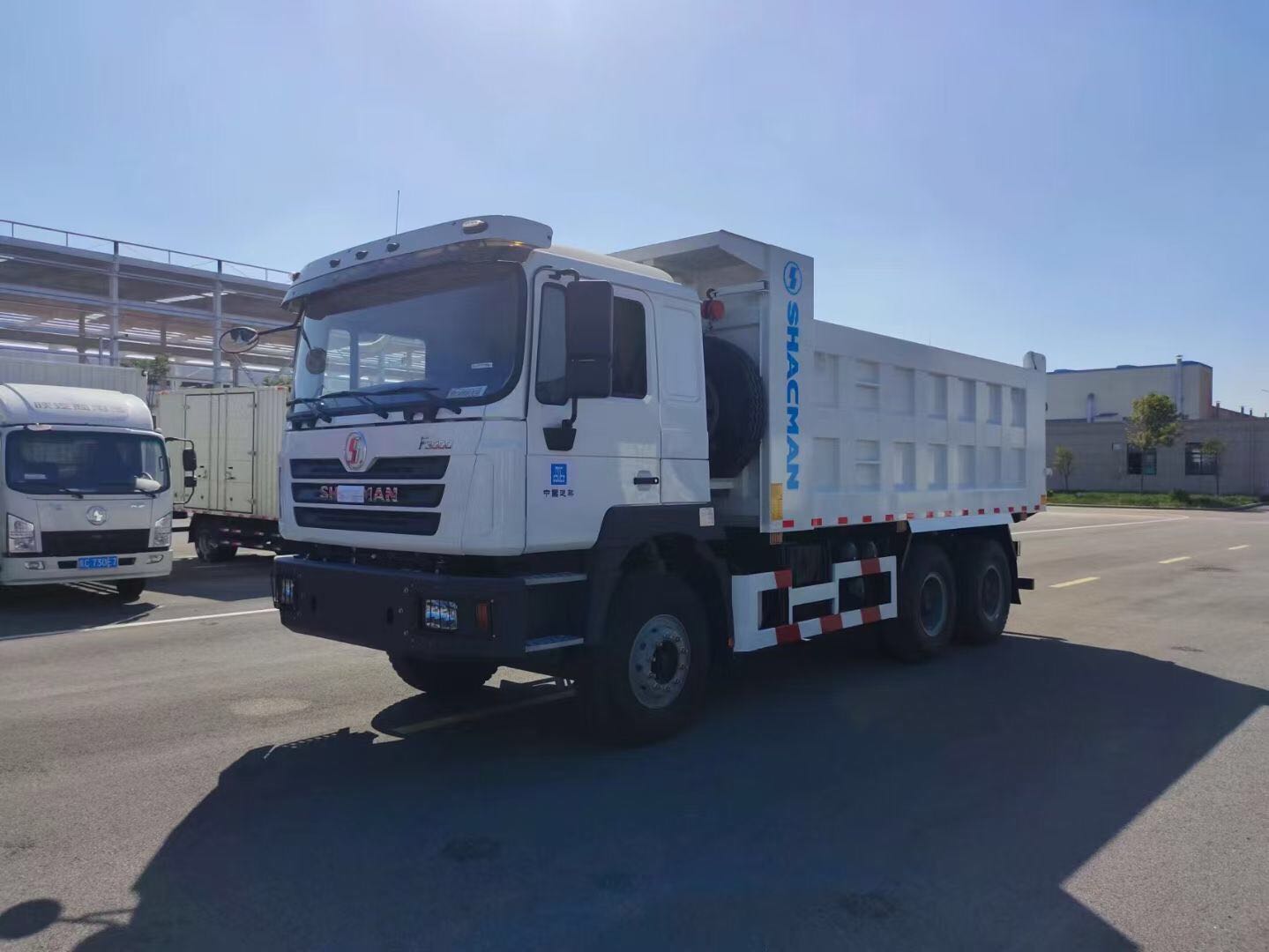

Detailed Image


FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
