10 Tyres SHACMAN H3000 Dump Truck 6x4 380Hp EuroII Blue U-type tipper

Categories Heavy Dump Truck
Brand Name: SHACMAN
Model Number: H3000
Certification: ISO 9001/CCC
Place of Origin: Shaanxi,Xian
MOQ: 1
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Delivery Time: 45 working days
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Modle: SX3255MT384
Engine: WP10.380E22-WEICHAI
Transmission: 10JSD180+QH50
Axle: 9.5T /2*16 T Double-stage,speed ratio-5.92
Wheel base: 3775+1400mm
Tire: 12.00R20 (10+1)
Fuel tank: 300L
Clutch: φ430 Diaphragm spring clutch
Air inlet: Common air filter
Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Cabin: Medium-length flat top
Color: Neon Red/Green Mountain Green/Star and Moon Blue/Aurora White/Klein Blue/Brandy
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10 Tyres SHACMAN H3000 Dump Truck 6x4 380Hp EuroII Blue U-type tipper

SHACMAN H3000 Dump Truck 6x4 380Hp EuroII Blue


Detailed Product Description
Model: SX3255MT384

Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: W10.380E22
Engine Power/(kw/HP): 280kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50


Dump Truck Parameters

ModelSX3255MT384
Drive type6x4
WeightGross Vehicle Weight≤50
DimensionsWheelbase/(mm)3775+1400
PerformanceMaximum speed/(km/h)40~55/75
Ground clearance>314
EngineBrandWEICHAI
ModelW10.380E22
Power/(kw/HP)280kw / 380Hp
Maximum torque / (N.M)/rpm1600 N·M
Displacement/(L)9.726 L
Emission standardEuro II
Gear boxBrandFAST
Model10JSD180+QH50
ClutchTypeφ430 Diaphragm spring clutch
CoolingTypeDomestic heat sink
Air inletTypeOrdinary air filter
BrakesTypeDrum brake
Service brakeDouble circuit air brake
Park brakeRear wheel spring brake
Auxiliary brakeWEVB engine exhaust brake
SteeringTypeZF8098 technology, circulating ball steering machine
ChassisTypeParallel trapezoidal frame with variable section
Dimensions/(mm)850×300(8+7)
SuspensionFrontMulti-layered leaf springs with 4 Main springs+4 U Bolts
RearMulti-layered leaf springs with 4 Main springs+4 U Bolts
AxlesBrandHANDE
Front axle9.5T front axle MAN technology
Rear axle16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
TiresType12.00R20
Fuel tankTank capacity/(L)300L Aluminum tank
ElectricsType24V
Battery165Ah Maintenance-free battery
CabTypeSHACMAN H3000 Medium-length flat cab
EquipmentHydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Advantages

  • H3000 6X4 dump truck is equipped with an intelligent control system that monitors and optimizes various parameters, such as engine performance, fuel consumption, and safety features. This system enhances operational efficiency, performance, and safety while providing real-time data for diagnostics and maintenance.
  • The H3000 dump truck prioritizes safety with features such as ABS (Anti-lock Braking System), EBS (Electronic Brakeforce Distribution), and ESC (Electronic Stability Control). These systems help to improve braking efficiency, prevent wheel lock-up, and enhance stability, contributing to safer operation and reduced accident risks.

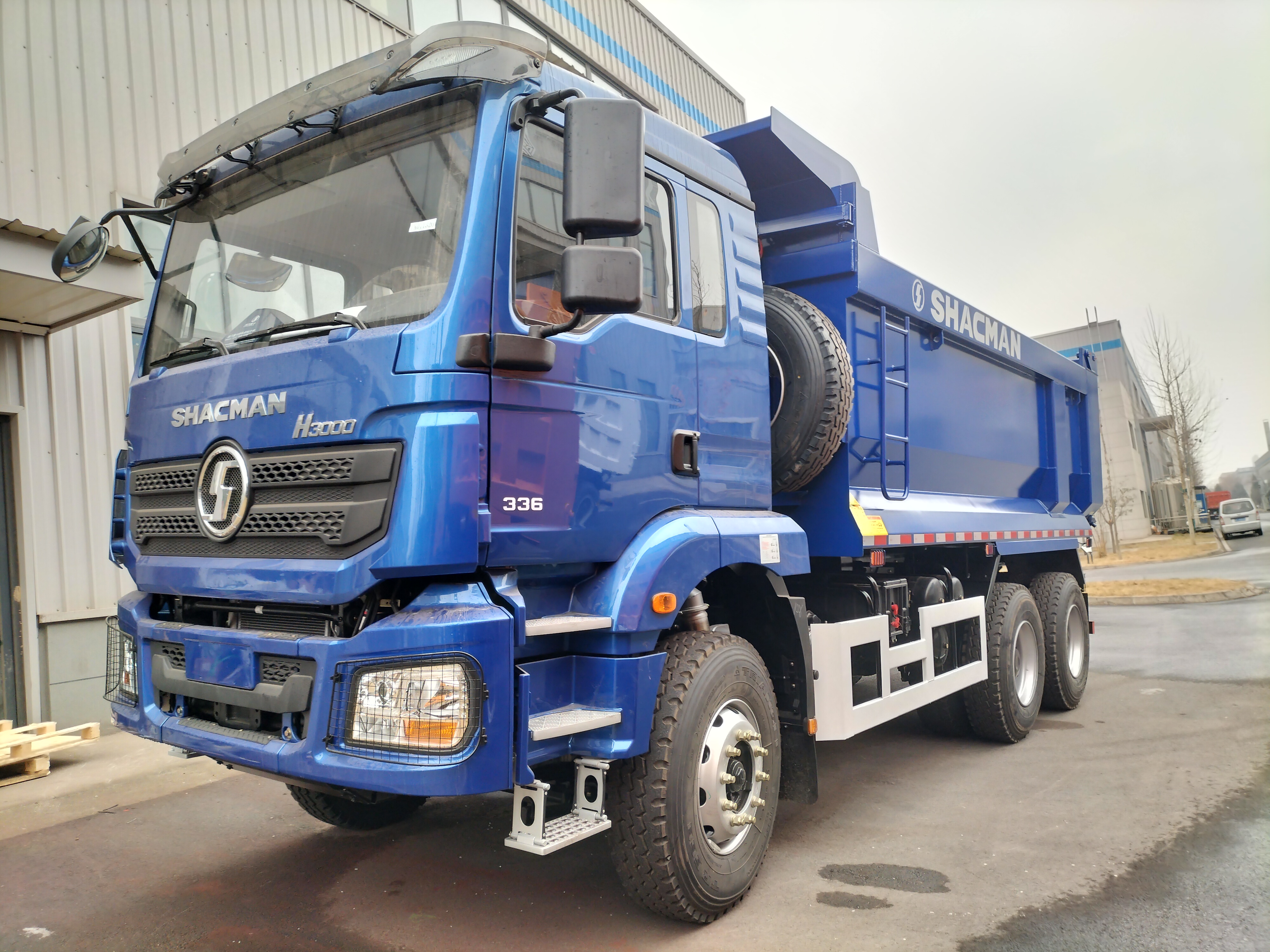

Detailed Image


FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
The final inspection helps to ensure that only products of acceptable quality are released for distribution, minimizing the chances of customers receiving faulty or substandard items. It is an essential step to maintain customer satisfaction, uphold brand reputation, and comply with quality standards and regulations.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
