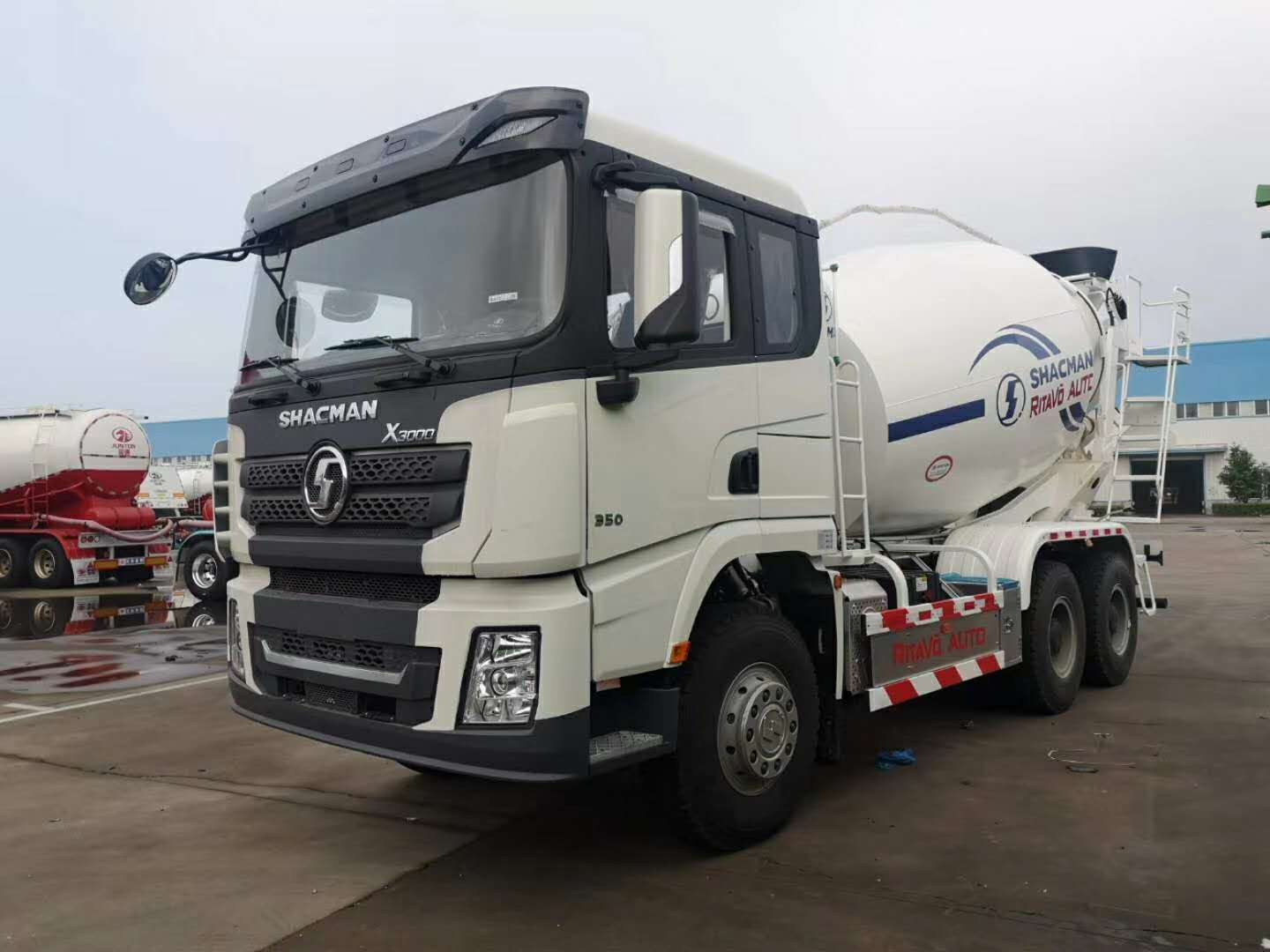

White Concrete Mixer Truck Shacman X3000 Cement Mixer Machine Truck EuroV

Categories Concrete Mixer Truck
Brand Name: SHACMAN
Model Number: X3000
Certification: ISO 9001/CCC
Place of Origin: Shaanxi,Xian
MOQ: 1
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Delivery Time: 45 working days
Packaging Details: Nude pack, with wax before shipment.
Price: Negotiation
Modle: SX5258GJBHR384
Engine: WP10.336E53+PTO
Transmission: 10JSD180
Axle: 9.5T /2*16 T Double-stage, Axle speed ratio-5.262
Wheel base: 3775+1400 mm
Tire: 12.00R20
Fuel tank: 300L
Clutch: φ430 Diaphragm spring clutch
Air inlet: Ordinary air filter
Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Cabin: Extended flat roof
Color: Neon Red/Green Mountain Green/Star and Moon Blue/Aurora White/Klein Blue/Brandy
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

White Concrete Mixer Truck Shacman X3000 Cement Mixer Machine Truck EuroV

SHACMAN X3000 Mixer Truck 6x4 336 EuroV white


Detailed Product Description
Model:SX5258GJBHR384
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP10.336E53+PTO
Engine Power/(kw/HP): 247kw /336 Hp
Gear box Brand: FAST
Gear box Model:10JSD180


Concrete Mixer Truck Parameters

ModelSX5258GJBHR384
Drive type6x4
WeightGross Vehicle Weight≤50
DimensionsWheelbase/(mm)3775+1400 mm
PerformanceMaximum speed/(km/h)50~65/90
Ground clearance>314
EngineBrandWEICHAI
ModelWP10.336E53+PTO
Power/(kw/HP)247kw / 336Hp
Maximum torque / (N.M)/rpm1550 N·M
Displacement/(L)9.726 L
Emission standardEuro V
Gear boxBrandFAST
Model10JSD180
ClutchTypeφ430 Diaphragm spring clutch
CoolingTypeDomestic heat sink
Air inletTypeOrdinary air filter
BrakesTypeDrum brake
Service brakeDouble circuit air brake
Park brakeRear wheel spring brake
Auxiliary brakeWEVB engine exhaust brake
SteeringTypeZF8098 technology, circulating ball steering machine
ChassisTypeParallel trapezoidal frame with variable section
Dimensions/(mm)850×300(8+7)
SuspensionFrontMulti-layer plate spring 4 main plates + 4 U-shaped bolts
RearMulti-layer plate spring 4 main plates + 4 U-shaped bolts
AxlesBrandHANDE
Front axle9.5T front axle MAN technology
Rear axle16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
TiresType12.00R20
Fuel tankTank capacity/(L)400L Aluminum tank
ElectricsType24V
Battery165Ah Maintenance-free battery
CabTypeSHACMAN X3000 Medium-length flat cab
EquipmentHydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, X3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.

Features

  1. Engine: 336 HP engine, in line with Euro V emission standards. Euro V is an advanced emission standard designed to reduce vehicle exhaust emissions to protect the environment.
  2. Drive configuration: The truck has a 6x4 drive configuration, which means it has six wheels, four of which are driven. This configuration provides good load balancing and mobility.
  3. Mixing drum: Fitted with a rotating mixing drum, mounted on the rear of the chassis. The roller is designed to mix and transport concrete, ensuring consistent quality during transport.

Detailed Image


FAQ

1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
