EuroII Shacman Mixer Truck F3000 Concrete Mixer Machine Truck 8x4 380 White

Categories Concrete Mixer Truck
Brand Name: SHACMAN
Model Number: F3000
Certification: ISO9001/CCC
Place of Origin: Shaanxi,Xian
MOQ: 1
Price: Negotiation
Payment Terms: T/T, L/C
Delivery Time: 45 working days
Supply Ability: 1000 units/month
Packaging Details: Nude pack, with wax before shipment.
Modle: SX5315GJBDT306
Engine: WP10.380E22+PTO
Axle: 9.5T/2*16 Double stage axle, Axle speed-5.262
Wheel base: 1800+2975+1400 mm
Tire: 12.00R20
Fuel tank: 300L
Clutch: φ430 Diaphragm spring clutch
Air inlet: Ordinary air filter
Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Cabin: Medium-length flat top
Color: Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

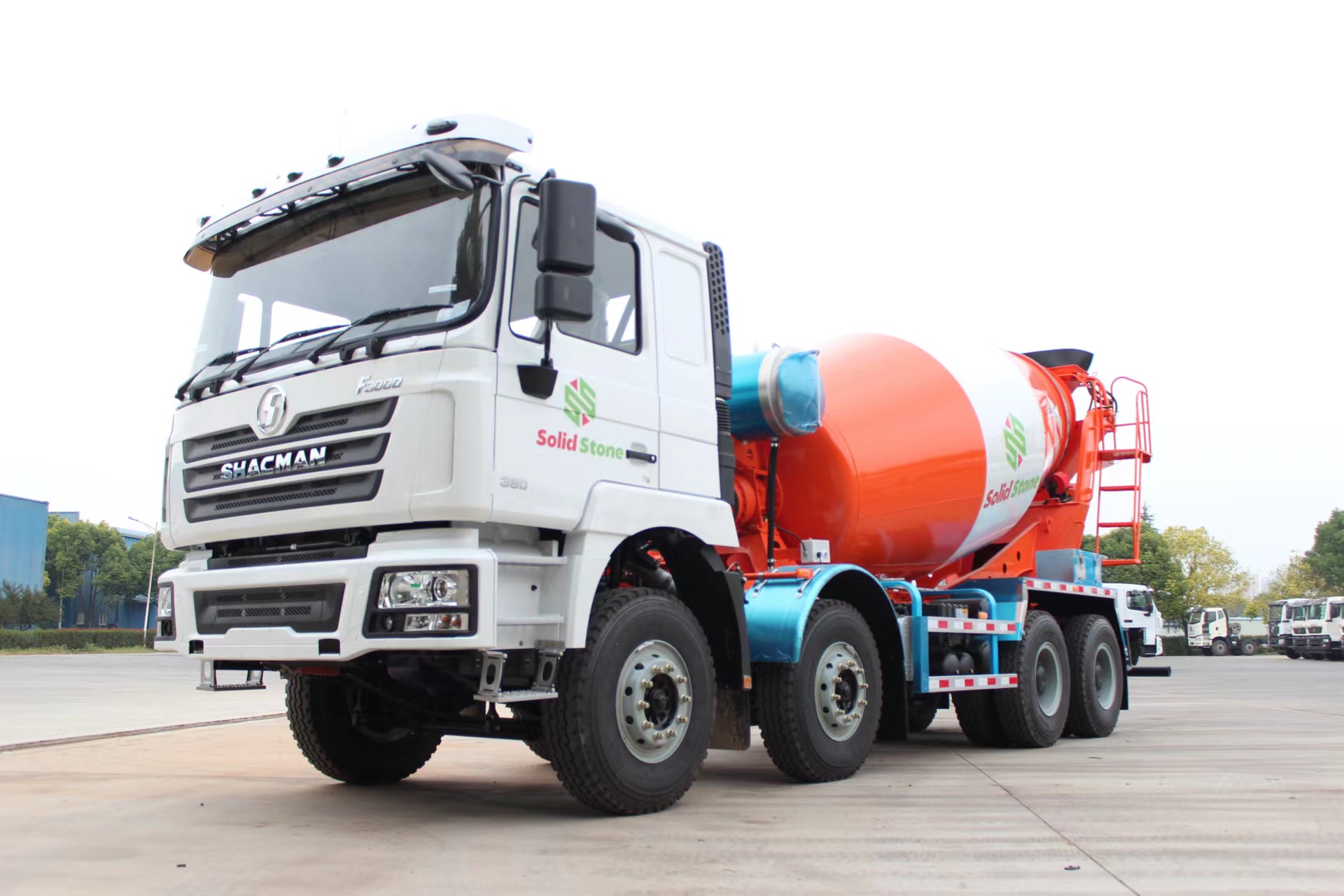

EuroII Shacman Mixer Truck F3000 Concrete Mixer Machine Truck 8x4 380 White

SHACMAN F3000 Mixer Truck 8x4 380 EuroII white


Detailed Product Description
Model:SX5315GJBDT306
Drive type: 8x4
Weight: Gross Vehicle Weight≤60
Engine Brand: WEICHAI
Engine Model:WP10.380E22+PTO
Engine Power/(kw/HP): 280kw / 380Hp
Gear box Brand: FAST


Concrete Mixer Truck Parameters

ModelSX5315GJBDT306
Drive type8x4
WeightGross Vehicle Weight≤60
DimensionsWheelbase/(mm)1800+2975+1400 mm
PerformanceMaximum speed/(km/h)50~65/90
Ground clearance>314
EngineBrandWEICHAI
ModelWP10.380E22+PTO
Power/(kw/HP)280kw / 380Hp
Maximum torque / (N.M)/rpm1600 N·M
Displacement/(L)9.726 L
Emission standardEuro/ II
Gear boxBrandFAST
ModelRTD-11509C
ClutchTypeφ430 Diaphragm spring clutch
CoolingTypeDomestic heat sink
Air inletTypeOrdinary air filter
BrakesTypeDrum brake
Service brakeDouble circuit air brake
Park brakeRear wheel spring brake
Auxiliary brakeWEVB engine exhaust brake
SteeringTypeZF8098 technology, circulating ball steering machine
ChassisTypeParallel trapezoidal frame with variable section
Dimensions/(mm)850×300(8+7)
SuspensionFrontMulti-layer plate spring 4 main plates + 4 U-shaped bolts
RearMulti-layer plate spring 4 main plates + 4 U-shaped bolts
AxlesBrandHANDE
Front axle9.5T front axle MAN technology
Rear axle16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
TiresType12.00R20
Fuel tankTank capacity/(L)400L Aluminum tank
ElectricsType24V
Battery165Ah Maintenance-free battery
CabTypeSHACMAN F3000 Medium-length flat cab
EquipmentHydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, F3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.

Advantages

  1. Powerful Engine: The 380HP engine provides robust power and torque, enabling the truck to handle heavy loads of concrete and other materials with ease.
  2. High Load Capacity: The 8x4 configuration (eight wheels with four driven wheels) offers excellent load-carrying capacity, making it suitable for transporting significant amounts of concrete and aggregates in a single trip.
  3. Effective Mixing Capability: Equipped with a mixer drum, the truck can efficiently mix concrete on-site, reducing the need for separate mixing equipment and minimizing downtime.

Detailed Image


FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
