1/2"-4" Hot Dipped Galvanized EMT Conduit For HDG Electrical Metallic Tubing

Product Description

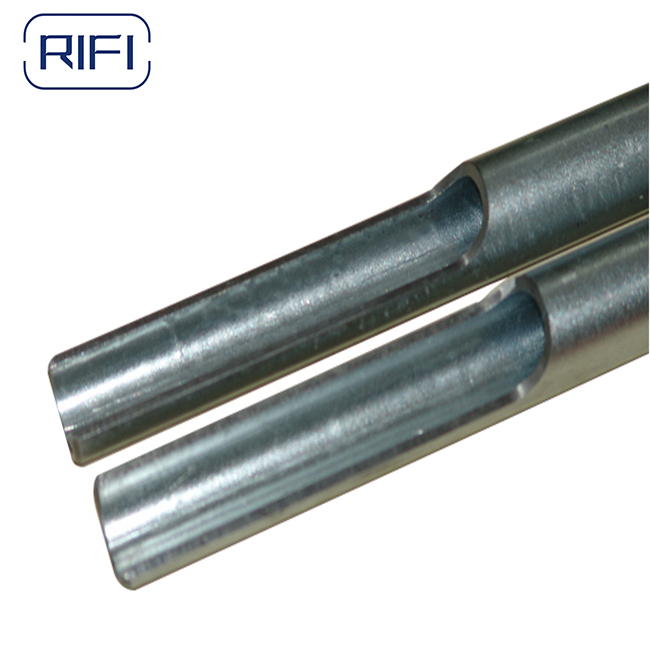

Product Name: Hot Dip Galvanized EMT conduit for Electrical Metallic Tubing

Electrical Metallic Tubing (EMT), also known as thin-wall conduit, is a type of electrical conduit used for the protection and routing of electrical wires and cables in buildings and other structures. EMT conduit is made of steel and is known for its lightweight and easy-to-bend characteristics

Place of origin:China

Material:Carbon Steel

Surface Finish:Pre-galvanized , Hot Dip Galvanized

Size : 1/2"-4"

Length : 10ft(3.05m) / or as customer request length

Thickness :As standard thickness or as customer request thickness

Function:protect and route cables and conductors

Specifications

1/2"-4" Hot Dipped Galvanized EMT Conduit For HDG Electrical Metallic Tubing

Trade Size	Outside Diameter		Wall Thickness		Length
	inch	mm	inch	mm	feet	mm
1/2''	0.706	17.93	0.042	1.07	10	3050
3/4''	0.922	23.42	0.049	1.25	10	3050
1''	1.163	29.54	0.057	1.45	10	3050
1-1/4''	1.510	38.35	0.065	1.65	10	3050
1-1/2''	1.740	44.20	0.065	1.65	10	3050
2''	2.197	55.80	0.065	1.65	10	3050
2-1/2''	2.875	73.03	0.072	1.83	10	3050
3''	3.500	88.90	0.072	1.83	10	3050
3-1/2''	4.000	101.60	0.083	2.11	10	3050
4''	4.500	114.30	0.083	2.11	10	3050

Hot dip galvanized EMT CONDUIT

Application
EMT full name is Electrical Metallic Tubing, used as an unthreaded steel raceway for prote,usually used for outdoor wire protection,indoor trim.EMT conduit is suitable for both exposed and concealed electrical installations. It is commonly used in residential, commercial, and industrial settings to protect electrical wiring from physical damage, moisture, and other environmental factors.

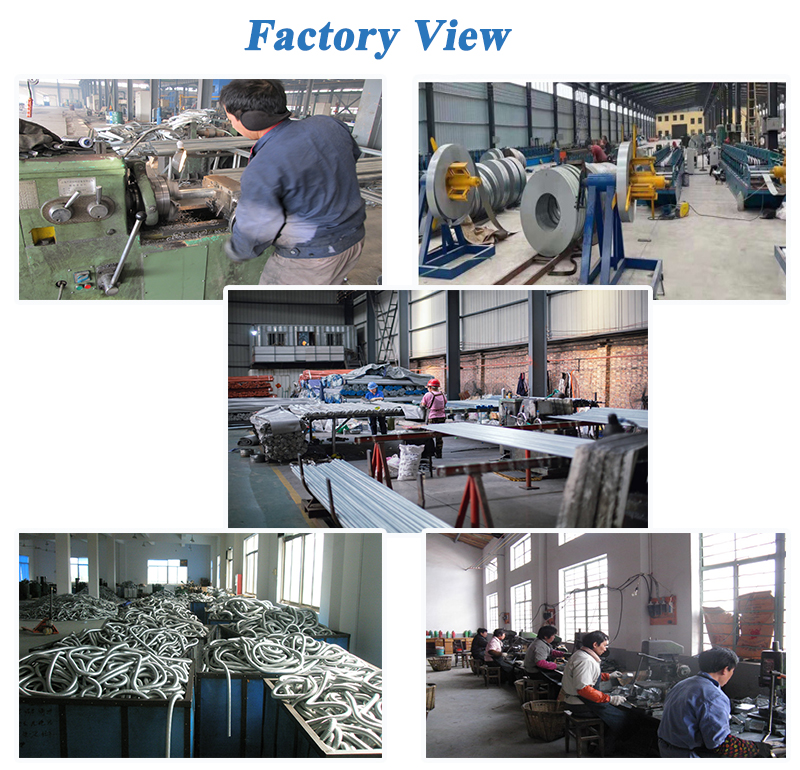

Factory View

Why choose us?
1. We are China professional supply of Electrical Pipe,Strut Channel and Fittings.
2. 100% QC inspection before Shipment.
3. Best Quality & Best Service with Competitive price.Focused on Electrical Metallic conduits, fittings, C channels, and power bridge systems since 2016. Our main products are EMT, IMC, RSC steel conduits, aluminum conduits, stainless steel conduits, and fittings. C channel, Electrical junction box, flexible conduit, etc.
4.Our products widely exporting to many countries, such as the USA, Canada, Italy, Middle East, South Asian, etc. With our good quality and reputation. Warmly welcome all customers and friends to contact and cooperate with us.
5. OEM : To bring you with better profits, we can also pack the products with your own brand to avoid the direct price competition.

INTRODUCTION

Changsha Elewell Import and Export Co., Ltd. is located in the beautiful City, Changsha ,Hunan Province. We are professional supplier in electrical conduit and fitting line, strut channel ,electrical cable tray and support line . Through the efforts of the whole company, we have become a strong electrical conduits and fittings manufacturer and exporter. Currently, our products have been distributed to many countries all over the world, such as, South America, North America, Central America, Mid east, Southeast Asia.

Over the years, we have taken " Honest, High Quality, Creating value for customers" as our business philosophy, and have won wide acclaim in the international market for our excellent quality and reasonable pricing.

Our main product as below：

US STANDARD METAL CONDUIT AND FITTINGS

1) EMT CONDUIT and fittings : pre-galvnaized /hot dip galvanized electrical metallic conduit ; EMT elbow; set scew zinc/steel EMT connector and coupling ; one hole stap , two hole strap, Service Entrance Caps, Conduit Bender and so on .

2）IMC /RSC conduits and fittings: Intermediate Metal Conduit, Rigid Metal Conduit, Conduit Elbow, Connector and Coupling, One Hole Strap and Two Hole Strap, Service Entrance Caps, Reducing Bushing, Nipple, Locknut, Conduit Bushing, Watertight Hub and so on .

3）Steel Electrical Conduit Box and covers：4x4" Square Box, 4" Octagonal Box, 4x2" Handy Box, 4-11/16x4-11/16" Square Box.

4) Weatherproof boxes and cover : One gang , two gang and round weatherproof boxes and covers .

BS STANDDARD CONDUIT AND FITTINGS

5)BS GI conduit and fittings : BS4568/ EN 61386 conduit class 3 and class 4 ,BS31 GI Conduit class 3 and class 4 ; malleable iron round junction box and cover, space bar saddle , couplings ; BS switch steel boxes.

FLEXIBLE CONDUIT AND FITTINGS

6）Flexible Conduit and Fittings: Flexible galvanized Steel Conduit, PVC Coated Flexible Conduit, Liquid Tight flexible conduit, Non metallic liquid tight flexible conduit ; Squeeze Connector, Liquid Tight Connector, male flexible connector , pvc straight and angle connector.

STRUT CHANNEL AND FITTINGS

7) Strut Channel and Fittings: 41x41 ,41x21 pre-galvanized / hot dip galvanized Unistrut Channel, Spring Nut, Thread Rods, Strut Clamp, Cushioned Clamp, Conduit Hanger, Clevis Hanger, Sprinkler Clamp, Pipe Clamp, Pipe Clamp with Rubber.

ELECTRICAL CABLE TRAY

8）Electrical cable tray and fittings :GI , HDG , Aluminum , FRP, stainless steel perforated cable tray , cable ladder , cable trunking , wire mesh cable tray and cable trunking .

CABLE TIES

9）Stainless cable tie and Nylon cable tie : SS304/SS316 ball self lock cable tie , ladder type stainless steel cable tie , L type stainless steel locking tie, Releasable stainless cable tie, stainless steel band , buckle, cable tie tool , marker plate and nylon cable tie .
