Product Description

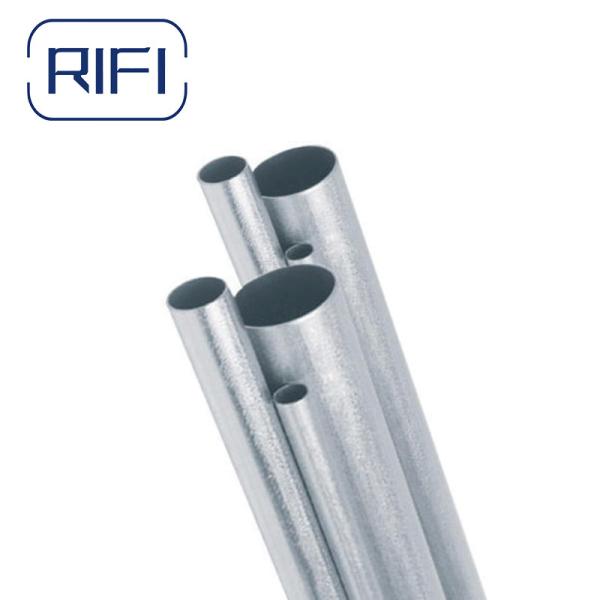

3/4 Inch UL Standard Galvanized EMT Conduit Pipe (Electrical
Metallic Tubing) Pre-galvanized /Hot-Dipped Galvanized
Electrical Metallic Tubing (EMT), also known as thin-wall conduit, is a type of electrical conduit used for the protection and routing of electrical wires and cables in buildings and other structures. EMT conduit is made of steel and is known for its lightweight and easy-to-bend characteristics.
1. Material: EMT conduit is typically made from steel, which can be galvanized for corrosion resistance. Some versions of EMT conduit are also available in aluminum.
2. Size: EMT conduit comes in various sizes, typically ranging from 1/2 inch to 4 inches in diameter. The choice of size depends on the specific electrical wiring requirements of the installation.
3. Wall Thickness: EMT conduit has a thinner wall compared to other types of conduit like rigid metal conduit (RMC) or intermediate metal conduit (IMC). The thinner wall makes it more lightweight and easier to bend.
4. Bendability: EMT conduit is known for its flexibility and ease of bending. It can be bent by hand or with specialized tools to navigate corners and obstacles during installation.
Specification
3/4 Inch UL Standard Galvanized EMT Conduit Pipe (Electrical Metallic Tubing) Pre-galvanized /Hot-Dipped Galvanized
| Trade Size | Outside Diameter | Wall Thickness | Length | Packing | |||
| inch | mm | inch | mm | feet | mm | Bundle | |
| 1/2" | 0.706 | 17.93 | 0.042 | 1.07 | 10 | 3050 | 20pcs |
| 3/4" | 0.922 | 23.42 | 0.049 | 1.25 | 10 | 3050 | 15pcs |
| 1" | 1.163 | 29.54 | 0.057 | 1.45 | 10 | 3050 | 10pcs |
| 1-1/4" | 1.510 | 38.35 | 0.065 | 1.65 | 10 | 3050 | 5pcs |
| 1-1/2" | 1.740 | 44.20 | 0.065 | 1.65 | 10 | 3050 | 5pcs |
| 2" | 2.197 | 55.80 | 0.065 | 1.65 | 10 | 3050 | 5pcs |
| 2-1/2" | 2.875 | 73.03 | 0.072 | 1.83 | 10 | 3050 | 1pcs |
| 3" | 3.500 | 88.90 | 0.072 | 1.83 | 10 | 3050 | 1pcs |
| 3-1/2" | 4.000 | 101.60 | 0.083 | 2.11 | 10 | 3050 | 1pcs |
| 4" | 4.500 | 114.30 | 0.083 | 2.11 | 10 | 3050 | 1pcs |
| Tolerances:Length±0.25"(6.35mm),Outside Diameter1/2"through2"±0.005"(0.13mm),2-1/2"through4"±0.016"(0.41mm) | |||||||
| Note:if you need different thickness or length,please contact. | |||||||
