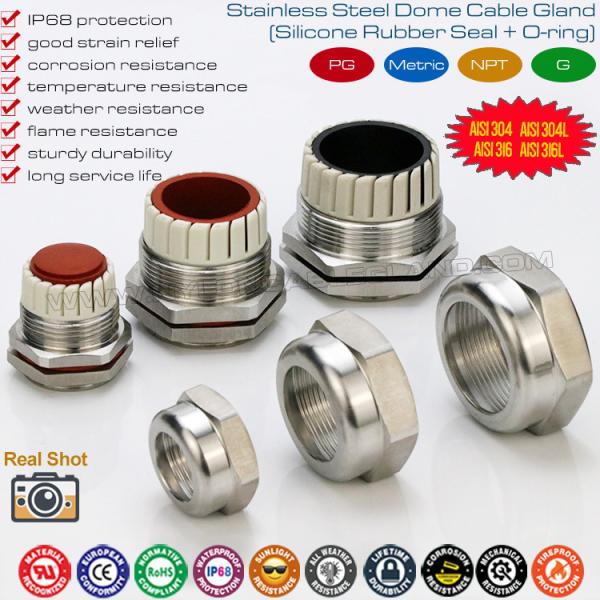

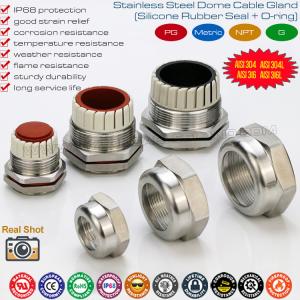

IP68 Hermetic Cable Glands Sealing Connectors Stainless Steel AISI 304 & AISI 316 with PG or Metric Thread

Categories Stainless Steel Cable Glands
Brand Name: Sino Cable Gland Factory
Model Number: NPT, Metric series
Certification: CE, ROHS, RACH, IP68
Place of Origin: Zhejiang, China
MOQ: 100 pieces
Price: at very competitive prices from direct factory
Payment Terms: T/T, L/C, Western union
Supply Ability: 3000000 pieces / month
Delivery Time: normally 10-15 days
Packaging Details: standard export packing (special packing also available on request)
Material: NBR, EPDM, SILICONE, Viton for sealing parts
Size: Full sizes
Protection Level: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Product name: Stainless Steel Wateproof Cable Gland
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IP68 Hermetic Cable Glands Sealing Connectors Stainless Steel AISI 304 & AISI 316 with PG or Metric Thread

Description & applications:

With advantages of high impact resistance, wide clamping range, optimum strain relief, high sealing performance & resistant to sunlight, IP68 Hermetic Cable Glands Sealing Connectors Stainless Steel AISI 304 & AISI 316 with PG or Metric Thread have the ability of chemical resistance, corrosion resistance and anti-aging, and it also has the ability of high breaking tensile strength, high tenacity and optimum water resistance. Besides, such cable glands from our factory have long service time.

It is anti-salt, anti-dust, its resistance to acid, base, alcohol, oil, grease and common solvent is very strong. Besides, it does well in insulation, it is secure and safe.
They are popular in the application of electrical and electronic technologies, telecommunications, wireless networking ODUs, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, machineries, meters and instruments, etc.
Product details:
No.ItemDescription
1Place of origin:Zhejiang, China
2Manufacturer:Yueqing Sino Cable Gland Factory
3Product name:IP68 Hermetic Cable Glands Sealing Connectors Stainless Steel AISI 304 & AISI 316 with PG or Metric Thread
4Models:

PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48.

M8, M10, M12, M14, M16, M18, M20, M22, M24, M25, M27, M28, M30, M32, M35, M37, M40, M42, M48, M50, M52, M63, M72, M75, M80, M90, M100, M110, M120, M150.

5Material:Stainless Steel SS304, SS304L, SS316 or SS316L
6Seal & O-ring:Buna-N (also available in EPDM rubber, rubber or Silicone rubber)
7Plastic insert:polyamide 66 approved by UL, 94V-2 (also available in 94V-0)
8Surface treatment:polishing
9Colors:metallic silver
10Features:

provide excellent strain relief for cables and provide IP68 protection against the ingress of dirt, water and other liquids.

anti-oxidation, resistant to aging and corrosion, resistant to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc.

11Certifications:CE, ROHS, REACH, IP68
12Protection:IP68 (when the cable diameter is within the clamping range and mount the O-ring)
13Thread standard:according to ANSI/ASME B1.20.1 & EN 60423
14Working temperature:

static:-40 ℃ to 100 ℃, short-term:120 ℃;

Dynamic:-20 ℃ to 80 ℃, short-term:100 ℃ (nylon part & rubber part)

non-magnetic, temperature range: -196 ℃ ~ 800 ℃ (stainless steel part)
15Quality grade:high quality
16OEM services:available (special cable glands can be customized as per customer's original samples or technical drawings)
17Supply capability:100,000 pieces per month
18Price advantage:lowest prices from direct factory
19Minimum quantity:negotiable
20Sample availability:yes, free samples are available upon request
21Delivery time:7-10 days after confirmation of orders
22Payment terms:T/T, Western Union, Paypal, Cash, L/C at sight
23Delivery terms:EXW, FCA, FOB, CIF, CNF
24Shipping ways:by courier (EMS, TNT, DHL, UPS or FEDEX)
by air (Shanghai / Ningbo)
by sea (Shanghai / Ningbo)
25Export packing:100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label)
100 pieces per box, 50 pieces per box (white box or OEM color box)
other special packings also available on request
