| Categories | Stainless Steel Cable Glands |
|---|---|
| Brand Name: | Sino Cable Gland Factory or OEM |
| Model Number: | PG series |
| Certification: | CE, RoHS, REACH, IP68 |
| Place of Origin: | Zhejiang, China |
| MOQ: | 100 pieces |
| Price: | at the best prices from direct factory |
| Payment Terms: | T/T, L/C, Western union, Cash |
| Supply Ability: | 500,000 pieces / month |
| Delivery Time: | normally 8-12 days |
| Packaging Details: | export packing (special packing is also available on request) |
| Material: | Stainless Steel Grade 304, 304L, 316 or 316L |
| Clamping claw: | UL-certified PA6 (Nylon 6), 94V-2 |
| Seal & O-ring: | NBR, EPDM, Silicone, Viton rubber |
| Model: | PG7 - PG48 |
| Color: | Metallic silver |
| Protection: | IP68 and EMC |
| PG thread: | As per the standard DIN40430 |
| Advantages: | Resistant to weather, corrosion, high & low temperatures |
| Company Info. |
| Sino Cable Gland Factory |
| Verified Supplier |
| View Contact Details |
| Product List |
Description & Applications:

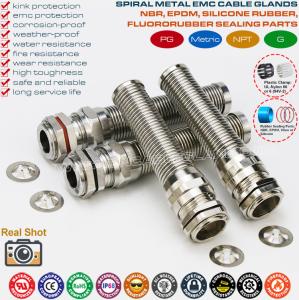

EMC Version 304 or 316 Grade Stainless Steel Cable Glands PG7~PG48 with Spiral Flexible Strain Relief Protector come with an additional spiral spring which can prevent cables from excessive bending and breakage and help to extend cable life.
With an intermediate brass contact attached, spiral stainless steel EMC cable glands with bend & flex protector can provide 360° electromagnetic interference. When the shielded cables pass the cable gland, the intermediate brass contact will firmly contact the shield braid in the cable to lead the interference electromagnetic wave to the ground wire, thus the electromagnetic interference can be evacuated.
The stainless steel spiral cable glands are available in brass or stainless steel AISI304, AISI316 or AISI 316L with Metric, PG, NPT and G threads or elongated threads.
The stainless steel EMC cable glands with kink and twist protector have the ability of chemical resistance, corrosion resistance and heat resistance, and they also have the ability of high tensile strength, high tenacity, good water resistance, excellent bending protection and long service time. They are resistant to dust, dirty, seawater, acid, alcohol, oil, grease and common solvent. They are popular in the applications of shipbuilding, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.
| No. | Item | Description |
| 1 | Place of origin: | Zhejiang, China |
| 2 | Manufacturer: | Yueqing Sino Cable Gland Factory |
| 3 | Product name: | EMC Version 304 or 316 Grade Stainless Steel Cable Glands PG7~PG48 with Spiral Flexible Strain Relief Protector |
| 4 | Model: | PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 |
| 5 | Material: | Stainless Steel AISI304, AISI304L, AISI316 or AISI316L |
| 6 | Seal & O-ring: | NBR (also available in EPDM rubber, Silicone rubber or rubber) |
| 7 | Plastic insert: | Polyamide 66 approved by UL, 94V-2 (also available in 94V-0) |
| 8 | Surface treatment: | Polishing |
| 9 | Colors: | Metallic silver |
| 10 | Features: | provide excellent bending protection and IP68 waterproof protection against the ingress of dirt, water and other liquids. anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc. |
| 11 | Certifications: | CE, ROHS, REACH, IP68 |
| 12 | Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| 13 | Thread: | According to DIN 40430 |
| 14 | Temperatures: | Static:-40 ℃ to 100 ℃, short-term:120 ℃ (nylon parts & rubber parts) |
| Dynamic:-20 ℃ to 80 ℃, short-term:100 ℃ (nylon parts & rubber parts) | ||
| 15 | Quality grade: | High quality |
| 16 | OEM service: | Yes, available |
| 17 | Supply capacity: | 500,000 pieces each month |
| 18 | Price advantage: | Most competitive prices from direct factory |
| 19 | Minimum quantity: | Yes, negotiable |
| 20 | Sample availability: | Free samples are available on request |
| 21 | Delivery time: | 7-10 days after confirmation of orders |
| 22 | Payment terms: | T/T, Western Union, Cash, L/C |
| 23 | Delivery terms: | EXW, FCA, FOB, CIF, CNF |
| 24 | Shipping methods: | by courier (EMS, TNT, DHL, UPS or FEDEX) |
| by air (Shanghai or Ningbo) | ||
| by sea (Shanghai or Ningbo) | ||
| 25 | Export packing: | 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label) |
| 100 pieces per box, 50 pieces per box (white box or OEM color box) | ||
| other special packings also available on request |
