Ferrule Wire Rope Mesh Net Flexible Stainless Steel Cable Netting For Building

Categories Wire Rope Mesh
Brand Name: CHANT
Model Number: CHANT-C-1025
Certification: CE ISO9000
Place of Origin: CHINA
MOQ: 10m2
Price: Usd 8.8-20.8/m2
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000m2/week
Delivery Time: 5-8 days
Packaging Details: Wooden Case
Material: Stainless Steel Wire
Hole Size: 25*25mm-300*300mm
Cable Diameter: 1.2mm-6.0mm
Product Namen: Rope Mesh Fence Flexible Stainless Steel Cable Netting For Building
Characteristic: Anti-corrosion Non-rusting Anti Acid And Alkali
Length: Customized
Width: Customized
application: Protective, Fall Prevention
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Ferrule Wire Rope Mesh Net Flexible Stainless Steel Cable Netting For Building


Rope Mesh Fence Flexible Stainless Steel Cable Netting For Building


The flexible Stainless Steel Diamond Rope Mesh For Playground ferrule type is rhombus mesh, has excellent flexible performance. has protective and safety effects.


The specification as follows:


Material:stainless steel 304, 304L, 316, 316L

Cable Structure:7x7 and 7x19.

Cable Diameter:1/8", 3/32", 1/16" 1/12", and 3/64"

Mesh Size:1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4".

Height: general 0.5-30meter or customized.
Length: general 0.5-30meter or customized.
Shape: There are irregular shape, triangle parallelogram trapezoid etc.



Rope Constructin


Rope Diameter


Opening Size

Breaking Force
InchmmInchmmKN
7 × 191/83.24.7" × 4.7"120 × 1207.38
7 × 191/83.24" × 4"102 × 1027.38
7 × 191/83.23.6" × 3.6"90 × 907.38
7 × 191/83.23" × 3"76 × 767.38
7 × 191/83.22" × 2"51 × 517.38
7 × 73/322.44" × 4"102 × 1024.18
7 × 73/322.43.6" × 3.6"90 × 904.18
7 × 73/322.43" × 3"76 × 764.18
7 × 73/322.42.4" × 2.4"60 × 604.18
7 × 73/322.42" × 2"51 × 514.18
7 × 75/6423" × 3"76 × 763.17
7 × 75/6422.4" × 2.4"60 × 603.17
7 × 75/6422" × 2"51 × 513.17
7 × 75/6421.5" × 1.5"38 × 383.17
7 × 71/161.63" × 3"76 × 762.17
7 × 71/161.62" × 2"51 × 512.17
7 × 71/161.61.5" × 1.5"38 × 382.17
7 × 71/161.61.2" × 1.2"30 × 302.17
7 × 71/161.61" × 1"25 × 252.17
7 × 73/641.22" × 2"51 × 511.22
7 × 73/641.21.5" × 1.5"38 × 381.22
7 × 73/641.21.2" × 1.2"30 × 301.22
7 × 73/641.21" × 1"25 × 251.22

The Stainless Steel wire rope Ferruled Mesh, the wire ropes are neither knotted nor crossed, it is a construction based on stainless steel wire ropes that lie parallel in pairs connected and reciprocally curved by stainless steel ferrules. Rope Mesh Description is custom manufactured to in widths and lengths to suit your balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.

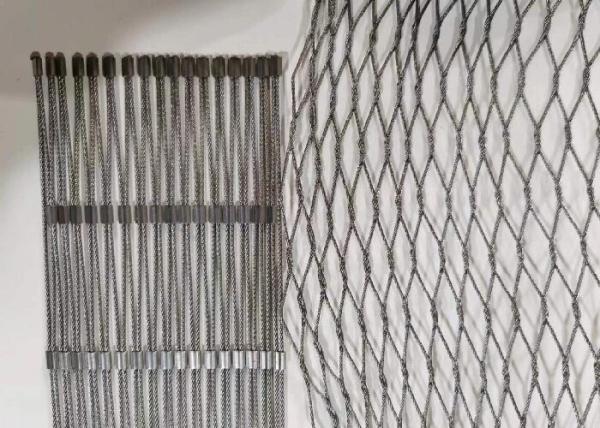

Details photos:

Features:


High Flexibility

High Strength

Good Softness

Excellent Rust-Resistance,Recyclable

Outstanding Grand Appearance

Maintenance-Free and Environmentally Friendly


Application


Cable rope mesh is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as Slope Protection Rope Mesh, Zoo Mesh, Green Wall Rope Mesh, Decoration Mesh, Balustrade Mesh, Safety rope mesh, Suspension Bridge Railing Mesh, Anti-theft Backpack Protector.
