Brand Name: | CHANT |
Model Number: | QT-F 1005 |
Certification: | CE ISO9000 |
Place of Origin: | China |
MOQ: | 5 m2 |
Price: | Usd 4.2-28 /m2 |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 8000m2/week |
Delivery Time: | 5-8 days |
Packaging Details: | Wooden Case |
Product Name: | Wire Rope Mesh |
key Words: | Wire Rope Mesh ,Safety ,Secure |
width: | Customized |
Height: | Customized |
Material: | Sus 304 316 316L |
Wire Diameter: | 1.2-6.0 |
Cable Structures: | 7*7 7*19 |
Application: | Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Cages |

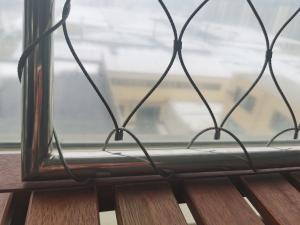

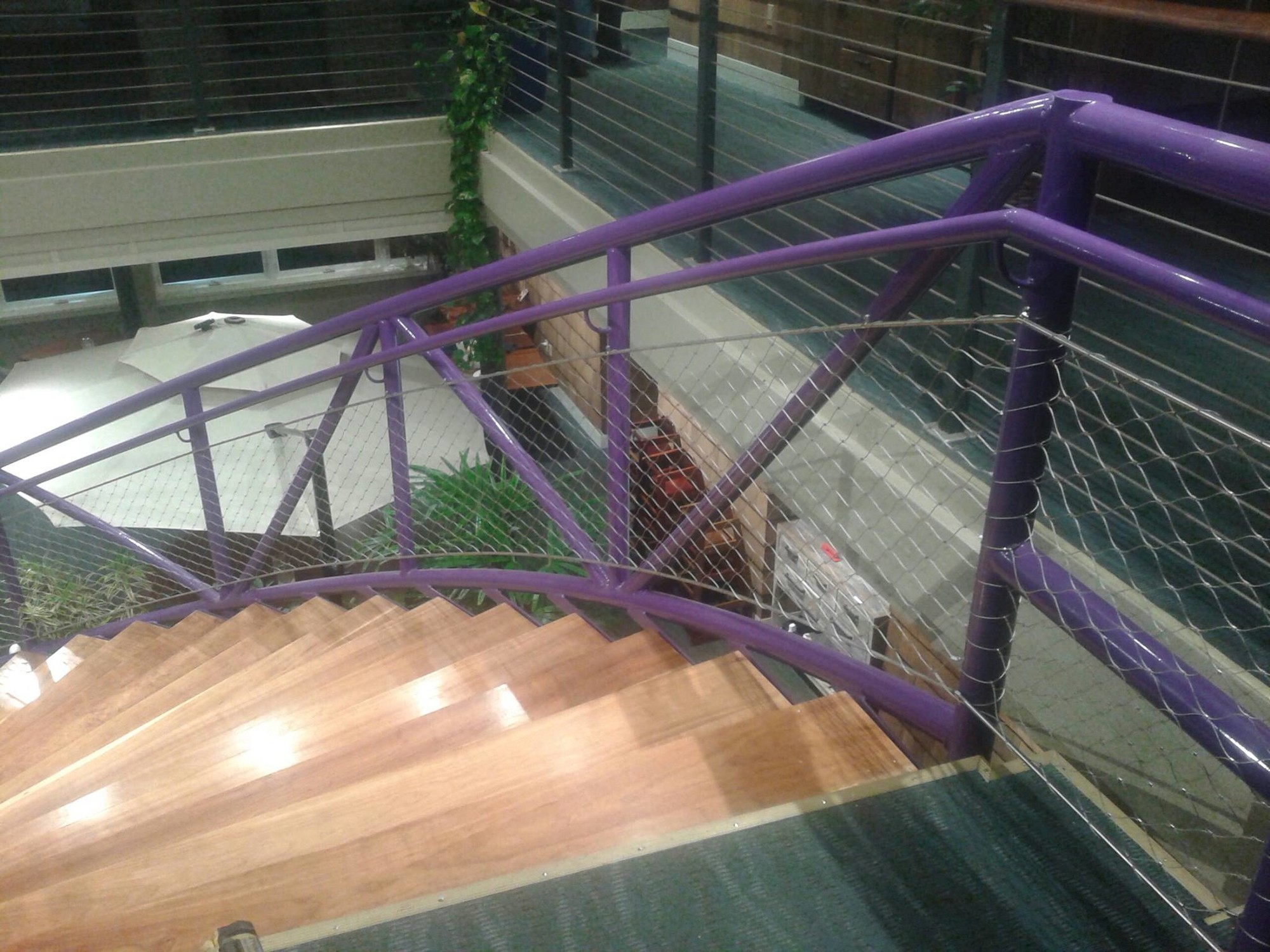

High Strength Stainless steel wire Rope Mesh For Balustrade Or Railing
1:About Stainless steel wire rope mesh
Rope Constructin | Rope Diameter | Opening Size | Breaking Force | ||
Inch | mm | Inch | mm | KN | |
7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
3:Produt features:
Smooth surface,unique lines,the overall structure strong,generous appearance.Good toughness,strong clmbing ability,impact resistance,it is not easy damaged by outside force impact deformation,has excellent buffer.Product good transport installation,light connect fully,use long time,can and blends into the surrounding enviironment,hav played a very good decorative and protective effect.
3:Application:
4: Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by
sea.
![]() |
